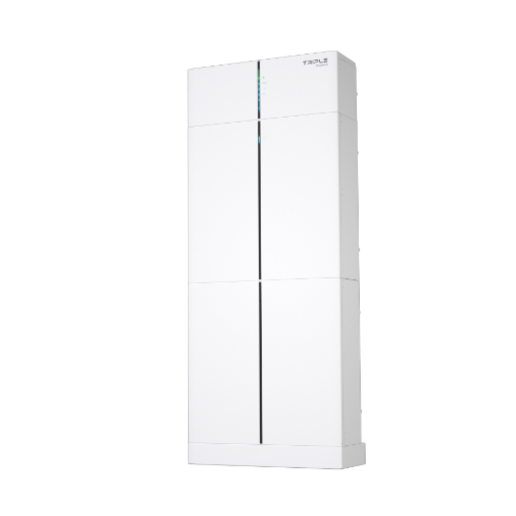

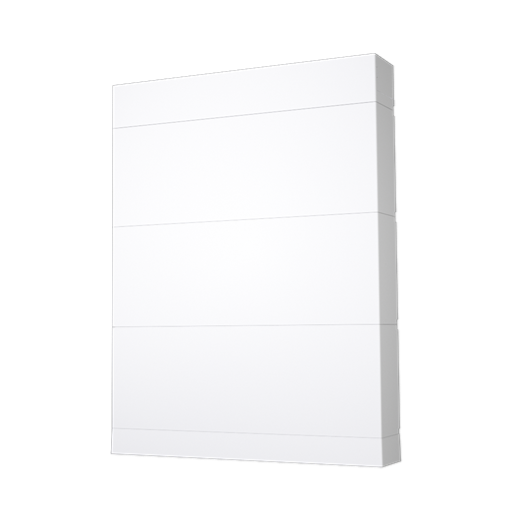

Residential Solar Battery System

Introduction

SolaX residential batteries provide efficient, scalable, and long-lasting energy storage for homes, maximizing solar self-consumption and reducing grid dependency. Featuring advanced LFP technology and an intelligent Battery Management System (BMS), they ensure safety, high efficiency, and extended lifespan.

Ultra-Long Lifespan & Cost Efficiency

With an impressive lifespan of over 6000 cycles, this battery significantly reduces replacement costs, making it a high-return investment. Designed for durability, it ensures long-term reliability without performance degradation.

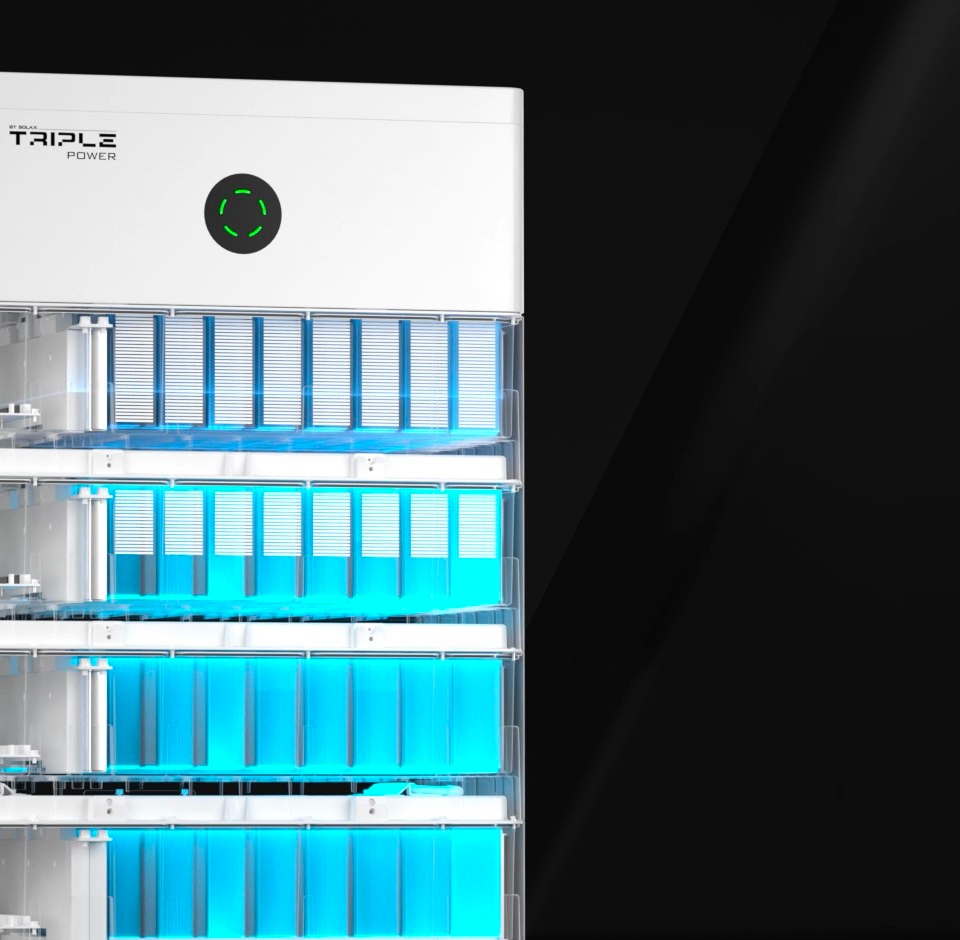

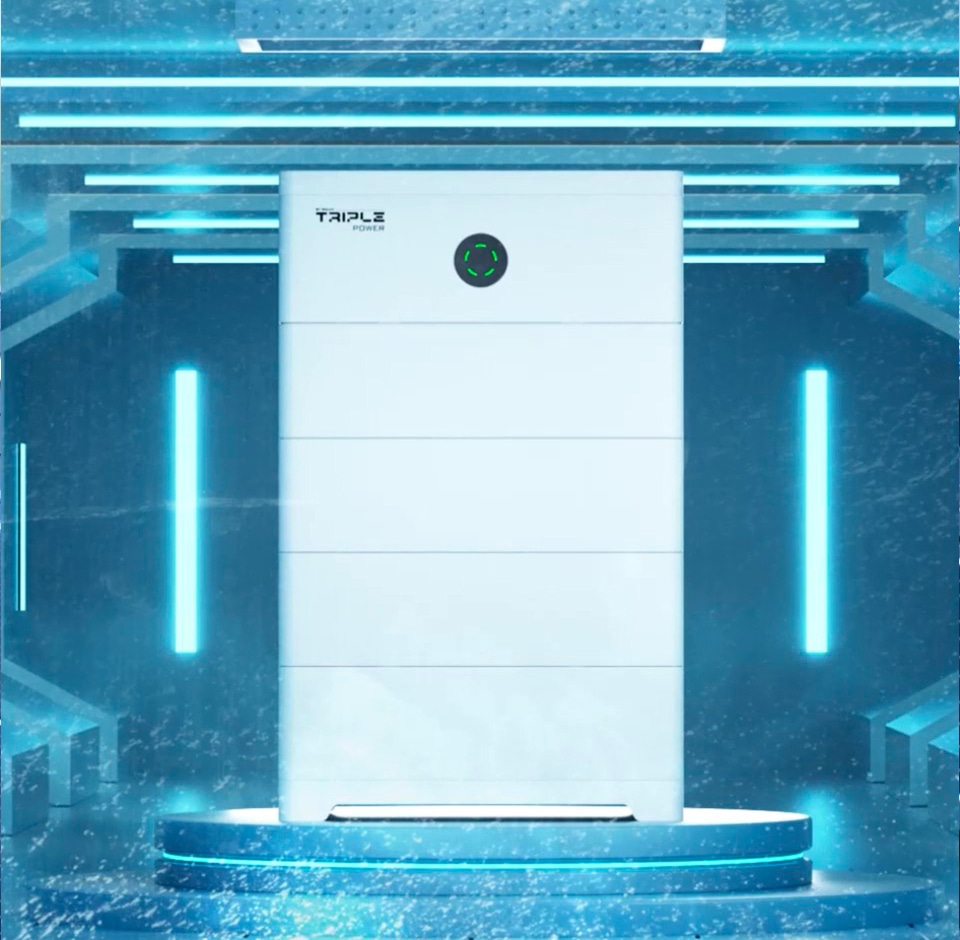

Enhanced Safety & Environmental Adaptability

Built with LFP chemistry, the battery offers superior thermal stability, minimizing any overheating or fire risks. An integrated heating function enables low-temperature operation, ensuring continuous performance in extreme cold environments.

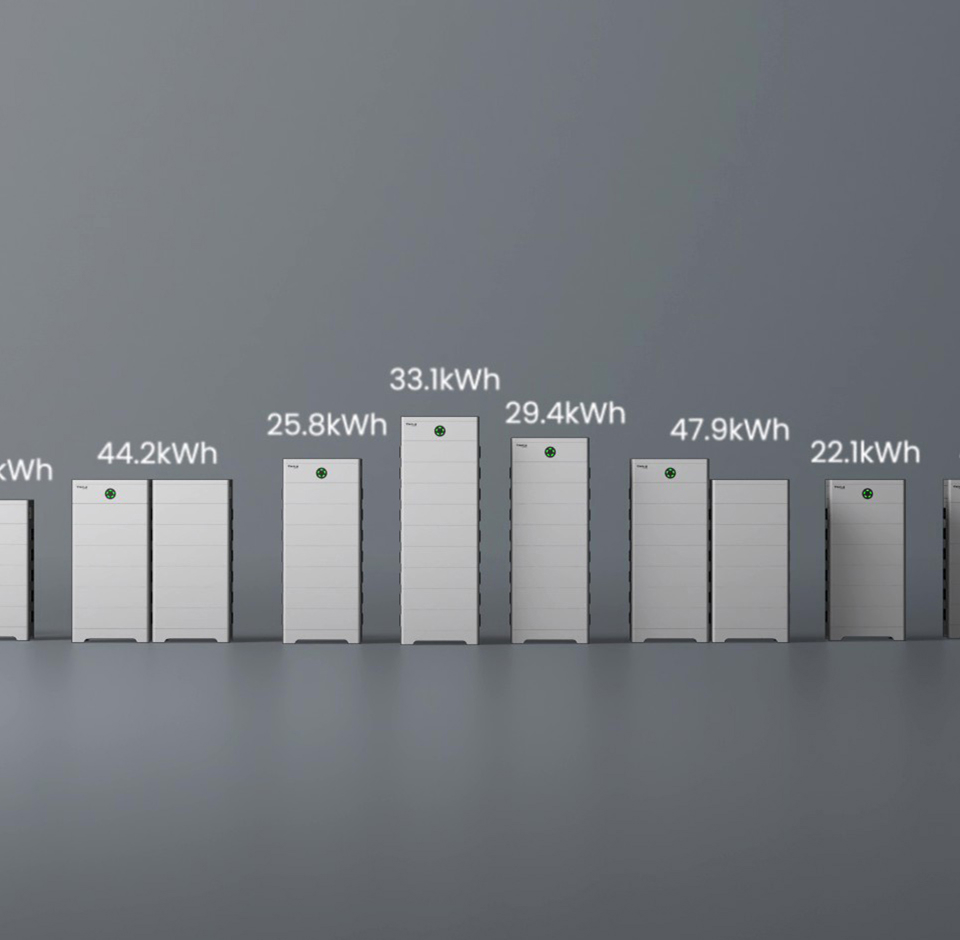

Easy Installation & Flexible Scalability

Designed for quick and hassle-free installation, the system is modular and expandable, allowing users to scale capacity according to their energy needs. This makes it suitable for various home and business applications.

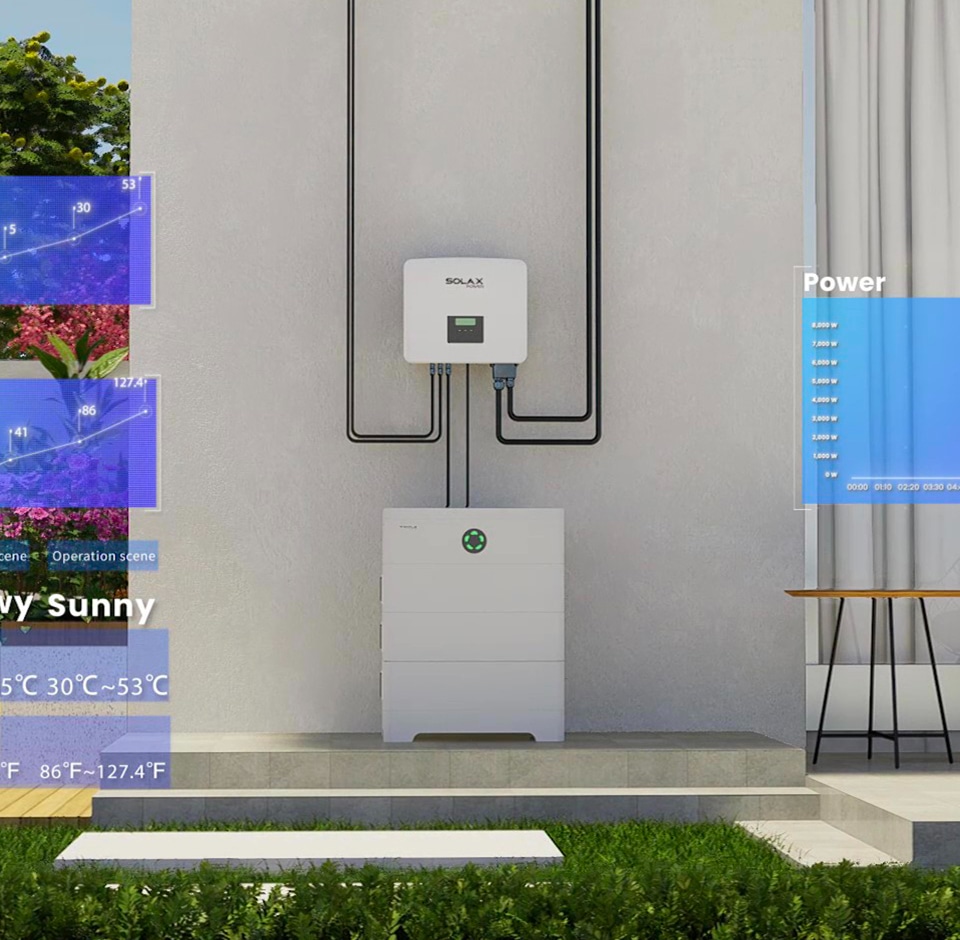

Intelligent Remote Monitoring & Maintenance

With smart diagnostics, remote firmware upgrades, and real-time monitoring, users can efficiently manage the system with minimal maintenance effort. This ensures optimal performance and proactive issue resolution, reducing downtime and service costs.

Product Parameters

T-BAT HS7.2
T-BAT HS10.8
T-BAT HS14.4
T-BAT HS18.0
T-BAT HS21.6
T-BAT HS25.2
T-BAT HS20.0
T-BAT HS22.5
T-BAT HS25.0
T-BAT HS27.5
T-BAT HS30.0
T-BAT HS32.5

T-BAT HS7.2
- SYSTEM DATA

  Number of modules 2 Modules
  Nominal energy
  7.3 kWh
  Nominal voltage
  102.4 d.c. V
  Max. charge / discharge power
  5.1 kW
- BATTERY MODEL

  Battery model TP-HS36
  Dimensions (W x H x D) 510 × 152 × 365 mm
  Net weight 34 (±1) kg
  Battery type LFP
T-BAT HS10.8
- SYSTEM DATA

  Number of modules 3 Modules
  Nominal energy
  11.0 kWh
  Nominal voltage
  153.6 d.c. V
  Max. charge / discharge power
  7.6 kW
- BATTERY MODEL

  Battery model TP-HS36
  Dimensions (W x H x D) 510 × 152 × 365 mm
  Net weight 34 (±1) kg
  Battery type LFP
T-BAT HS14.4
- SYSTEM DATA

  Number of modules 4 Modules
  Nominal energy
  14.7 kWh
  Nominal voltage
  204.8 d.c. V
  Max. charge / discharge power
  10.2 kW
- BATTERY MODEL

  Battery model TP-HS36
  Dimensions (W x H x D) 510 × 152 × 365 mm
  Net weight 34 (±1) kg
  Battery type LFP
T-BAT HS18.0
- SYSTEM DATA

  Number of modules 5 Modules
  Nominal energy
  18.4 kWh
  Nominal voltage
  256.0 d.c. V
  Max. charge / discharge power
  12.8 kW
- BATTERY MODEL

  Battery model TP-HS36
  Dimensions (W x H x D) 510 × 152 × 365 mm
  Net weight 34 (±1) kg
  Battery type LFP
T-BAT HS21.6
- SYSTEM DATA

  Number of modules 6 Modules
  Nominal energy
  22.1 kWh
  Nominal voltage
  307.2 d.c. V
  Max. charge / discharge power
  15.3 kW
- BATTERY MODEL

  Battery model TP-HS36
  Dimensions (W x H x D) 510 × 152 × 365 mm
  Net weight 34 (±1) kg
  Battery type LFP
T-BAT HS25.2
- SYSTEM DATA

  Number of modules 7 Modules
  Nominal energy
  25.8 kWh
  Nominal voltage
  358.4 d.c. V
  Max. charge / discharge power
  17.9 kW
- BATTERY MODEL

  Battery model TP-HS36
  Dimensions (W x H x D) 510 × 152 × 365 mm
  Net weight 34 (±1) kg
  Battery type LFP
T-BAT HS20.0
- SYSTEM DATA

  Number of modules 8 Modules
  Nominal energy
  29.4 kWh
  Nominal voltage
  409.6 d.c. V
  Max. charge / discharge power
  20.4 kW
- BATTERY MODEL

  Battery model TP-HS36
  Dimensions (W x H x D) 510 × 152 × 365 mm
  Net weight 34 (±1) kg
  Battery type LFP
T-BAT HS22.5
- SYSTEM DATA

  Number of modules 9 Modules
  Nominal energy
  33.1 kWh
  Nominal voltage
  460.8 d.c. V
  Max. charge / discharge power
  23.0 kW
- BATTERY MODEL

  Battery model TP-HS36
  Dimensions (W x H x D) 510 × 152 × 365 mm
  Net weight 34 (±1) kg
  Battery type LFP
T-BAT HS25.0
- SYSTEM DATA

  Number of modules 10 Modules
  Nominal energy
  36.8 kWh
  Nominal voltage
  512.0 d.c. V
  Max. charge / discharge power
  25.6 kW
- BATTERY MODEL

  Battery model TP-HS36
  Dimensions (W x H x D) 510 × 152 × 365 mm
  Net weight 34 (±1) kg
  Battery type LFP
T-BAT HS27.5
- SYSTEM DATA

  Number of modules 11 Modules
  Nominal energy
  40.5 kWh
  Nominal voltage
  563.2 d.c. V
  Max. charge / discharge power
  28.1 kW
- BATTERY MODEL

  Battery model TP-HS36
  Dimensions (W x H x D) 510 × 152 × 365 mm
  Net weight 34 (±1) kg
  Battery type LFP
T-BAT HS30.0
- SYSTEM DATA

  Number of modules 12 Modules
  Nominal energy
  44.2 kWh
  Nominal voltage
  614.4 d.c. V
  Max. charge / discharge power
  30.7 kW
- BATTERY MODEL

  Battery model TP-HS36
  Dimensions (W x H x D) 510 × 152 × 365 mm
  Net weight 34 (±1) kg
  Battery type LFP
T-BAT HS32.5
- SYSTEM DATA

  Number of modules 13 Modules
  Nominal energy
  47.9 kWh
  Nominal voltage
  665.6 d.c. V
  Max. charge / discharge power
  33.2 kW
- BATTERY MODEL

  Battery model TP-HS36
  Dimensions (W x H x D) 510 × 152 × 365 mm
  Net weight 34 (±1) kg
  Battery type LFP

Related Products

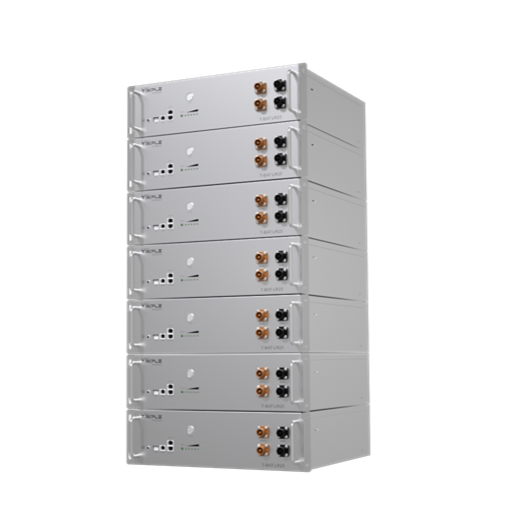

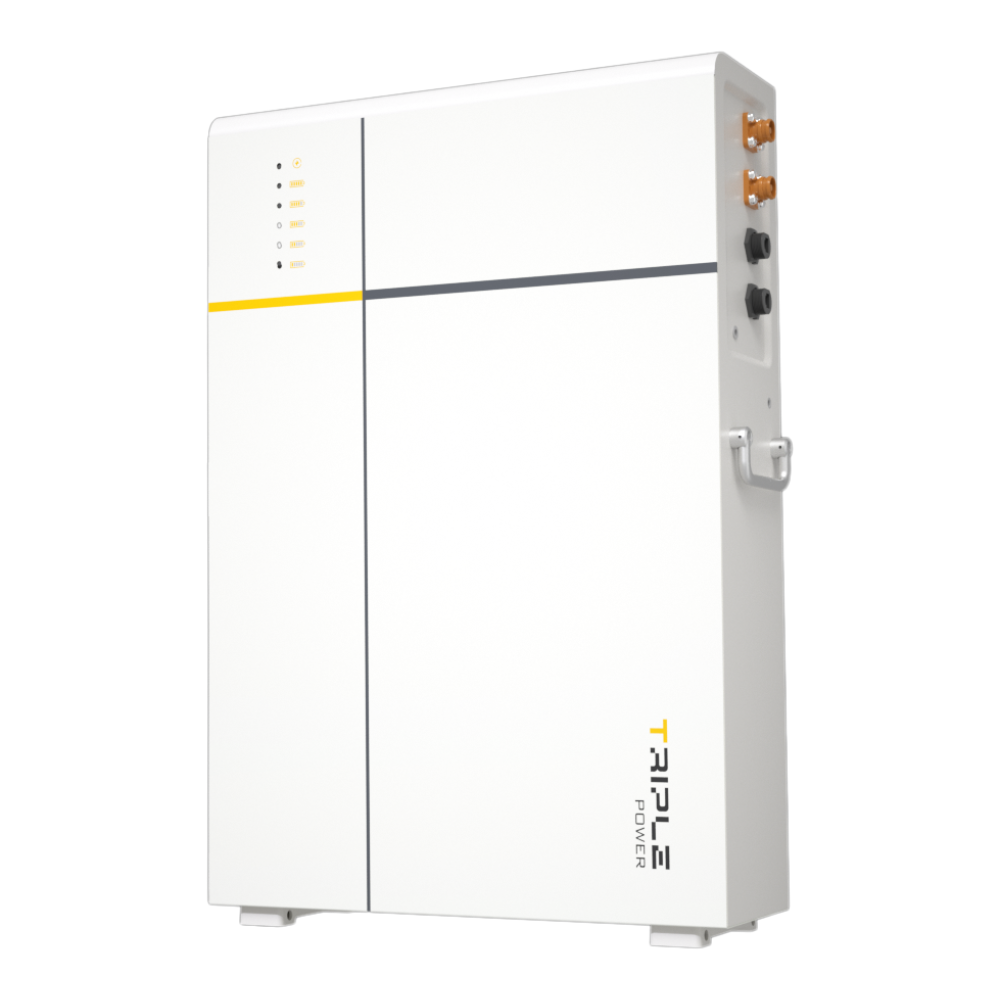

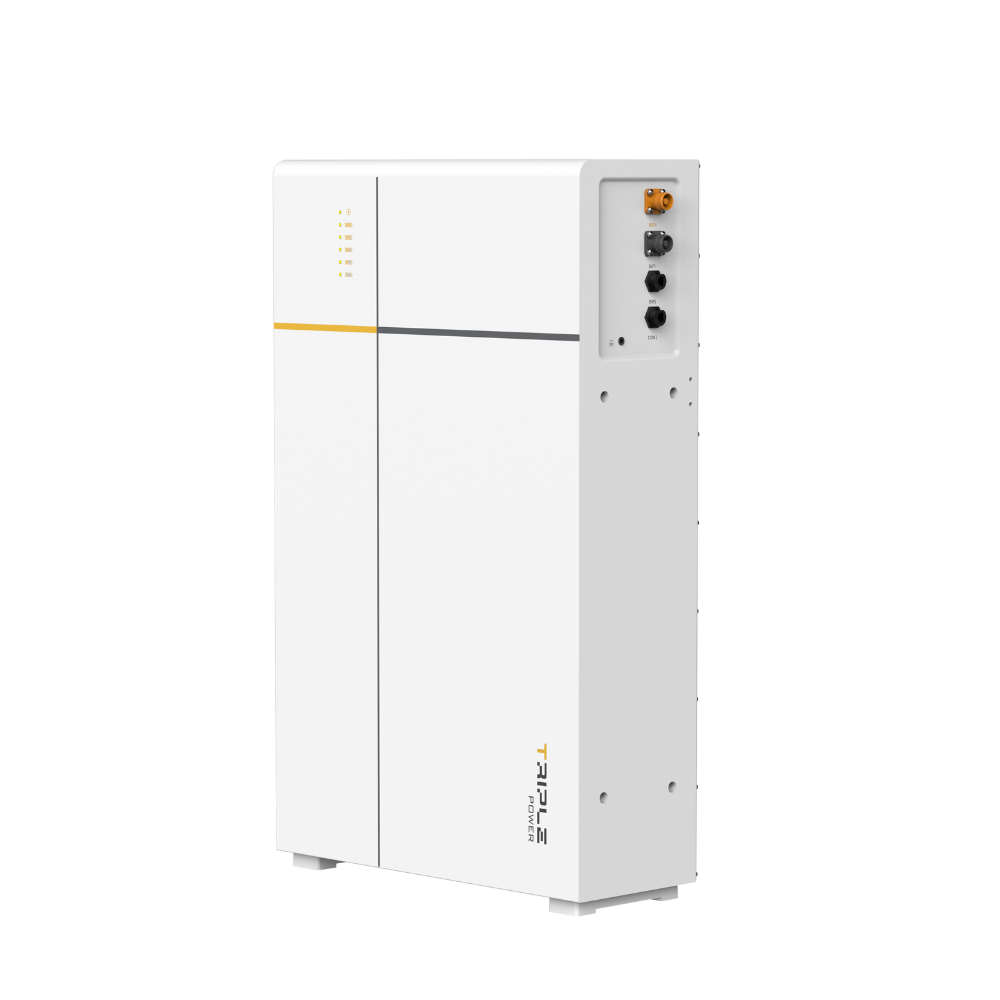

HS50E-D
