Low-voltage Battery System
LD32
-
32.1kWh

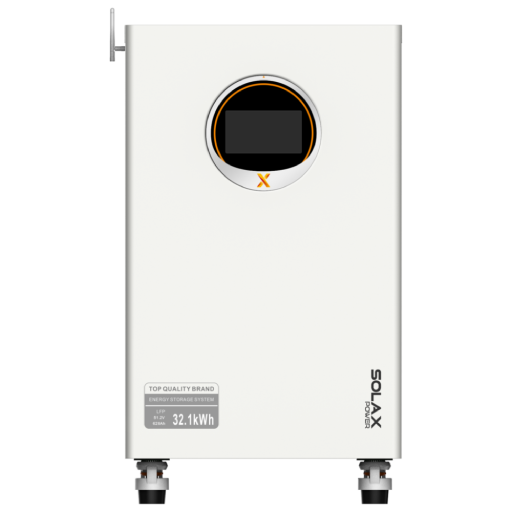

The LD32 low-voltage battery is designed for flexible deployment and easy daily operation. Its wheel-based structure supports faster installation and more convenient positioning, while the intuitive LCD touchscreen makes system interaction simple and user-friendly.
Product Advantage
It supports a maximum charge and discharge current of 210A and delivers 32.1kW peak power for 3 seconds. With parallel expansion up to 16 units, the system can scale from 32.1kWh to 513.6kWh for larger energy demands.
Assured Reliability
Aerosol fire suppression and CO detector for precise protection
Reliable feedback-type DC circuit breaker
High Performance
Max.charging / discharging current: 210 A
Peak output power 32.1 kW for 3 s
Smart Management
Remote fault diagnosis, upgrade and maintenance
User-friendly LCD touchscreen for intuitive and easy interaction
Flexible Adaptability

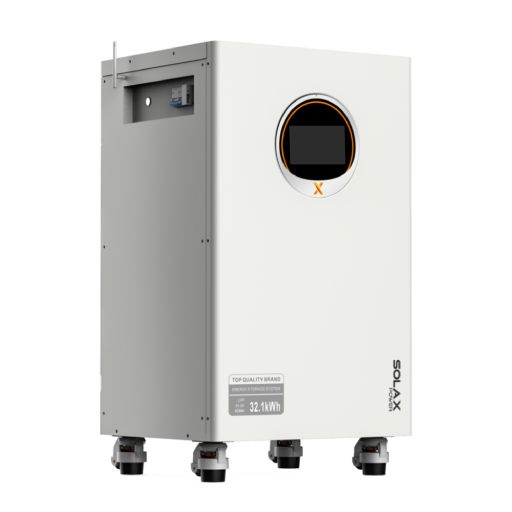

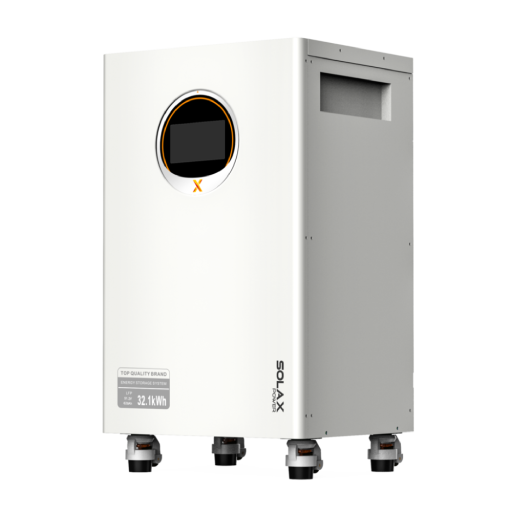

Wheel design enables more convenient installation
Expandable to 16 units in parallel (32.1 ～ 513.6 kWh)
Product Parameters
-
LD32-
BATTERY MODULE
Battery model
LD32-GS
Battery type
LFP
Nominal voltage
51.2 d.c. V
Operating voltage range
42.4 - 57.6 d.c. V
Scalability
Max. 16 pcs in parallel
Max. charge / discharge current
210 A/210 A
-
GENERAL
Dimensions (WxHxD)
560 x 960 x 478 mm
Net weight
241(±1) kg
-
ENVIRONMENT LIMIT
Ingress protection
IP 41
Hazardous materials classification
Class 9
-
