Smart EV Charger

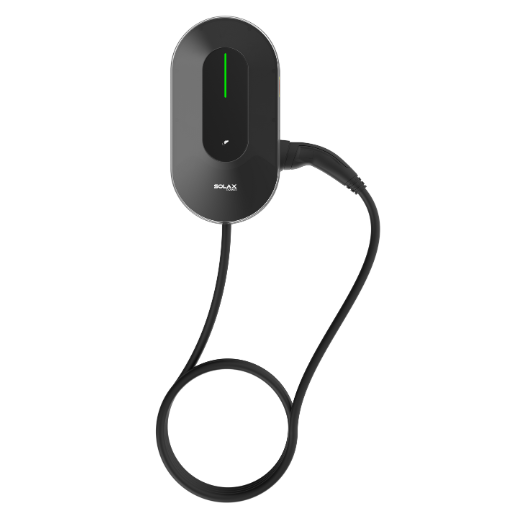

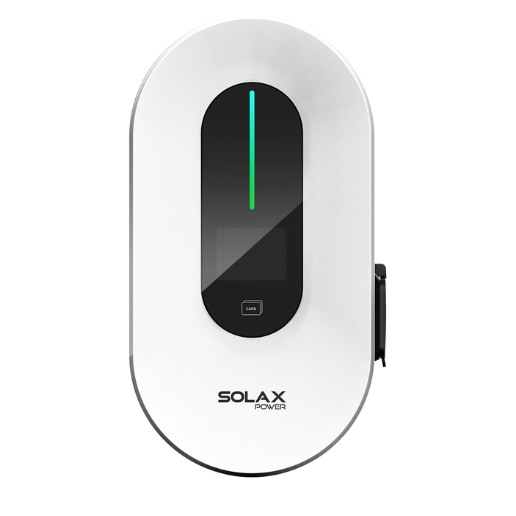

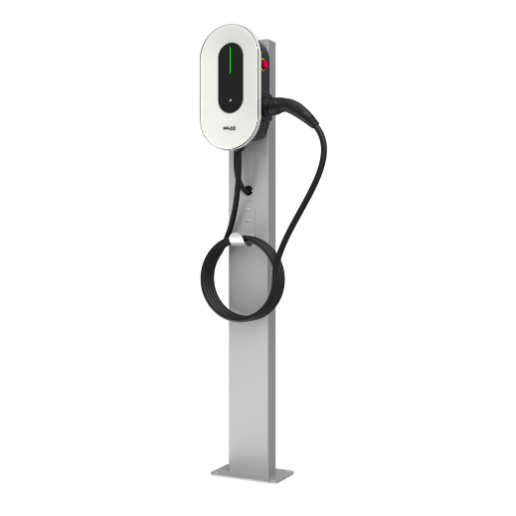

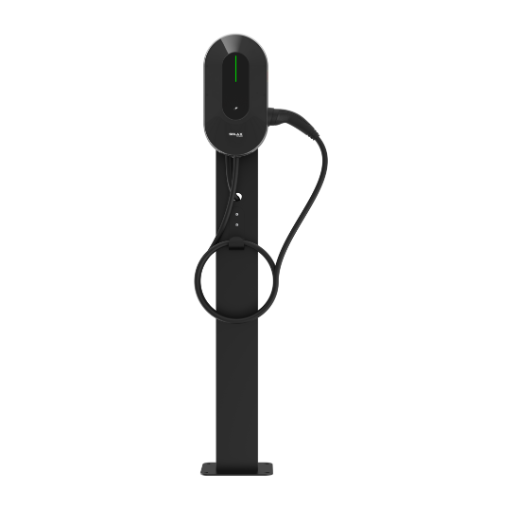

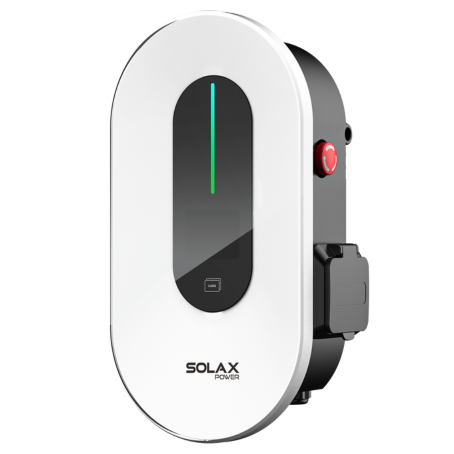

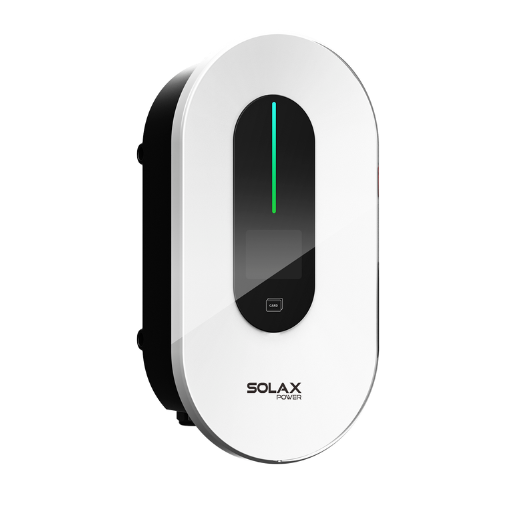

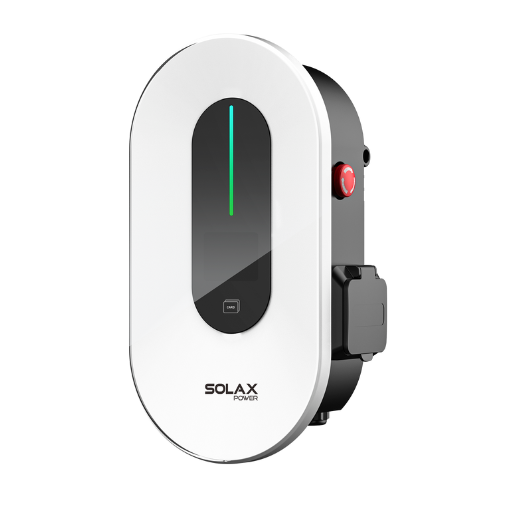

Smart EV Charger G2
-
4.6kW/7.2kW/11kW/22kW
The SolaX Smart EV Charger G2 is a next-generation 4.6/7.2/11/22kW charger for fast, energy-saving charging. Featuring 3 modes connectivity (WiFi/4G/Ethernet), it enables remote control via the SolaXCloud App for scheduling and real-time monitoring. With dynamic load balancing and solar compatibility, it intelligently optimizes power usage while supporting plug-and-charge convenience for a seamless experience.
-
Watch Video
Product Advantage
The G2 model supports 100% green energy charging and automatic switching between single and three-phase power. It maximizes surplus energy utilization within zero-export systems, making it a future-ready solution for sustainable EV infrastructure.
Flexible Adaptability
Selectable plug or socket outlet
Easy indoor and outdoor installation
Supports multiple communication protocols
High Efficiency
Capable of 100% green energy
Automatic switch between one and three phases
Maximizing surplus green energy utilization in a zero-export system
Assured Safety
Current leakage protection (30mA AC & 6mA DC)
Smart dynamic load balance control
Intelligent Design
Smart RFID management function
Smart APP remote control
Product Parameters
-
X1-HAC-4-
AC NOMINAL INPUT
Voltage 230 V Grouding type TN, TT, IT -
AC NOMINAL OUTPUT
Power 1.4~ 4.6 kW -
INTERFACE
Communication Interface Wi-Fi / Ethernet / 4G (optional) / RS 485 x 2 -
GENERAL
Charging outlet Type2 plug / Type2 socket (IEC 62196) Degree of protection IP65 (plug type) / IP54 (socket type)
IK10 (housing) / IK08 (screen)
Cooling method Natural cooling Application site Indoor / Outdoor Net weight 5 kg for plug type Dimensions (W x H x D) 206 x390x139 mm
-
-
X1-HAC-7
-
AC NOMINAL INPUT
Voltage 230 V Grouding type TN, TT, IT -
AC NOMINAL OUTPUT
Power 1.4~7.2 kW -
INTERFACE
Communication Interface Wi-Fi / Ethernet / 4G (optional) / RS 485 x 2 -
GENERAL
Charging outlet Type2 plug / Type2 socket (IEC 62196) Degree of protection IP65 (plug type) / IP54 (socket type)
IK10 (housing) / IK08 (screen)
Cooling method Natural cooling Application site Indoor / Outdoor Net weight 3 kg for socket type
5 kg for plug type
Dimensions (W x H x D) 206 x390x139 mm
-
-
X3-HAC-11
-
AC NOMINAL INPUT
Voltage 400 V Grouding type TN, TT, IT -
AC NOMINAL OUTPUT
Power 1.4~11 kW -
INTERFACE
Communication Interface Wi-Fi / Ethernet / 4G (optional) / RS 485 x 2 -
GENERAL
Charging outlet Type2 plug/Type2 socket (lEC 62196) Degree of protection IP65 (plug type) / IP54 (socket type)
IK10 (housing) / IK08 (screen)
Cooling method Natural cooling Application site Indoor / Outdoor Net weight 3 kg for socket type
6.5 kg for plug type
Dimensions (W x H x D) 206 x390x139 mm
-
-
X3-HAC-22
-
AC NOMINAL INPUT
Voltage 400 V Grouding type TN, TT, IT -
AC NOMINAL OUTPUT
Power 1.4~22 kW -
INTERFACE
Communication Interface Wi-Fi / Ethernet / 4G (optional) / RS 485 x 2 -
GENERAL
Charging outlet Type2 plug/Type2 socket (lEC 62196) Degree of protection IP65 (plug type) /lP54 (socket type)
IK10 (housing)/lK08 (screen)
Cooling method Natural cooling Application site Indoor / Outdoor Net weight 3 kg for socket type
6.5 kg for plug type
Dimensions (W x H x D) 206 x390x139 mm
-
