Binary Series

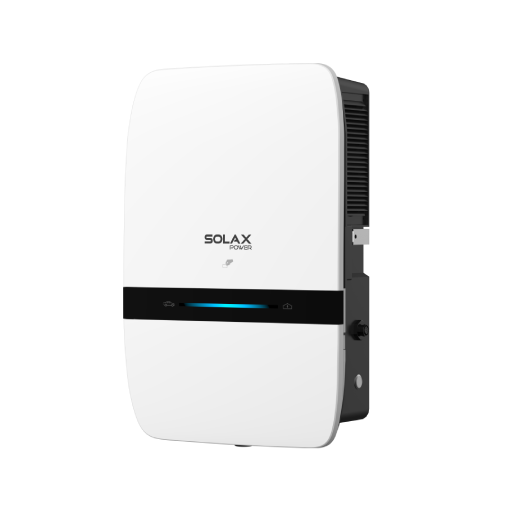

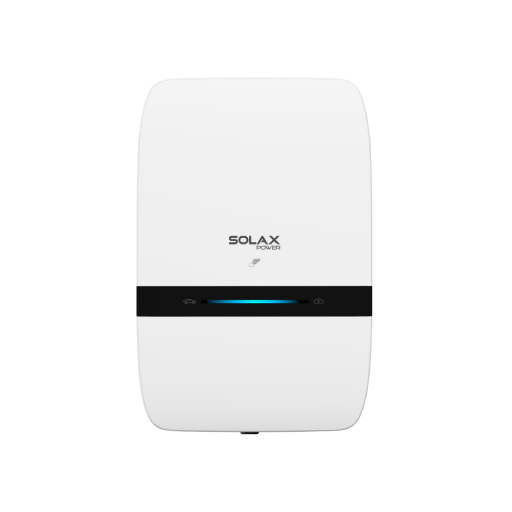

Binary Series Smart AC EV Charger

1.4 - 22 kW

The SolaX Binary Series is designed for smart, flexible home energy use, integrating RFID vehicle management, scheduled charging and discharging, and charging history tracking. It supports mainstream V2L electric vehicles and works seamlessly with SolaX PV-ESS systems.

Data Download

Product Advantage

Built for reliable bidirectional EV charging, this Smart AC EV Charger enables 100% green energy use, automatic single/three-phase switching, dynamic load balancing, leakage protection, ISO insulation verification, and black start backup power for homes.

High Performance

Industry's first charging & discharging solution for vehicles with V2L function.
Implement V2X solution through the integration of SolaX PV-ESS.
Capable of 100% green energy.
Automatic switch between single and three phases.
Maximizing surplus green utilization in a zero-export system.

Assured Safety

Current leakage protection.
Smart dynamic load balance control.
ISO Insulation verification on DC output cable.
Decoupling of charge and discharge ensures the reliability.

Intelligent Design

Smart vehicle and RFID card management.
Multi-time slot charging and discharging scheduling.
Charging and discharging history management.

Flexible Adaptability

The discharge function supports mainstream V2L electric vehicle models.
Support multiple communication protocols.
Support black start, the EV battery can be used as a backup power source for home.

Product Parameters

BRY-A22D7

BRY-A22D7
- AC NOMINAL INPUT

  Voltage 1Ph 230 V / 3 Ph 400 V
  Grouding type TN, TT, IT^①IT 1Ph 230V
- AC NOMINAL OUTPUT

  Power 1.4 ~ 22 kW^②The actual charging and discharging power depends on the EV-side.
- INTERFACE

  Communication Interface WiFi / Ethernet / CAN / DI / RS485
- GENERAL

  Charging outlet Type2 plug (IEC 62196)
  Degree of protection
  IP54 / IK10
  Cooling method Smart air cooling
  Application site Indoor / Outdoor
  Net weight
  16.5 kg
  Dimensions (W x H x D) 376 × 562 × 128 mm
