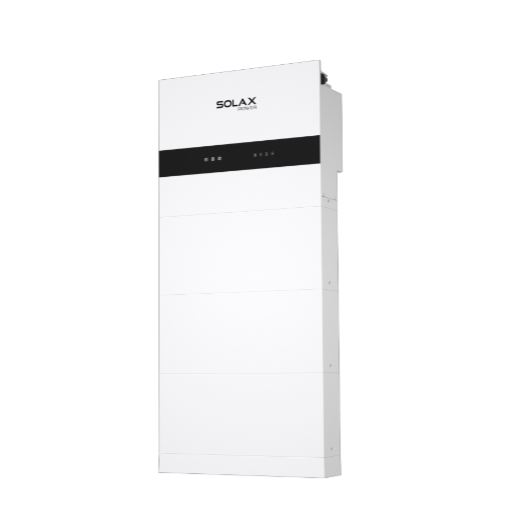

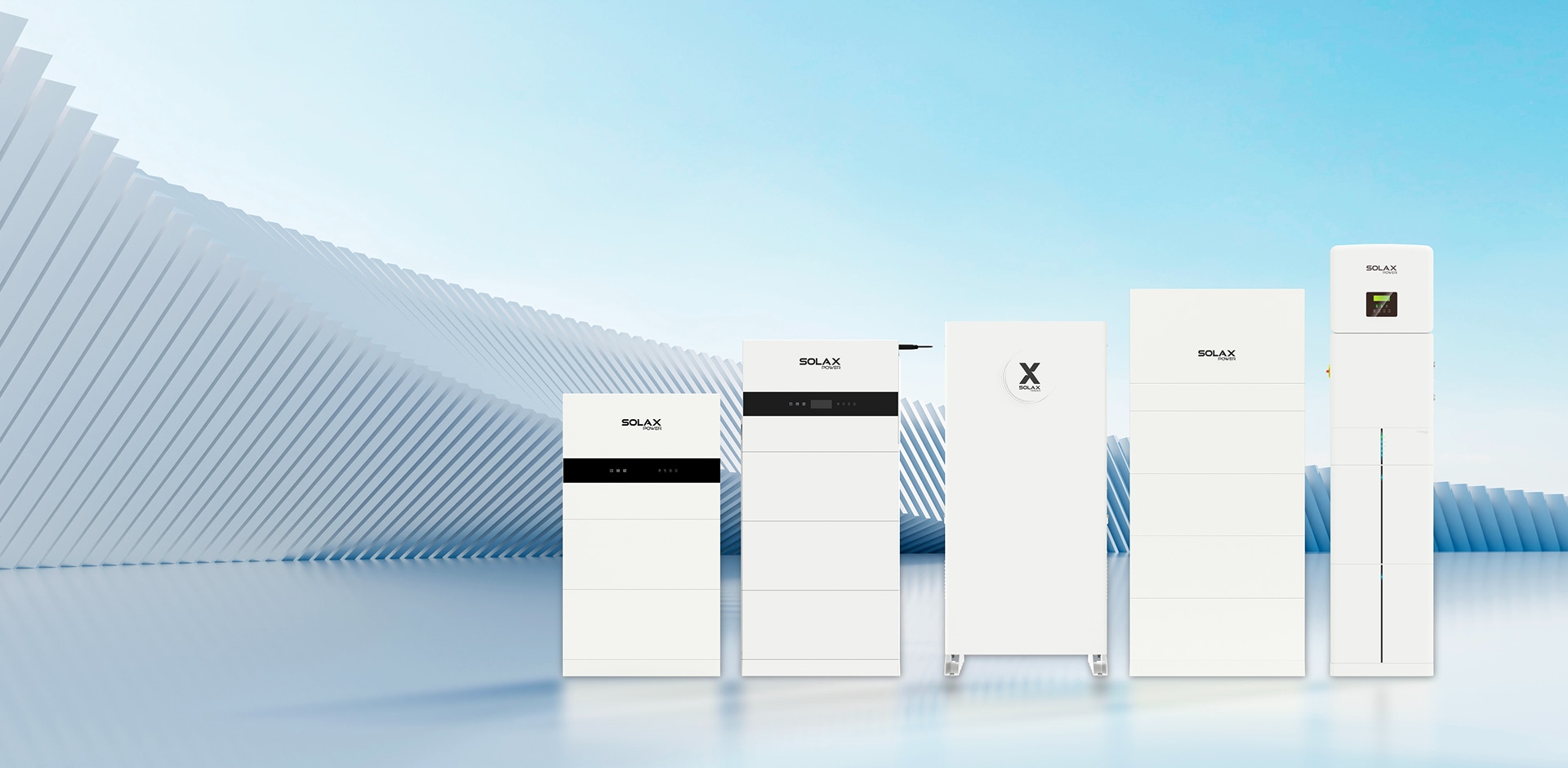

Residential ESS Energy Storage Systems

Introduction

Since 2015, the SolaX Energy Storage System has been delivering reliable and intelligent energy solutions. Designed with a hybrid inverter, battery, and advanced Battery Management System (BMS), it ensures high efficiency, safety, and flexibility.

With smart features, seamless scalability, and a robust backup function, our home energy storage system supports parallel expansion and integrates effortlessly with generators, heat pumps, and EV chargers.

Maximum Energy Yield

With three 20A MPPT inputs, SolaX residential energy storage system optimizes multiple PV arrays, enhancing efficiency even in shaded or varied-angle setups. 200% oversizing and PV input ensure future scalability and maximum low-light performance.
- Up to 3

  MPPT trackers
- 200%

  PV Oversizing & Input
- 140V

  Low Start-Up Voltage

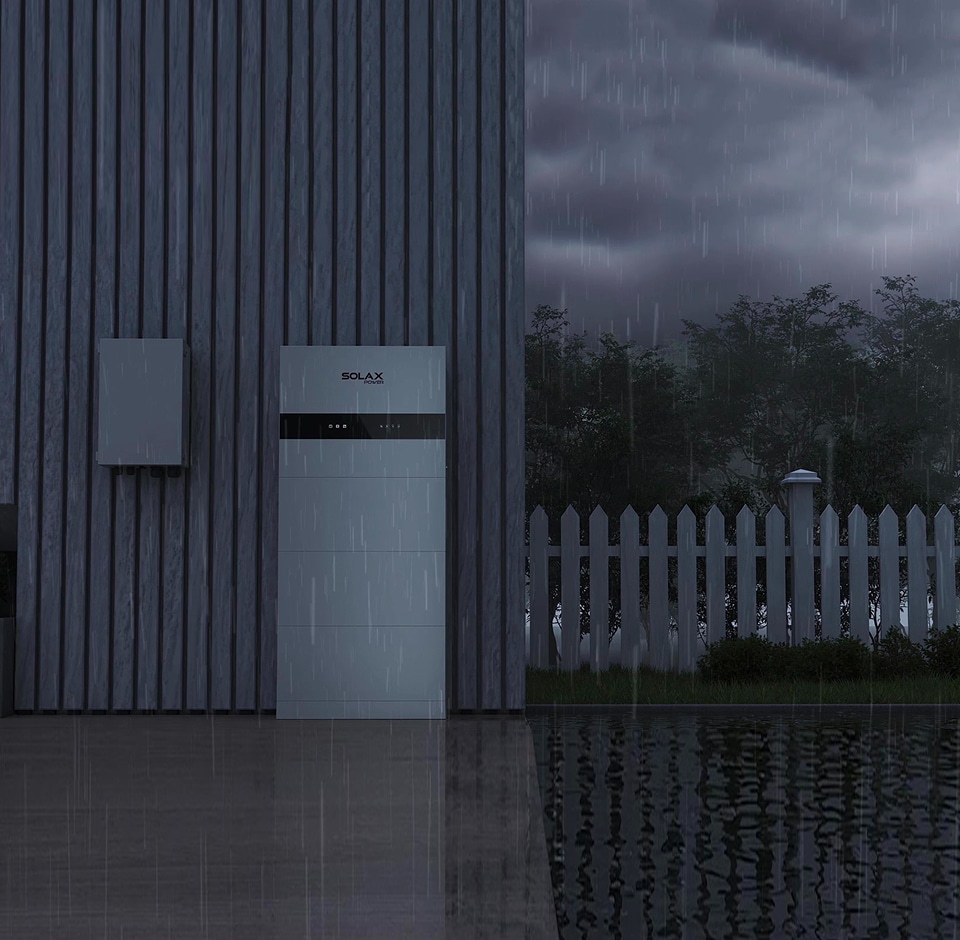

Superior Reliability

Designed for harsh environments, SolaX home energy storage system is IP66-rated, with Class II surge protection on AC/DC sides. It supports optional AFCI, handles 50A max charge/discharge, and delivers 200% EPS output for 10s with a switch time of <10ms, ensuring uninterrupted operation.
- IP66

  Dust & Water Resistance
- Up to 50A

  Charge/Discharge Current
- <10ms

  Switch Time

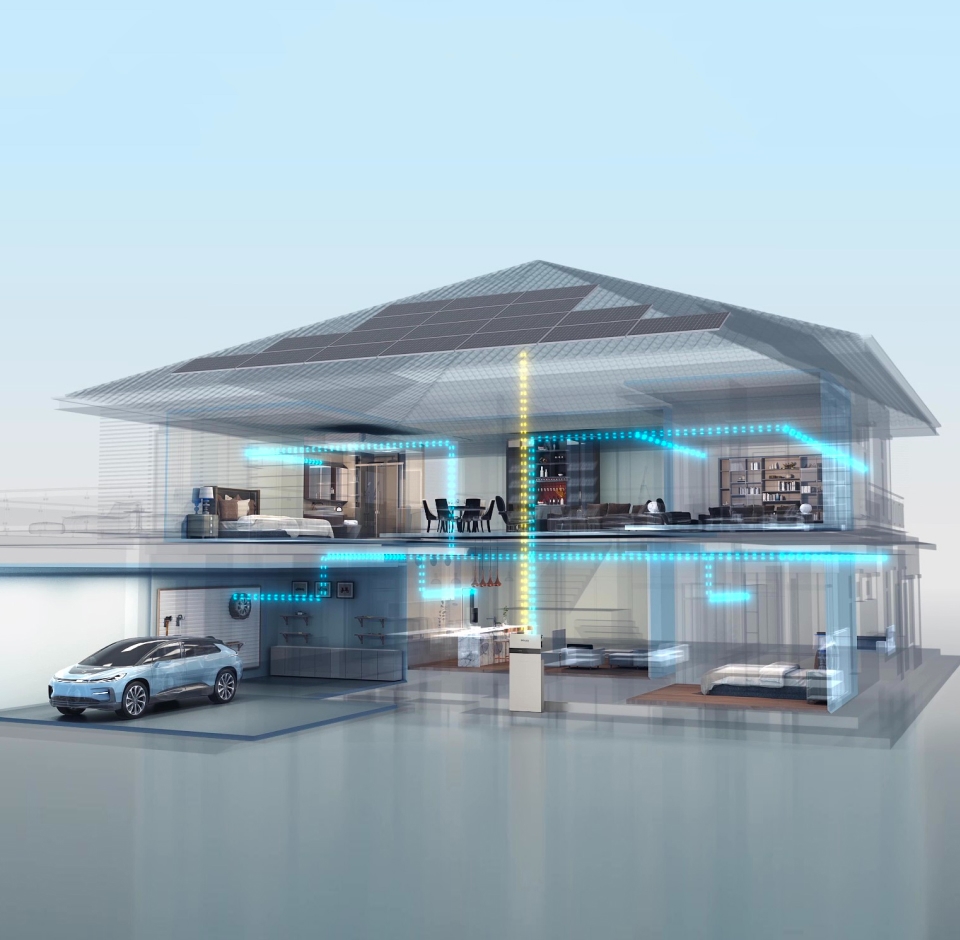

Smart Energy Management

With real-time monitoring, SolaXCloud optimizes TOU pricing, dynamically manages loads, and prevents overloads. VPP compatibility enables grid participation for additional revenue, making energy usage smarter and more cost-effective.
- 24/7 TOU Optimization

  Lower electricity bills
- Smart Load Control

  Prevent overload risks
- VPP Ready

  Monetize excess energy

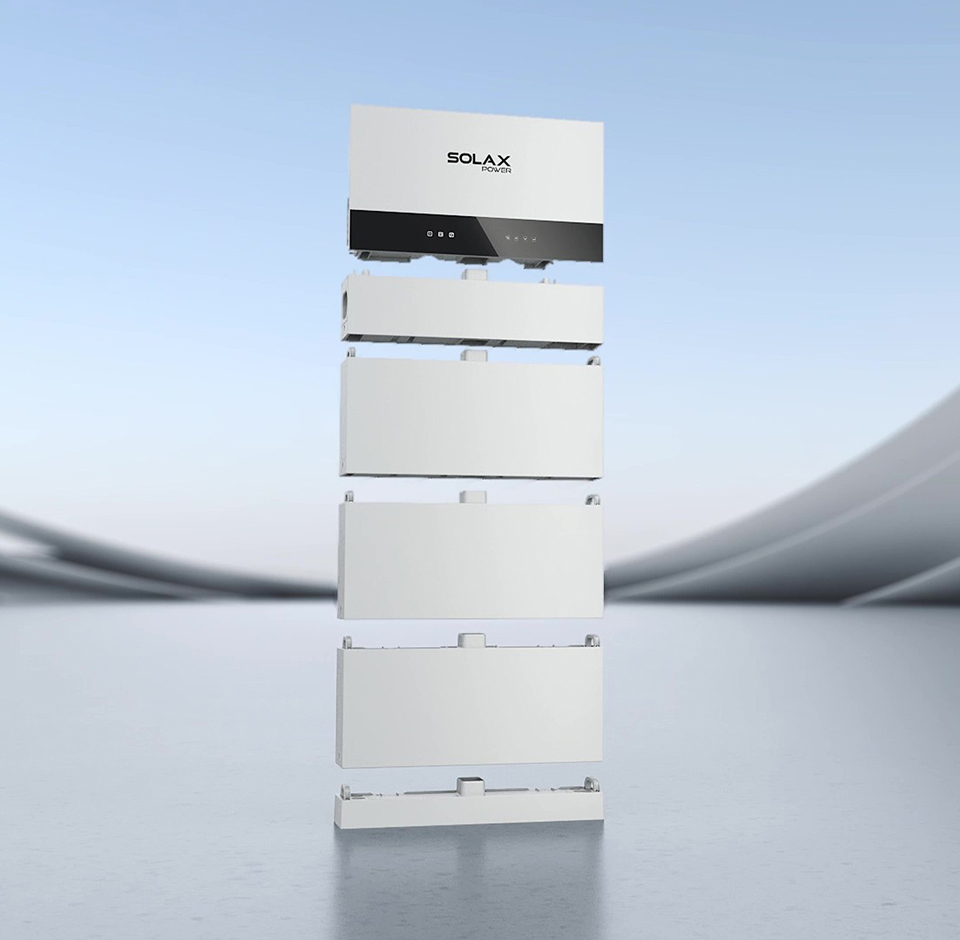

Fast Installation

SolaX home energy storage system features a modular design, allowing easy assembly, expansion, and maintenance for seamless residential integration. Its all-in-one design comes pre-configured, reducing wiring and commissioning time, ensuring quick deployment.
- Up to 50%

  Faster installation
- Plug & Play

  Pre-configured system
- Modular Design

  Easy expansion

Product Parameters

X3-IES-4K
X3-IES-5K
X3-IES-6K
X3-IES-8K
X3-IES-10K
X3-IES-12K
X3-IES-15K

X3-IES-4K
- PV INPUT

  Max. recommended PV array power
  8 kWp
  MPPT voltage range
  110 ~ 950 d.c. V
  Number of MPP. trackers / strings per MPPT
  2/(1/1)
  Max. input current per MPPT
  20 / 20 d.c. A
- AC INPUT & OUTPUT(ON-GRID)

  Rated output apparent power
  4 kVA
  Rated AC voltage
  3W / N / PE, 220 / 380 a.c. V 3W / N / PE, 230 / 400 a.c. V
- EPS OUTPUT(WITH BATTERY)

  Rated EPS apparent power
  4 KVA
  Peak EPS output power
  2 times of rated power, 10s
  Switchover time
  <10 ms
- BATTERY

  Battery type
  Lithium
  Max Charge / Discharge current
  50 d.c. A
- GENERAL

  Dimensions (W x H x D)
  717x405x209.5 mm
  Net Weight 35kg
  Ingress protection IP66
X3-IES-5K
- PV INPUT

  Max. recommended PV array power
  10 kWp
  MPPT voltage range
  110 ~ 950 d.c. V
  Number of MPP. trackers / strings per MPPT
  2/(1/1)
  Max. input current per MPPT
  20 / 20 d.c. A
- AC INPUT & OUTPUT(ON-GRID)

  Rated output apparent power
  5 kVA (AS4777 4.999 kVA)
  Rated AC voltage
  3W / N / PE, 220 / 380 a.c. V 3W / N / PE, 230 / 400 a.c. V
- EPS OUTPUT(WITH BATTERY)

  Rated EPS apparent power
  5 KVA
  Peak EPS output power
  2 times of rated power, 10s
  Switchover time
  <10 ms
- BATTERY

  Battery type
  Lithium
  Max Charge / Discharge current
  50 d.c. A
- GENERAL

  Dimensions (W x H x D)
  717x405x209.5 mm
  Net Weight 35kg
  Ingress protection IP66
X3-IES-6K
- PV INPUT

  Max. recommended PV array power
  12 kWp
  MPPT voltage range
  110 ~ 950 d.c. V
  Number of MPP. trackers / strings per MPPT
  2/(1/1)
  Max. input current per MPPT
  20 / 20 d.c. A
- AC INPUT & OUTPUT(ON-GRID)

  Rated output apparent power
  6 kVA
  Rated AC voltage
  3W / N / PE, 220 / 380 a.c. V 3W / N / PE, 230 / 400 a.c. V
- EPS OUTPUT(WITH BATTERY)

  Rated EPS apparent power
  6 KVA
  Peak EPS output power
  2 times of rated power, 10s
  Switchover time
  <10 ms
- BATTERY

  Battery type
  Lithium
  Max Charge / Discharge current
  50 d.c. A
- GENERAL

  Dimensions (W x H x D)
  717x405x209.5 mm
  Net Weight 35kg
  Ingress protection IP66
X3-IES-8K
- PV INPUT

  Max. recommended PV array power
  16 kWp
  MPPT voltage range
  110 ~ 950 d.c. V
  Number of MPP. trackers / strings per MPPT
  2 / (2 / 1)
  Max. input current per MPPT
  32 / 20 d.c. A
- AC INPUT & OUTPUT(ON-GRID)

  Rated output apparent power
  8 kVA
  Rated AC voltage
  3W / N / PE, 220 / 380 a.c. V 3W / N / PE, 230 / 400 a.c. V
- EPS OUTPUT(WITH BATTERY)

  Rated EPS apparent power
  8 KVA
  Peak EPS output power
  2 times of rated power, 10s
  Switchover time
  <10 ms
- BATTERY

  Battery type
  Lithium
  Max Charge / Discharge current
  50 d.c. A
- GENERAL

  Dimensions (W x H x D)
  717x405x209.5 mm
  Net Weight 35kg
  Ingress protection IP66
X3-IES-10K
- PV INPUT

  Max. recommended PV array power
  20 kWp
  MPPT voltage range
  110 ~ 950 d.c. V
  Number of MPP. trackers / strings per MPPT
  2/(2/1)
  Max. input current per MPPT
  32 / 20 d.c. A
- AC INPUT & OUTPUT(ON-GRID)

  Rated output apparent power
  10 kVA (AS4777 9.999 kVA)
  Rated AC voltage
  3W / N / PE, 220 / 380 a.c. V 3W / N / PE, 230 / 400 a.c. V
- EPS OUTPUT(WITH BATTERY)

  Rated EPS apparent power
  10 KVA
  Peak EPS output power
  2 times of rated power, 10s
  Switchover time
  <10 ms
- BATTERY

  Battery type
  Lithium
  Max Charge / Discharge current
  50 d.c. A
- GENERAL

  Dimensions (W x H x D)
  717x405x209.5 mm
  Net Weight 35kg
  Ingress protection IP66
X3-IES-12K
- PV INPUT

  Max. recommended PV array power
  24 kWp
  MPPT voltage range
  110 ~ 950 d.c. V
  Number of MPP. trackers / strings per MPPT
  2/(2/1)
  Max. input current per MPPT
  32 / 20 d.c. A
- AC INPUT & OUTPUT(ON-GRID)

  Rated output apparent power
  12 kVA
  Rated AC voltage
  3W / N / PE, 220 / 380 a.c. V 3W / N / PE, 230 / 400 a.c. V
- EPS OUTPUT(WITH BATTERY)

  Rated EPS apparent power
  12 KVA
  Peak EPS output power
  2 times of rated power, 10s
  Switchover time
  <10 ms
- BATTERY

  Battery type
  Lithium
  Max Charge / Discharge current
  50 d.c. A
- GENERAL

  Dimensions (W x H x D)
  717x405x209.5 mm
  Net Weight 37kg
  Ingress protection IP66
X3-IES-15K
- PV INPUT

  Max. recommended PV array power
  30 kWp
  MPPT voltage range
  110 ~ 950 d.c. V
  Number of MPP. trackers / strings per MPPT
  2/(2/1)
  Max. input current per MPPT
  32 / 20 d.c. A
- AC INPUT & OUTPUT(ON-GRID)

  Rated output apparent power
  15 kVA (AS4777 14.999 kVA)
  Rated AC voltage
  3W / N / PE, 220 / 380 a.c. V 3W / N / PE, 230 / 400 a.c. V
- EPS OUTPUT(WITH BATTERY)

  Rated EPS apparent power
  15 kVA
  Peak EPS output power
  2 times of rated power, 10s
  Switchover time
  <10 ms
- BATTERY

  Battery type
  Lithium
  Max Charge / Discharge current
  50 d.c. A
- GENERAL

  Dimensions (W x H x D)
  717x405x209.5 mm
  Net Weight 37kg
  Ingress protection IP66

Related Products

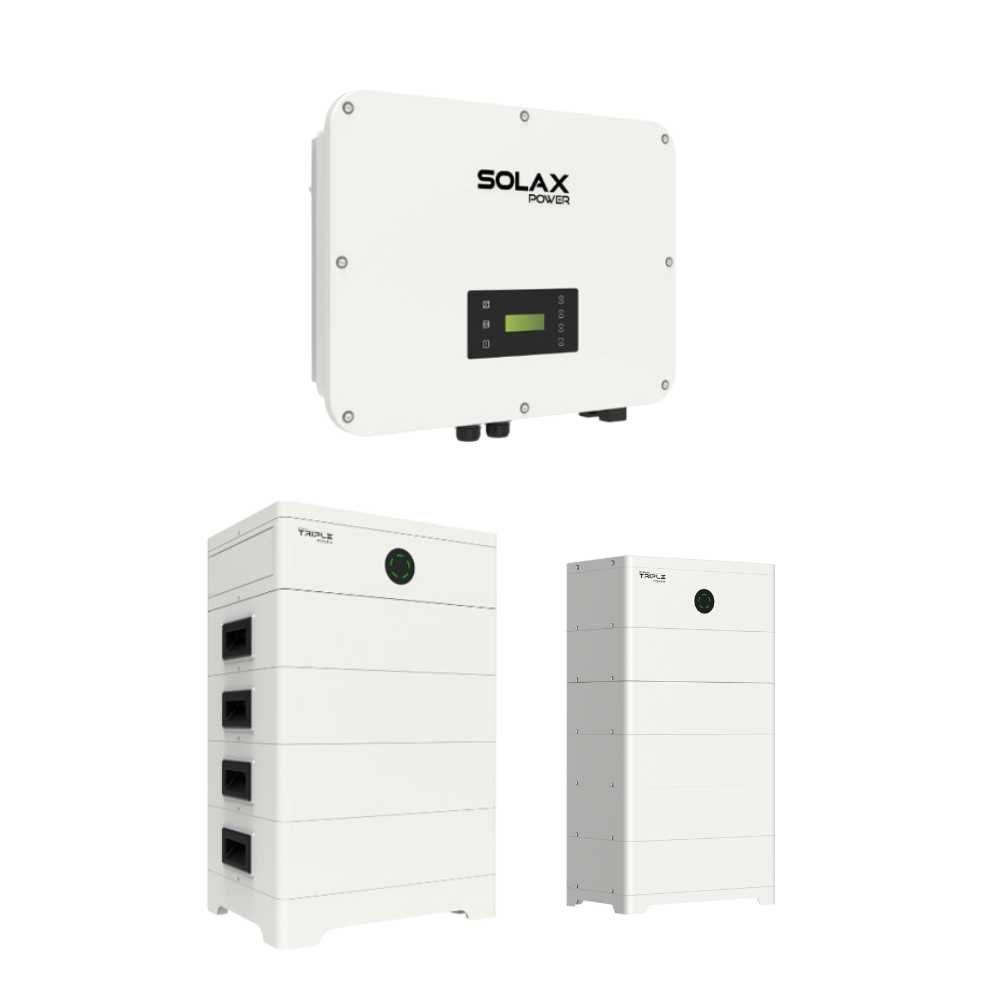

X-ESS G4
