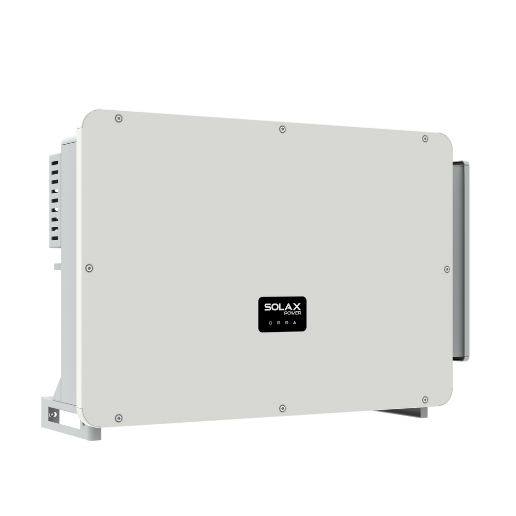

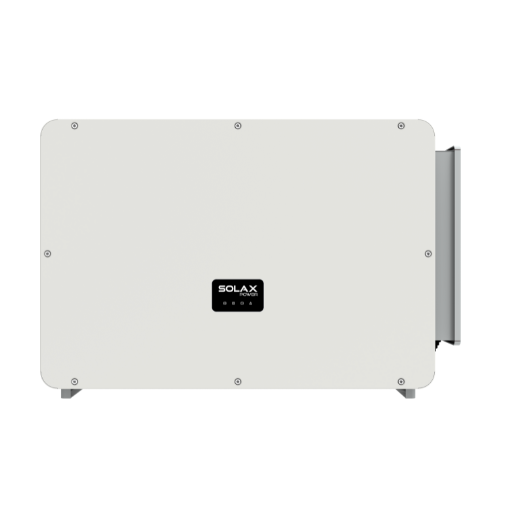

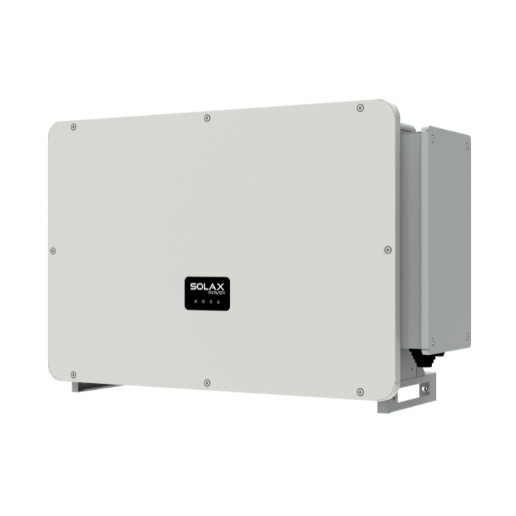

Three Phase Inverter

X3-FORTH

75kW / 80kW / 100kW / 110kW / 120kW / 125kW / 136kW / 150kW

Available in 75kW to 150kW, the X3-FORTH series features a compact, lightweight build with advanced heat dissipation—over 5% smaller and lighter. Smart air cooling extends fan life, while I-V curve diagnosis and night-time reactive power compensation boost system efficiency and stability.

Watch Video
Data Download

Achieving up to 99% efficiency, the X3-FORTH supports 150% PV oversizing and 110% output overloading. With 12 MPPTs, 32A per tracker, and a 180–1000Vdc MPPT range, it offers flexible, high-performance energy generation for commercial solar systems.

Flexible Adaptability

Built-in export power control function
Remote setting and upgrading
Aluminium AC cable connection available

Intelligent Design

Night-time reactive power compensation
Smart air cooling enhances fan longevity
Heat dissipation reduces system weight & size by over 5%
I-V curve diagnosis

High Efficiency

Up to 99% efficiency
32A per MPP tracker
180~1000Vdc MPPT voltage range
150% PV oversizing, 110% overloading output
Max. 12 MPPTs, 2 strings per MPP tracker

Assured Safety

IP66 protection degree
AFCI support (optional)
AC terminal temperature detection
String current monitoring
24 hours operation monitoring
Type II SPD on AC&DC side

Product Parameters

X3-FTH-75K
X3-FTH-80K
X3-FTH-100K
X3-FTH-110K
X3-FTH-120K
X3-FTH-125K
X3-FTH-136K-MV
X3-FTH-150K-MV

X3-FTH-75K
- PV INPUT

  Max. recommended PV array power 120 kWp
  MPPT voltage range 180 ~ 1000 V
  No. of MPP trackers / strings per MPP tracker 9 / 2
  Max. input current per MPPT 32 A
- AC OUTPUT

  Rated output power 75 kW
  Nominal AC voltage
  3 / (N) / PE, 220 / 380 V
  3 / (N) / PE, 230 / 400 V
- GENERAL

  Ingress protection IP66
  Dimensions (W /H / D)
  985 × 660 × 327.5 mm
  Net Weight 83 kg
X3-FTH-80K
- PV INPUT

  Max. recommended PV array power 120 kWp
  MPPT voltage range 180 ~ 1000 V
  No. of MPP trackers / strings per MPP tracker 9 / 2
  Max. input current per MPPT 32 A
- AC OUTPUT

  Rated output power 80 kW
  Nominal AC voltage
  3 / (N) / PE, 220 / 380 V
  3 / (N) / PE, 230 / 400 V
- GENERAL

  Ingress protection IP66
  Dimensions (W /H / D)
  985 × 660 × 327.5 mm
  Net Weight 83 kg
X3-FTH-100K
- PV INPUT

  Max. recommended PV array power 150 kWp
  MPPT voltage range 180 ~ 1000 V
  No. of MPP trackers / strings per MPP tracker
  9 / 2
  12 / 2
  Max. input current per MPPT 32 A
- AC OUTPUT

  Rated output power 80 kW
  Nominal AC voltage
  3 / (N) / PE, 220 / 380 V
  3 / (N) / PE, 230 / 400 V
- GENERAL

  Ingress protection IP66
  Dimensions (W /H / D)
  985 × 660 × 327.5 mm
  Net Weight 83 kg
X3-FTH-110K
- PV INPUT

  Max. recommended PV array power 165 kWp
  MPPT voltage range 180 ~ 1000 V
  No. of MPP trackers / strings per MPP tracker
  9 / 2
  12 / 2
  Max. input current per MPPT 32 A
- AC OUTPUT

  Rated output power 110 kW
  Nominal AC voltage
  3 / (N) / PE, 220 / 380 V
  3 / (N) / PE, 230 / 400 V
- GENERAL

  Ingress protection IP66
  Dimensions (W /H / D)
  985 × 660 × 327.5 mm
  Net Weight 83 kg
X3-FTH-120K
- PV INPUT

  Max. recommended PV array power 180 kWp
  MPPT voltage range 180 ~ 1000 V
  No. of MPP trackers / strings per MPP tracker 12 / 2
  Max. input current per MPPT 32 A
- AC OUTPUT

  Rated output power 120 kW
  Nominal AC voltage
  3 / (N) / PE, 220 / 380 V
  3 / (N) / PE, 230 / 400 V
- GENERAL

  Ingress protection IP66
  Dimensions (W /H / D)
  985 × 660 × 327.5 mm
  Net Weight 87 kg
X3-FTH-125K
- PV INPUT

  Max. recommended PV array power 180 kWp
  MPPT voltage range 180 ~ 1000 V
  No. of MPP trackers / strings per MPP tracker 12 / 2
  Max. input current per MPPT 32 A
- AC OUTPUT

  Rated output power 125 kW
  Nominal AC voltage 3 / (N) / PE, 220 / 380 V 3 / (N) / PE, 230 / 400 V
- GENERAL

  Ingress protection IP66
  Dimensions (W /H / D)
  985 × 660 × 327.5 mm
  Net Weight 87 kg
X3-FTH-136K-MV
- PV INPUT

  Max. recommended PV array power 204 kWp
  MPPT voltage range 180 ~ 1000 V
  No. of MPP trackers / strings per MPP tracker 12 / 2
  Max. input current per MPPT 32 A
- AC OUTPUT

  Rated output power 136 kW
  Nominal AC voltage 3 / (N) / PE, 220 / 380 V 3 / (N) / PE, 230 / 400 V
- GENERAL

  Ingress protection IP66
  Dimensions (W /H / D)
  985 × 660 × 327.5 mm
  Net Weight 87 kg
X3-FTH-150K-MV
- PV INPUT

  Max. recommended PV array power 225 kWp
  MPPT voltage range 180 ~ 1000 V
  No. of MPP trackers / strings per MPP tracker 12 / 2
  Max. input current per MPPT 32 A
- AC OUTPUT

  Rated output power 150 kW
  Nominal AC voltage 3 / (N) / PE, 220 / 380 V 3 / (N) / PE, 230 / 400 V
- GENERAL

  Ingress protection IP66
  Dimensions (W /H / D)
  985 × 660 × 327.5 mm
  Net Weight 87 kg
