Residential Batteries

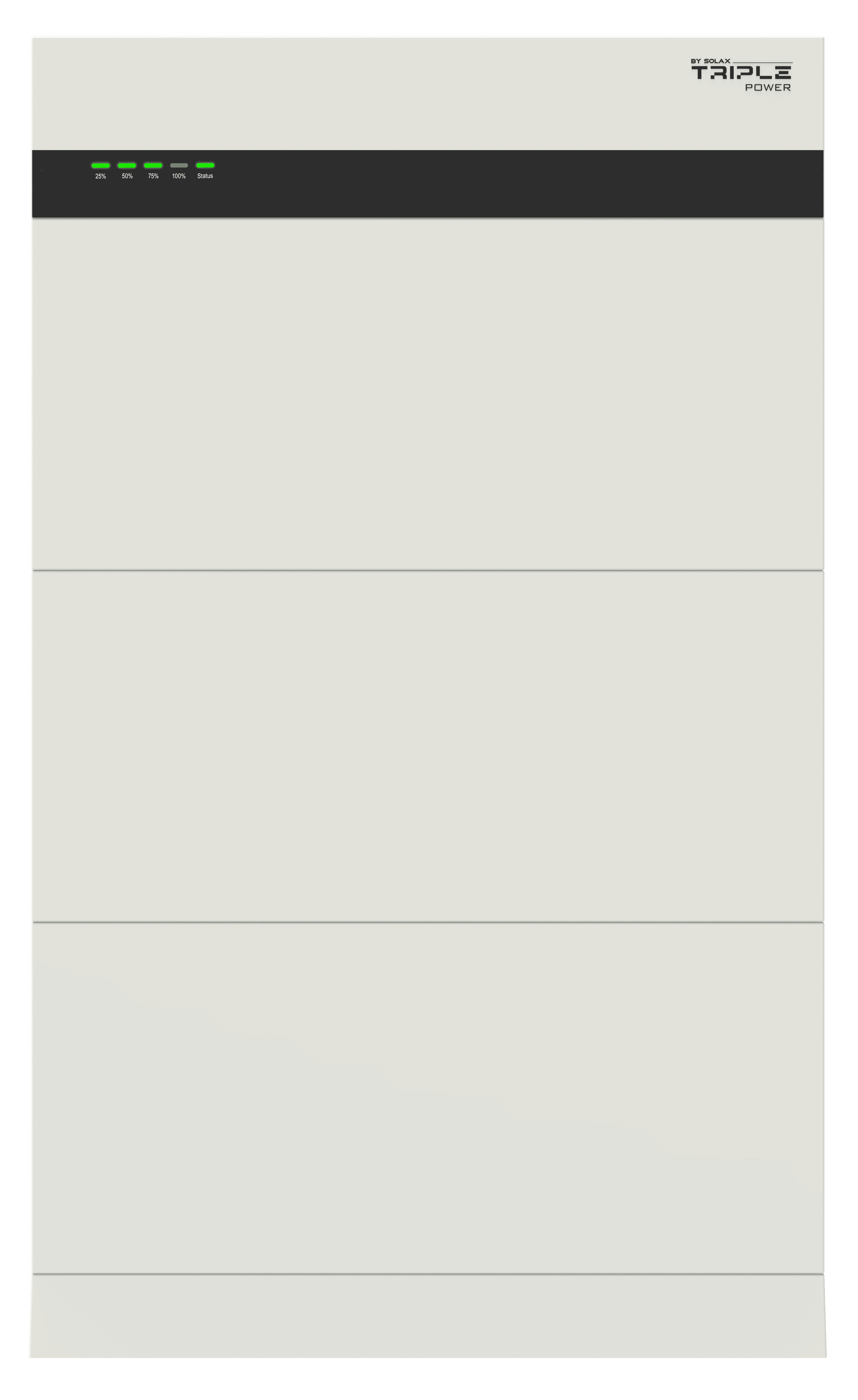

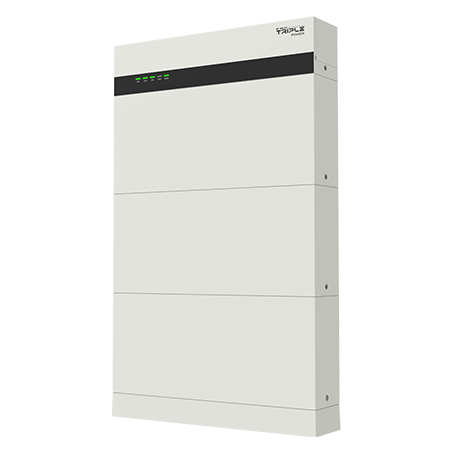

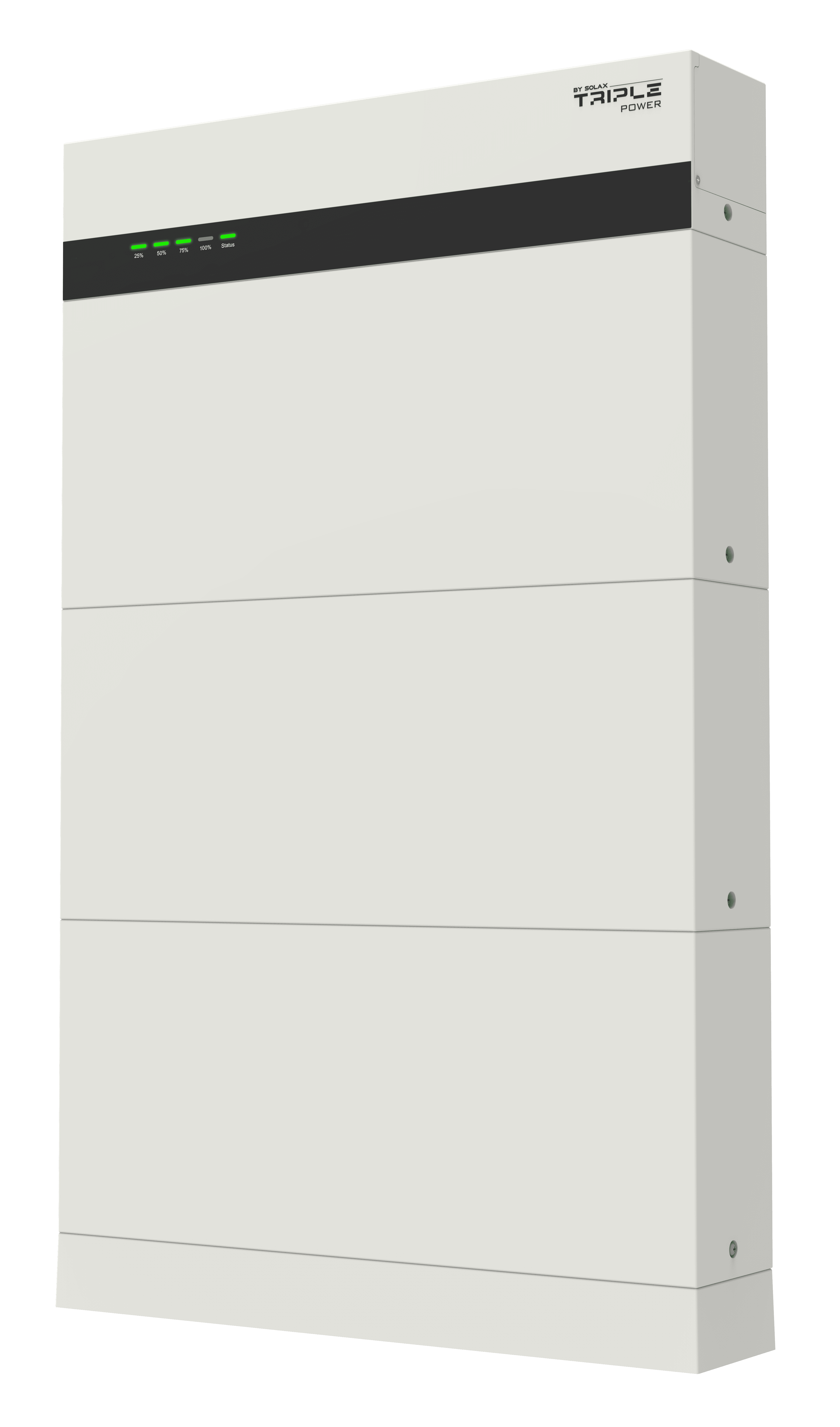

HS50E-D

5.1 kWh-92.1 kWh

The HS50E-D features a modular design with flexible capacity expansion from 5.12kWh up to 92.16kWh, ideal for evolving energy needs. Lightweight and compact, it supports both wall and floor mounting and is compatible with SolaX single and three-phase inverters, ensuring broad installation adaptability.

Data Download

Product Advantage

The HS50E-D supports 50A charge/discharge current and operates in extreme temperatures from -30°C to 53°C. With an IP66 rating, cobalt-free LFP battery, and advanced AI-driven SOC/SOH algorithms, it delivers long-lasting energy storage with smart management and OTA upgrades.

Easy Installation & Compatibility

Lightweight, compact, and easy to set up
Available in wall-mounted or floor-mounted options
Fit a wide range of SolaX single and three-phase inverters

High Performance

Max. 50A charge/discharge current
-30°C to 53°C operational range with advanced heating technology
Higher SOC/SOH accuracy through AI battery model algorithms
Automotive-grade cell sampling chips for superior stability and safety

Safety & Reliability

Certified IP66 for outstanding protection
Cobalt-free LFP battery: safe, long-lasting, efficient, high energy density
A robust cycle life of over 6,000 times, ensuring longevity and reliability

Flexibility

Modular design, flexible expansion
Start with 5.12kWh, expand up to 92.16kWh

Product Parameters

T-BAT HS 5
T-BAT HS 10
T-BAT HS 15
T-BAT HS 20
T-BAT HS 25
T-BAT HS 30

T-BAT HS 5
- SYSTEM SPECIFICATION

  Number of modules 1 Module
  Norminal capacity [kWh] 5.1
  Nominal voltage [V] 102.4
  Standard power [kW]
  3
  Max. charge/discharge current (A) 50
  Dimensions (L × W × H) [mm] 730*150*558
- GENERAL

  BMS Dimensions (L × W × H) [mm] 730*150*165
  BMS Weight [kg] 9.7
  Battery type Li-ion (LFP)
  Battery module [kWh] 5.1
  Battery module dimensions (L × W × H) [mm] 730*150*318
  Battery module weight [kg] 47
- ENVIRONMENTAL REQUIREMENTS

  Environment Outdoor / Indoor (*Please refer to the user manual for installation condition)
  Protection degree IP66
T-BAT HS 10
- SYSTEM SPECIFICATION

  Number of modules 2 Module
  Norminal capacity [kWh] 10.2
  Nominal voltage [V] 204.8
  Standard power [kW]
  6.1
  Max. charge/discharge current (A) 50
  Dimensions (L × W × H) [mm] 730*150*876
- GENERAL

  BMS Dimensions (L × W × H) [mm] 730*150*165
  BMS Weight [kg] 9.7
  Battery type Li-ion (LFP)
  Battery module [kWh] 5.1
  Battery module dimensions (L × W × H) [mm] 730*150*318
  Battery module weight [kg] 47
- ENVIRONMENTAL REQUIREMENTS

  Environment Outdoor / Indoor (*Please refer to the user manual for installation condition)
  Protection degree IP66
T-BAT HS 15
- SYSTEM SPECIFICATION

  Number of modules 3 Module
  Norminal capacity [kWh] 15.3
  Nominal voltage [V] 307.2
  Standard power [kW]
  9.2
  Max. charge/discharge current (A) 50
  Dimensions (L × W × H) [mm] 730*150*1194
- GENERAL

  BMS Dimensions (L × W × H) [mm] 730*150*165
  BMS Weight [kg] 9.7
  Battery type Li-ion (LFP)
  Battery module [kWh] 5.1
  Battery module dimensions (L × W × H) [mm] 730*150*318
  Battery module weight [kg] 47
- ENVIRONMENTAL REQUIREMENTS

  Environment Outdoor / Indoor (*Please refer to the user manual for installation condition)
  Protection degree IP66
T-BAT HS 20
- SYSTEM SPECIFICATION

  Number of modules 4 Modules
  Norminal capacity [kWh] 20.4
  Nominal voltage [V] 409.6
  Standard power [kW]
  12.2
  Max. charge/discharge current (A) 50
  Dimensions (L × W × H) [mm]
  730*150*1194
  730*150*491
- GENERAL

  BMS Dimensions (L × W × H) [mm] 730*150*165
  BMS Weight [kg] 9.7
  Battery type Li-ion (LFP)
  Battery module [kWh] 5.1
  Battery module dimensions (L × W × H) [mm] 730*150*318
  Battery module weight [kg] 47
- ENVIRONMENTAL REQUIREMENTS

  Environment Outdoor / Indoor (*Please refer to the user manual for installation condition)
  Protection degree IP66
T-BAT HS 25
- SYSTEM SPECIFICATION

  Number of modules 5 Modules
  Norminal capacity [kWh] 25.6
  Nominal voltage [V] 512
  Standard power [kW]
  15.3
  Max. charge/discharge current (A) 50
  Dimensions (L × W × H) [mm]
  730*150*1194
  730*150*809
- GENERAL

  BMS Dimensions (L × W × H) [mm] 730*150*165
  BMS Weight [kg] 9.7
  Battery type Li-ion (LFP)
  Battery module [kWh] 5.1
  Battery module dimensions (L × W × H) [mm] 730*150*318
  Battery module weight [kg] 47
- ENVIRONMENTAL REQUIREMENTS

  Environment Outdoor / Indoor (*Please refer to the user manual for installation condition)
  Protection degree IP66
T-BAT HS 30
- SYSTEM SPECIFICATION

  Number of modules 6 Modules
  Norminal capacity [kWh] 30.7
  Nominal voltage [V] 614.4
  Standard power [kW]
  18.4
  Max. charge/discharge current (A) 50
  Dimensions (L × W × H) [mm]
  730*150*1194
  730*150*1127
- GENERAL

  BMS Dimensions (L × W × H) [mm] 730*150*165
  BMS Weight [kg] 9.7
  Battery type Li-ion (LFP)
  Battery module [kWh] 5.1
  Battery module dimensions (L × W × H) [mm] 730*150*318
  Battery module weight [kg] 47
- ENVIRONMENTAL REQUIREMENTS

  Environment Outdoor / Indoor (*Please refer to the user manual for installation condition)
  Protection degree IP66
