C&I ESS

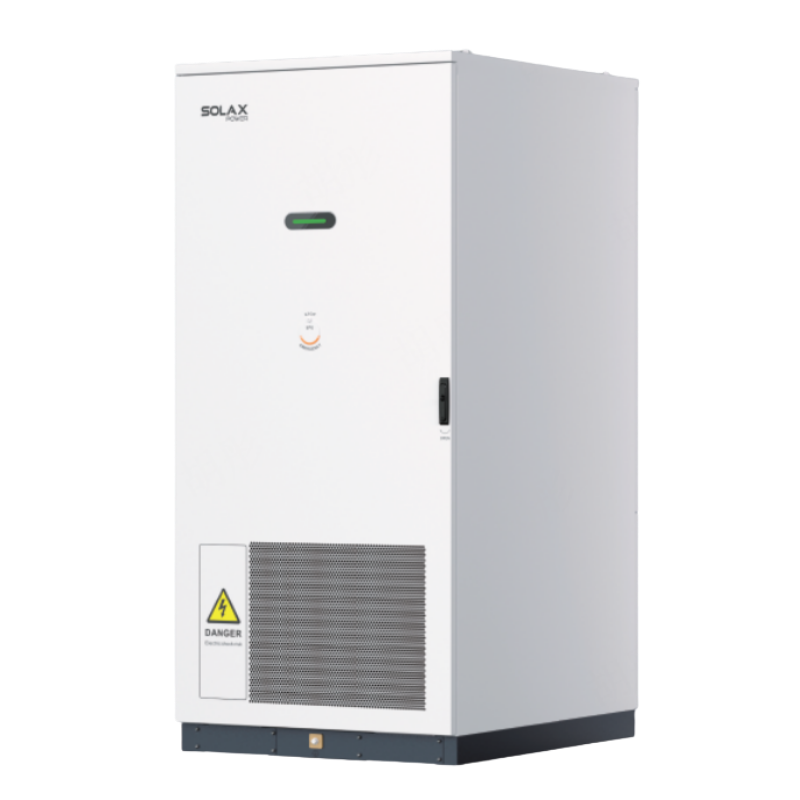

ESS-TRENE Liquid Cooling
-
All-in-One Liquid Cooling Cabinet
The ESS-TRENE Liquid Cooling system is a next-generation energy storage solution tailored for the Asian and African markets. It features a fully integrated modular design with factory pre-installation and debugging for true plug-and-play deployment. The system is powered by 3S full-stack self-researched technology, ensuring stable, lifecycle operation without the risks of multi-vendor compatibility. Intelligence is driven by the Solax AI cloud platform, enabling adaptive optimization and unmanned station management for reduced operational costs.
Product Advantage
The ESS-TRENE Liquid cooling unit delivers certified capacity and efficiency for high-demand applications. It is available in two configurations: 99.9kW / 261kWh and 125kW / 261kWh. The system achieves a maximum Round-Trip Efficiency (RTE) of ≥ 90%, ensuring high-performance energy conversion. Safety is enforced through real-time battery cell monitoring, providing a 7-day advance warning for thermal runaway risks. Protection is layered across four levels—PACK, cluster, PCS, and AC side—ensuring precise shutdown to minimize losses in the event of an anomaly.
High Performance
3S"full-stack self-research avoids the risks of multi-vendor compatibility and ensures stable operation throughout the entire lifecycle
High efficiency energy conversion, system maximum RTE ≥ 90%
Assured Safety
Real-time monitoring of the entire battery cell, with a 7-day advance warning of thermal runaway
PACK , cluster , PCS, and AC side four levels of overcurrent protection , precise shutdown to reduce losses
Multilevel fire safety surplus design, timely firefighting, and elimination of explosions
Intelligent Design
Equipped with the solax AI cloud platform, adaptive optimization strategies maximize user benefits
Unmanned station management, one-click upgrades, fingertip scheduling, reducing operation and maintenance costs
Flexible Adaptability
Modular integrated design, factory pre-installation and debugging
Plug and play on-site, convenient connection, simple configuration
Multiple machines installed seamlessly side by side, flexible deployment, and elastic expansion
Product Parameters
-
TRE261-2A-
AC INPUT & OUTPUT (ON-GRID)
Rated output power 125 kW Rated AC voltage 3 / N / PE, 220 / 380 a.c. V
3 / N / PE, 230 / 400 a.c. V
Rated AC frequency 50 Hz / 60 Hz -
DC SIDE
Battery type LFP / 314 Ah Nominal energy 261 kWh Nominal voltage 832 d.c. V -
GENERAL INFORMATION
Dimensions (W×D×H) 1090 × 2360 × 1350 mm Weight 2450 kg Operating temperature range -30 ~ 55°C (＞45℃ derating) Max. operation altitude 3000 m Cooling concept
Liquid cooling Ingress protection IP55 If there is any change in product size and parameters, please refer to the latest information without prior notice.
-
-
TRE261-2D
-
AC INPUT & OUTPUT (ON-GRID)
Rated output power 99.9 kW Rated AC voltage 3 / N / PE, 220 / 380 a.c. V
3 / N / PE, 230 / 400 a.c. V
Rated AC frequency 50 Hz / 60 Hz -
DC SIDE
Battery type LFP / 314 Ah Nominal energy 261 kWh Nominal voltage 832 d.c. V -
GENERAL INFORMATION
Dimensions (W×D×H) 1090 × 2360 × 1350 mm Weight 2450 kg Operating temperature range -30 ~ 55°C (＞45℃ derating) Max. operation altitude 3000 m Cooling concept
Liquid cooling Ingress protection IP55 If there is any change in product size and parameters, please refer to the latest information without prior notice.
-
Data Download
-
Datasheet
-
File nameLanguageFormatSizeLast updateddownload
