Battery Accessories

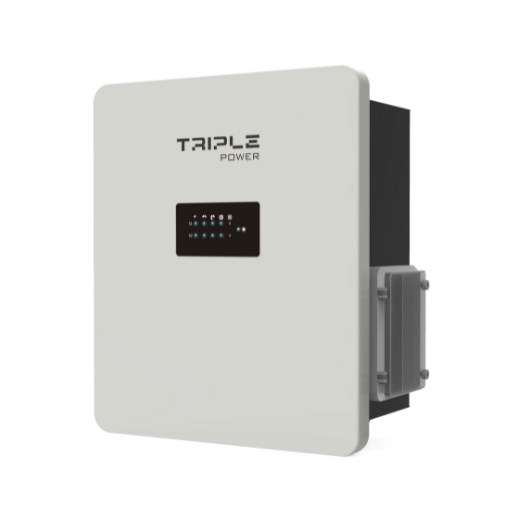

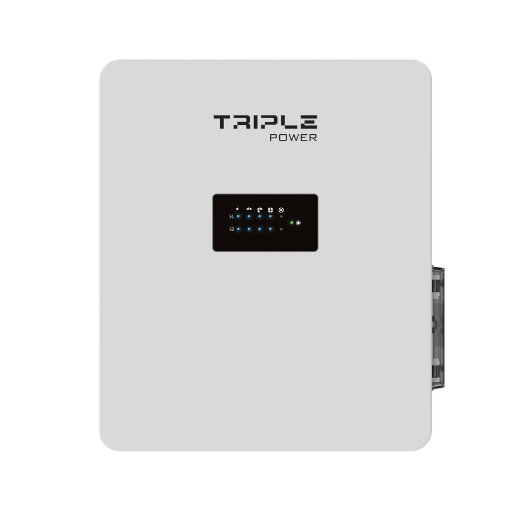

BMS-Parallel Box-II G2
-
Compatible with T-BAT-SYS-HV-3.0, T-BAT-SYS-HV-5.8
Compatible with T-BAT-SYS-HV-3.0 and T-BAT-SYS-HV-5.8 models, it supports two-column parallel configurations, enabling seamless scalability for ESS applications. This smart layout optimizes inverter capacity usage while minimizing system complexity.
-
Watch Video
Product Advantage
Engineered to optimize energy output, the BMS Parallel Box-II G2 effortlessly expands battery capacity and prolongs battery lifespan. By supporting parallel connection of two battery strings, it enhances ESS (Energy Storage System) performance with greater operating efficiency and longer runtime.
Reliable Performance
Easily expand capacity
Extend battery lifespan
Flexible Adaptability
Support two-column parallel connection
Support T-BAT-SYS-HV-3.0, T-BAT-SYS-HV-5.8
Product Parameters
-
BMS-PARALLEL BOX-II G2-
GENERAL
Dimensions (W x H x D) 368 x 334 x 153.5 mm Weight 8.7 kg Expected life 5 years Protection IP65 -
ENVIRONMENT REQUIREMENT
Input / Output voltage range 70 ~ 550 V Standard power 11.5 kW Maximum power 16.1 kW -
CERTIFICATION
Safety IEC / EN 62477-1, IEC / EN 61439-1, IEC / EN 61439-2 EMC EN 61000-6-1 / 2 / 3 /4
-
Data Download
-
Datasheet
-
User Manual
-
Quick Installation Guide
-
Declaration
-
File nameLanguageFormatSizeLast updateddownload
