Residential Energy Storage Inverters

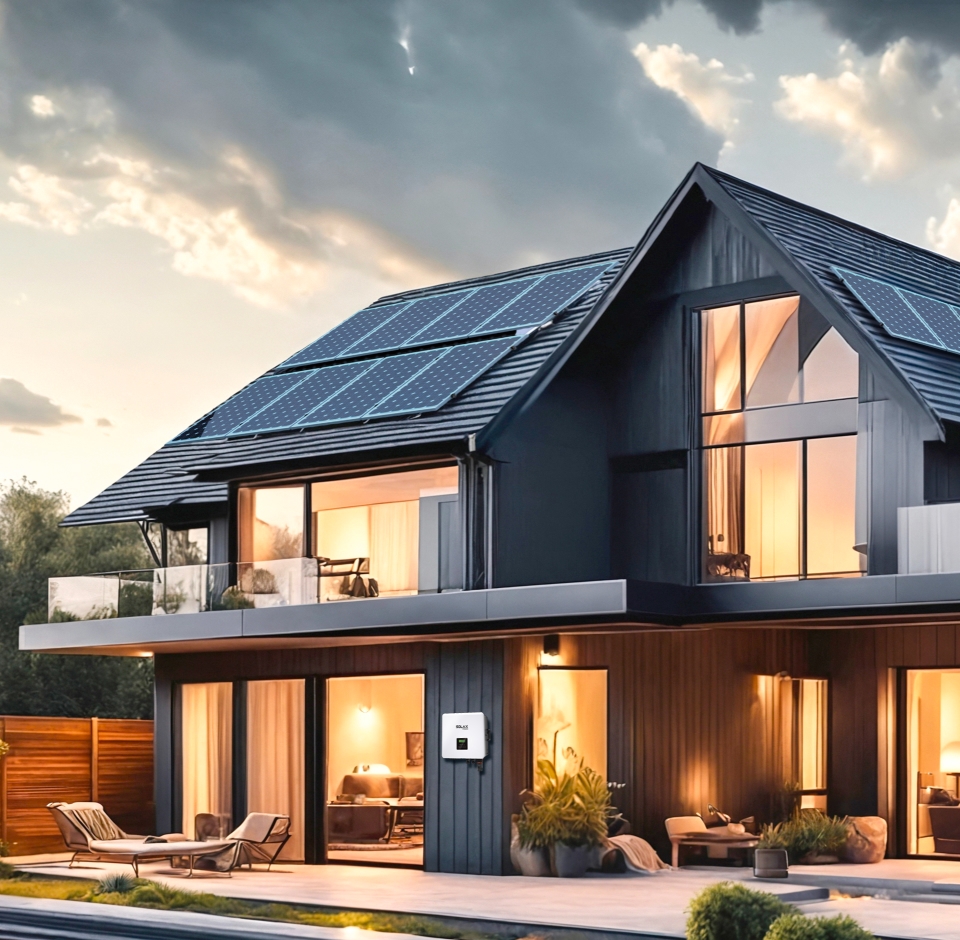

Ideal for solar energy storage, home battery backup, and off-grid power solutions, it supports sustainable living and maximizes solar efficiency.

Introduction

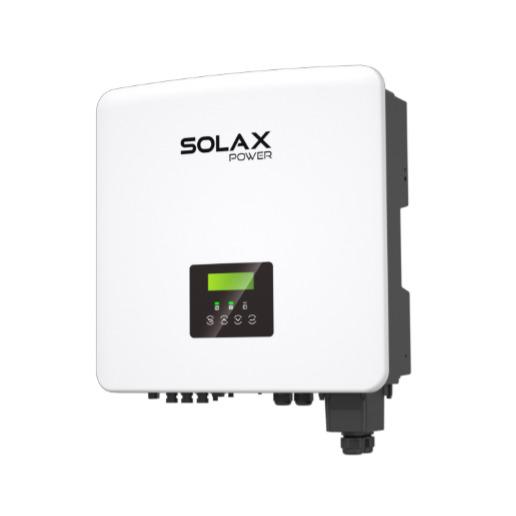

SolaX Residential Energy Storage Inverter converts solar energy into usable AC power while managing battery storage for optimal efficiency. With high efficiency, smart monitoring, and robust protection, our hybrid inverter ensures reliable performance.

  • High-Efficiency Energy Conversion

    Maximize your solar power potential with a triple MPPT system, ensuring optimal energy harvesting even for complex rooftops. Each MPPT supports up to 20A current, enhancing system performance and efficiency. The energy inverter also features dual battery ports, allowing up to 25A charging per port, ensuring faster charging and greater storage capacity.

    • Up to 3

      MPP Trackers

    • Up to 20A

      MPPT Current per Tracker

    • 2 Battery Ports

      Up to 25A x 2 Charging Current

  • Reliable Backup Power & Safety

    Stay powered during outages with 200% EPS output, providing extra emergency power when needed most. The inverter features an ultra-fast UPS switching time (<10ms) for seamless transitions, ensuring uninterrupted power for critical loads. Up to IP66-rated enclosure and SPD II surge protection, it withstands harsh environments and extreme weather.

    • Up to 200%

      EPS Output Power

    • <10ms

      UPS Switching Time

    • Up to IP66

      Weatherproof Protection

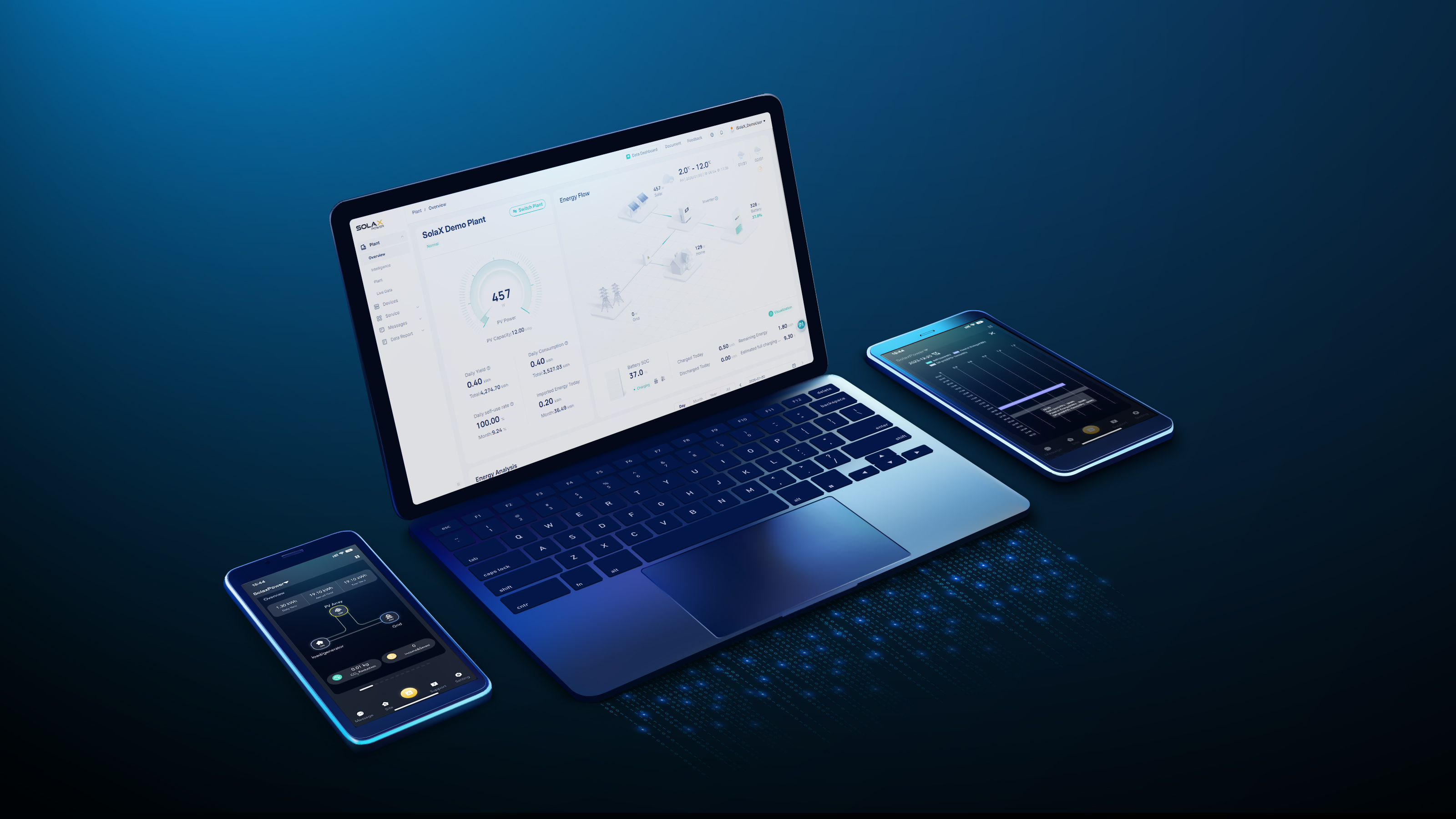

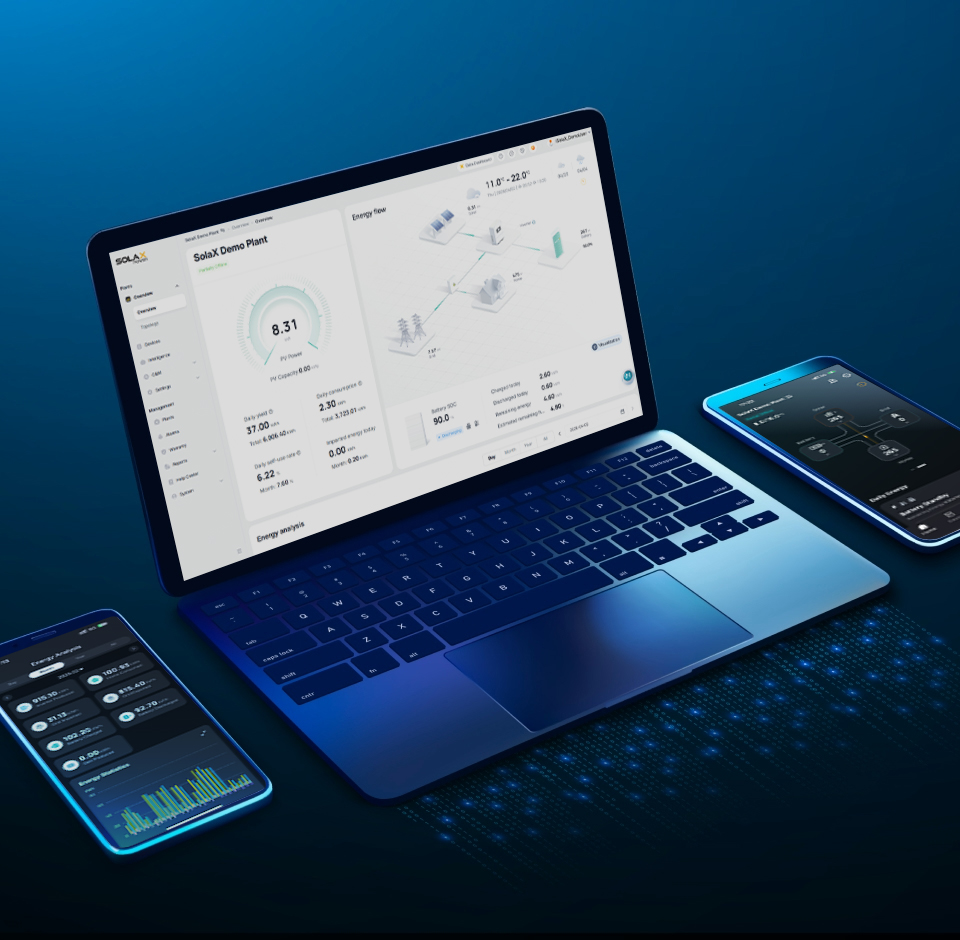

  • Smart Energy Management & Versatile Applications

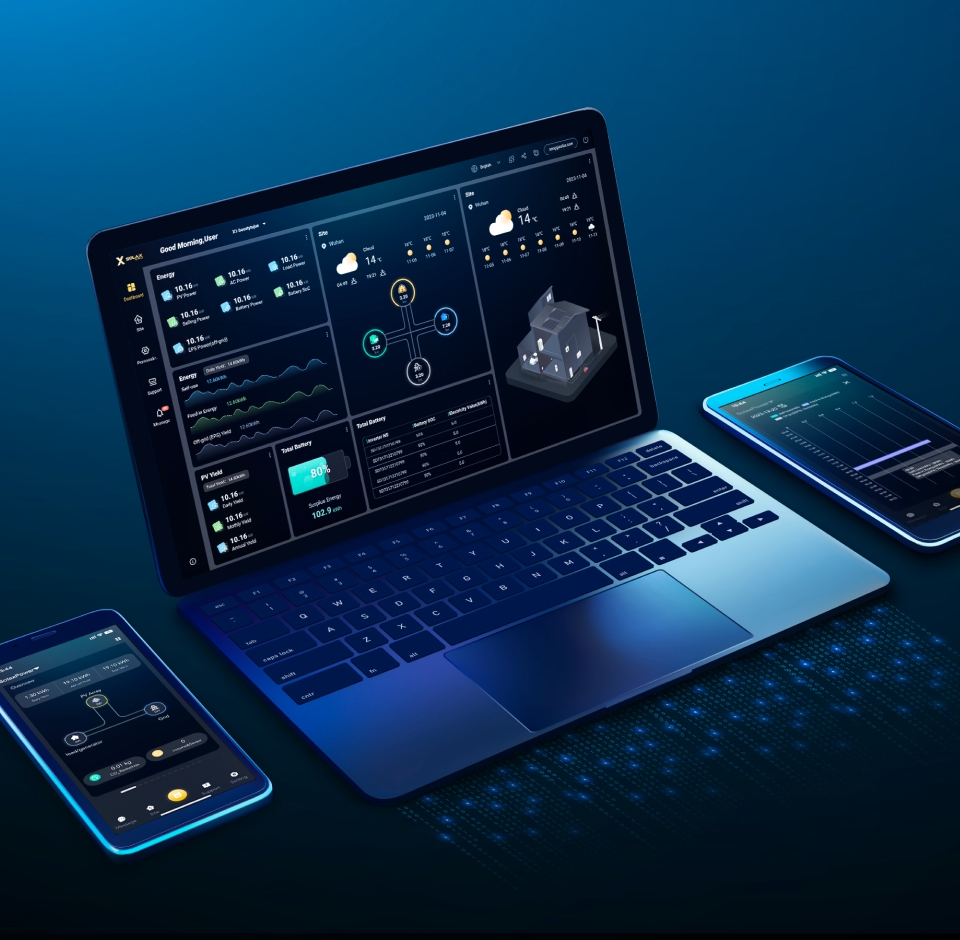

    Optimize energy usage with intelligent load management, dynamically allocating power to priority appliances and reducing electricity costs. The hybrid inverter supports multiple communication interfaces, ensuring seamless integration with heat pumps, energy meters, and CTs.

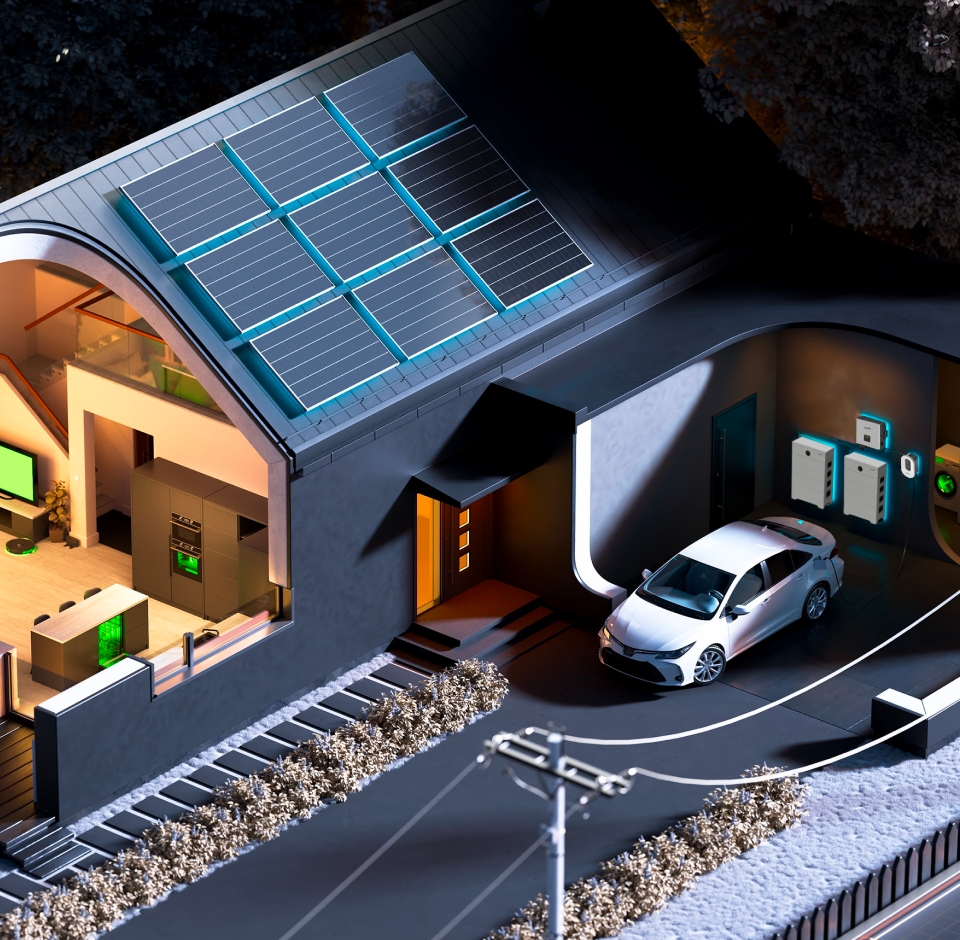

    • Solar | Wind | Diesel | EV Charging | V2X

      Multi-Energy Integration

      Solar + Battery + EV Charging (PV + Storage + EV)

      Solar + Battery + Wind Power (PV + Storage + Wind)

      Solar + Battery + Diesel Generator (PV + Storage + Diesel)

      Vehicle-to-Everything (V2X) Technology – Enabling EV-to-grid power exchange.

Product Parameters

  • X3-HYB-4.0-P
  • X3-HYB-5.0-P
  • X3-HYB-6.0-P
  • X3-HYB-8.0-P
  • X3-HYB-10.0-P
  • X3-HYB-12.0-P
  • X3-HYB-15.0-P
  • X3-HYB-4.0-P
    • PV INPUT
      Max. recommended PV array power8 kWp
      MPPT voltage range110~950V
      No. of MPP. trackers / strings per MPPT2(1/1)
      Max. input current per MPPT20A/20 A




    • AC INPUT & OUTPUT (ON-GRID)
      Rated output power4000 W
      Rated AC voltage

      3/N/PE,220/380V

      3/N/PE,230/400V


    • EPS(OFF-GRID) OUTPUT(WITH BATTERY)
      Peak EPS output power2 times of rated power, 10 s
      Switchover time<10 ms



    • GENERAL
      Ingress protectionIP66
      Dimensions (W /H / D)560x503x210 mm
      Net Weight38 kg


  • X3-HYB-5.0-P
    • PV INPUT
      Max. recommended PV array power10 kWp
      MPPT voltage range110~950V
      No. of MPP. trackers / strings per MPPT2(1/1)
      Max. input current per MPPT20A/20 A




    • AC INPUT & OUTPUT (ON-GRID)
      Rated output power5000 W

      (AS 4777 4999 W)

      Rated AC voltage

      3/N/PE,220/380V

      3/N/PE,230/400V


    • EPS(OFF-GRID) OUTPUT(WITH BATTERY)
      Peak EPS output power2 times of rated power, 10 s
      Switchover time<10 ms



    • GENERAL
      Ingress protectionIP66
      Dimensions (W /H / D)560x503x210 mm
      Net Weight38 kg


  • X3-HYB-6.0-P
    • PV INPUT
      Max. recommended PV array power12 kWp
      MPPT voltage range110~950V
      No. of MPP. trackers / strings per MPPT2(1/1)
      Max. input current per MPPT20A/20 A




    • AC INPUT & OUTPUT (ON-GRID)
      Rated output power6000 W
      Rated AC voltage

      3/N/PE,220/380V

      3/N/PE,230/400V


    • EPS(OFF-GRID) OUTPUT(WITH BATTERY)
      Peak EPS output power2 times of rated power, 10 s
      Switchover time<10 ms



    • GENERAL
      Ingress protectionIP66
      Dimensions (W /H / D)560x503x210 mm
      Net Weight38 kg


  • X3-HYB-8.0-P
    • PV INPUT
      Max. recommended PV array power16 kWp
      MPPT voltage range110~950V
      No. of MPP. trackers / strings per MPPT3(1/1/1)
      Max. input current per MPPT20A / 20A / 20A




    • AC INPUT & OUTPUT (ON-GRID)
      Rated output power8000 W
      Rated AC voltage

      3/N/PE,220/380V

      3/N/PE,230/400V


    • EPS(OFF-GRID) OUTPUT(WITH BATTERY)
      Peak EPS output power2 times of rated power, 10 s
      Switchover time<10 ms



    • GENERAL
      Ingress protectionIP66
      Dimensions (W /H / D)560x503x210 mm
      Net Weight38 kg


  • X3-HYB-10.0-P
    • PV INPUT
      Max. recommended PV array power20 kWp
      MPPT voltage range110~950V
      No. of MPP. trackers / strings per MPPT3(1/1/1)
      Max. input current per MPPT20A/20A/20A




    • AC INPUT & OUTPUT (ON-GRID)
      Rated output power

      10000 W

      (AS 4777 9999 W)

      Rated AC voltage

      3/N/PE,220/380V

      3/N/PE,230/400V


    • EPS(OFF-GRID) OUTPUT(WITH BATTERY)
      Peak EPS output power2 times of rated power, 10 s
      Switchover time<10 ms



    • GENERAL
      Ingress protectionIP66
      Dimensions (W /H / D)560x503x210 mm
      Net Weight38 kg


  • X3-HYB-12.0-P
    • PV INPUT
      Max. recommended PV array power24 kWp
      MPPT voltage range110~950V
      No. of MPP. trackers / strings per MPPT3(1/1/1)
      Max. input current per MPPT20A/20A/20A




    • AC INPUT & OUTPUT (ON-GRID)
      Rated output power12000 W
      Rated AC voltage

      3/N/PE,220/380V

      3/N/PE,230/400V


    • EPS(OFF-GRID) OUTPUT(WITH BATTERY)
      Peak EPS output power2 times of rated power, 10 s
      Switchover time<10 ms



    • GENERAL
      Ingress protectionIP66
      Dimensions (W /H / D)560x503x210 mm
      Net Weight38 kg


  • X3-HYB-15.0-P
    • PV INPUT
      Max. recommended PV array power30 kWp
      MPPT voltage range110~950V
      No. of MPP. trackers / strings per MPPT3(1/1/1)
      Max. input current per MPPT20A/20A/20A




    • AC INPUT & OUTPUT (ON-GRID)
      Rated output power

      15000 W

      (4S 4777 14999 W)

      Rated AC voltage

      3/N/PE,220/380V

      3/N/PE,230/400V


    • EPS(OFF-GRID) OUTPUT(WITH BATTERY)
      Peak EPS output power2 times of rated power, 10 s
      Switchover time<10 ms



    • GENERAL
      Ingress protectionIP66
      Dimensions (W /H / D)560x503x210 mm
      Net Weight38 kg

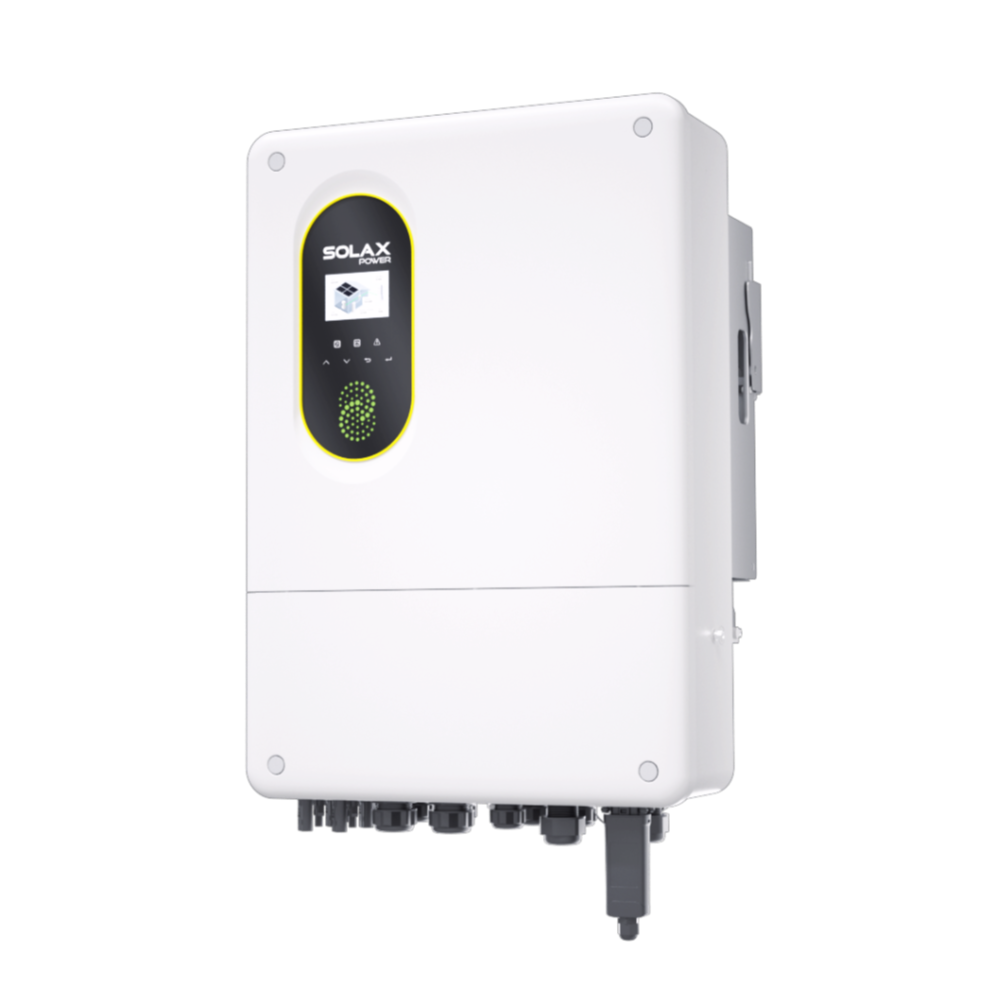

Related Products
