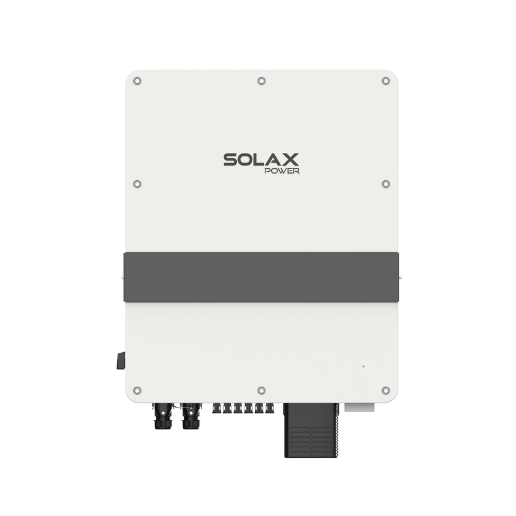

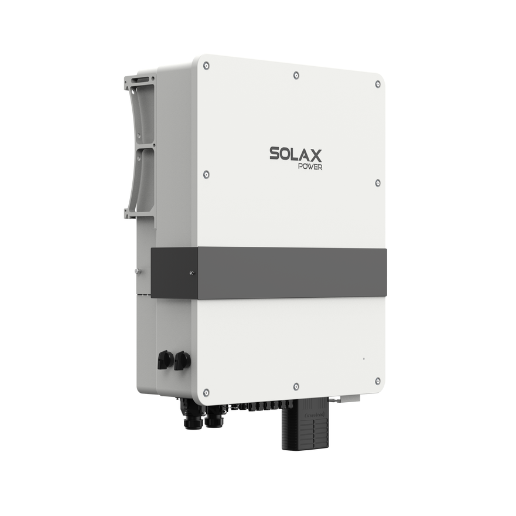

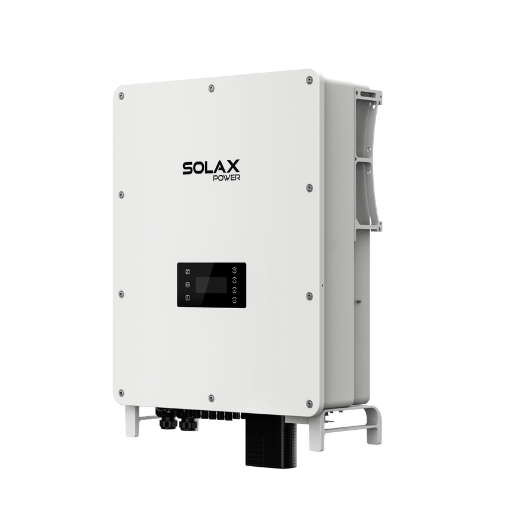

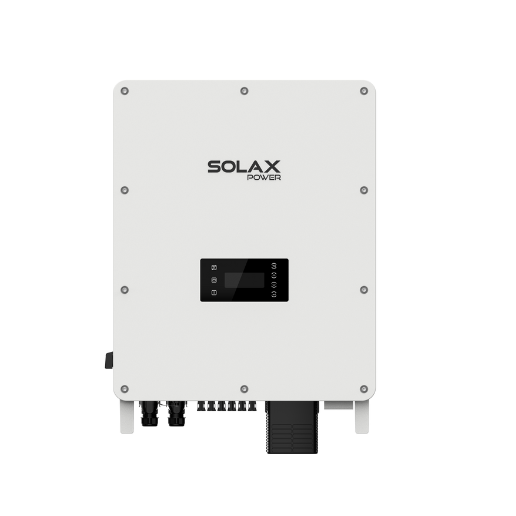

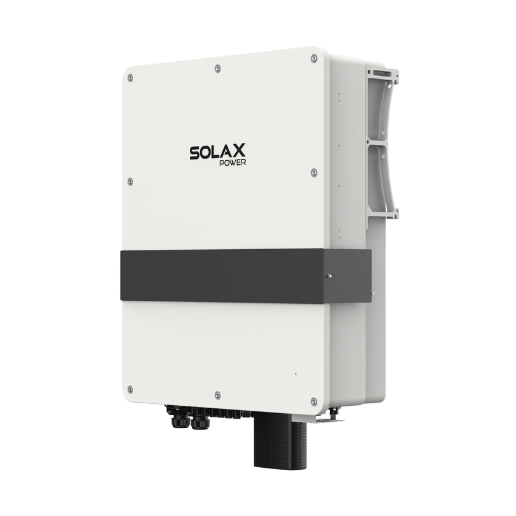

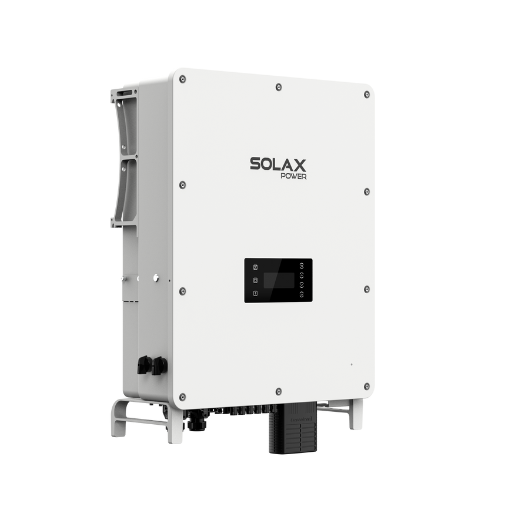

Hybrid Inverter
X3-AELIO
-
49.9kW / 50kW / 60kW / 61kW
The SolaX X3-AELIO hybrid solar inverter combines intelligent energy management with high efficiency. With VPP readiness and a fast switch-over time of less than 10ms, it supports both on-grid and off-grid operation. Dual independent battery ports allow for easy capacity expansion.
Product Advantage
The X3-AELIO ensures high energy efficiency with 200% PV input and 150% EPS output for 10 seconds. Its smart microgrid function balances power between systems, while features like wireless metering and 24/7 scheduling help optimize energy storage.
Flexible Configuration
Parallel operation: supports up to 10 parallel systems, meeting power requirements from 49.9 kW to 600 kW.
Battery options: three battery choices available.
PV oversizing: supports up to 200% PV oversizing.
Safe and Reliable
Three-Phase unbalance: Inverter supports 100% three-phase unbalance.
Long-Term overload: inverter supports 110% long-term overload.
Seamless switching: inverter supports 10ms on-grid/off-grid switching.
Off-Grid overload: inverter supports 150% off-grid overload.
Intelligent and Convenient
Remote monitoring: supports web/app remote data viewing and remote OTA updates.
Versatile operating modes: supports various operating modes to meet different application scenarios such as self-consumption, peak shaving, and demand management.
VPP Integration: supports VPP applications through IEEE2030.5, OpenADR.※ Feature to be upgraded in the future
Generator control: work seamlessly with generator to save fuel and back up
Product Parameters
-
X3-AELIO-49.9K-
PV INPUT
Max. recommended PV array power 100 kWp MPPT voltage range 160 ~ 950 V No. of MPP. trackers / strings per MPPT 5/2 Max. input current per MPPT 40 A -
AC INPUT & OUTPUT (ON-GRID)
Rated output power 49.9 kW -
EPS (OFF-GRID) OUTPUT
Rated EPS output power 49.9 kVA Switchover time <10 ms -
GENERAL
Dimensions (W × H × D) 670 × 820× 257 mm Net Weight < 100 kg
-
-
X3-AELIO-49.9K-P
-
PV INPUT
Max. recommended PV array power 120 kWp MPPT voltage range 160 ~ 950 V No. of MPP. trackers / strings per MPPT 6/2 Max. input current per MPPT 40 A -
AC INPUT & OUTPUT (ON-GRID)
Rated output power 49.9 kW -
EPS (OFF-GRID) OUTPUT
Rated EPS output power 49.9 kVA Switchover time <10 ms -
GENERAL
Dimensions (W × H × D) 670 × 820× 257 mm Net Weight < 105 kg
-
-
X3-AELIO-50K
-
PV INPUT
Max. recommended PV array power 100 kWp MPPT voltage range 160 ~ 950 V No. of MPP. trackers / strings per MPPT 5/2 Max. input current per MPPT 40 A -
AC INPUT & OUTPUT (ON-GRID)
Rated output power 50 kW -
EPS (OFF-GRID) OUTPUT
Rated EPS output power 50.0 kVA Switchover time <10 ms -
GENERAL
Dimensions (W × H × D) 670 × 820× 257 mm Net Weight < 100 kg
-
-
X3-AELIO-60K
-
PV INPUT
Max. recommended PV array power 120 kWp MPPT voltage range 160 ~ 950 V No. of MPP. trackers / strings per MPPT 6/2 Max. input current per MPPT 40 A -
AC INPUT & OUTPUT (ON-GRID)
Rated output power 60 kW -
EPS (OFF-GRID) OUTPUT
Rated EPS output power 60.0 kVA Switchover time <10 ms -
GENERAL
Dimensions (W × H × D) 670 × 820× 257 mm Net Weight < 105 kg
-
-
X3-AELIO-61K
-
PV INPUT
Max. recommended PV array power 120 kWp MPPT voltage range 160 ~ 950 V No. of MPP. trackers / strings per MPPT 6/2 Max. input current per MPPT 40 A -
AC INPUT & OUTPUT (ON-GRID)
Rated output power 61 kW -
EPS (OFF-GRID) OUTPUT
Rated EPS output power 61.0 kVA Switchover time <10 ms -
GENERAL
Dimensions (W × H × D) 670 × 820× 257 mm Net Weight < 105 kg
-
