Residential Batteries
LD5(EU)
-
5.1kWh

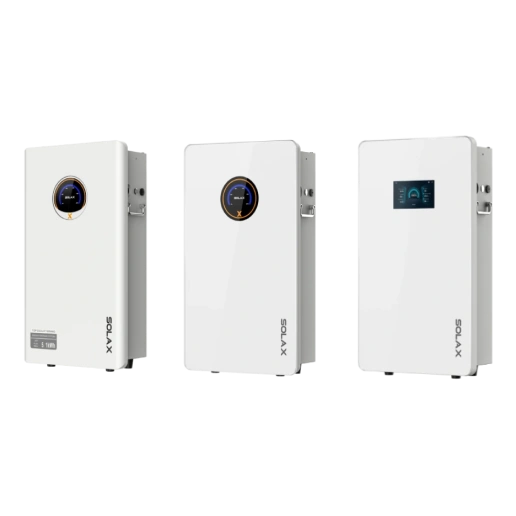

The LD5 low-voltage battery is available in sheet metal and tempered glass versions, with LED or LCD interfaces to suit different installation preferences. Its Cell-to-Pack (CTP) design optimizes internal space and energy density, while plug-and-play terminals simplify installation and system integration.
Product Advantage
The LD5 battery supports up to 100 A charging and 130 A discharging current, with 10.2 kW peak output for 10 seconds. The rugged IP65-rated enclosure, optional battery heating help ensure dependable operation across demanding residential energy storage applications.
Assured Reliability
Aerosol fire suppression and CO detector for precise protection
Reliable feedback-type DC circuit breaker
High Performance
Max. charge/ discharge current: 100A/ 130A
Peak output power 10.2 kW for 10s
Smart Management
Remote fault diagnosis, upgrade and maintenance
Rugged IP65 design with optional battery heating (Optional)①
Flexible Adaptability
CTP (Cell-to-Pack) design maximizes space and energy density for superiorperformance
Plug-and-Play terminals design
Product Parameters
-
LD5-
BATTERY MODULE
Battery model LD5-ME Battery type LFP Nominal voltage 51.2 d.c. V Operating voltage range 42.4 - 57.6 d.c. V Scalability Max. 16 pcs in parallel Max. charge / discharge current 100 A / 130 A -
GENERAL
Dimensions (L ×W × H)
422x 759 x 209 mm
Weight
48.0(±1) kg
-
ENVIRONMENTAL REQUIREMENTS
Ingress protection IP65 Relative humidity 4 – 100% RH (condensing) Max. operating altitude 3000 m
-
