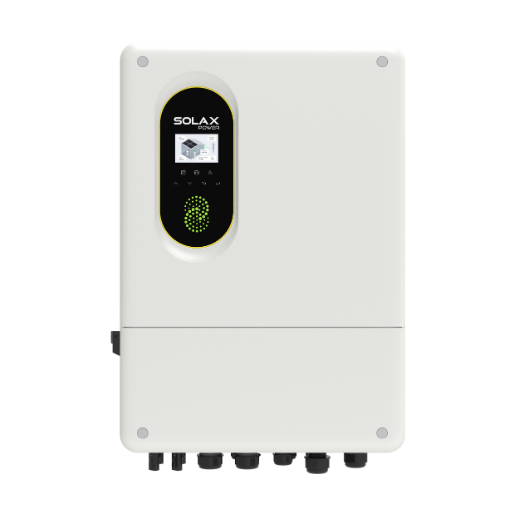

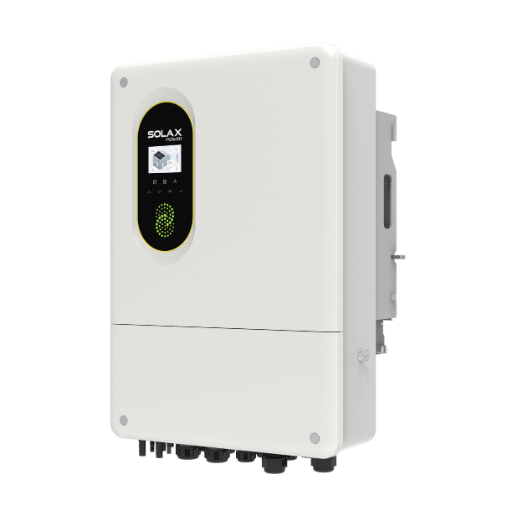

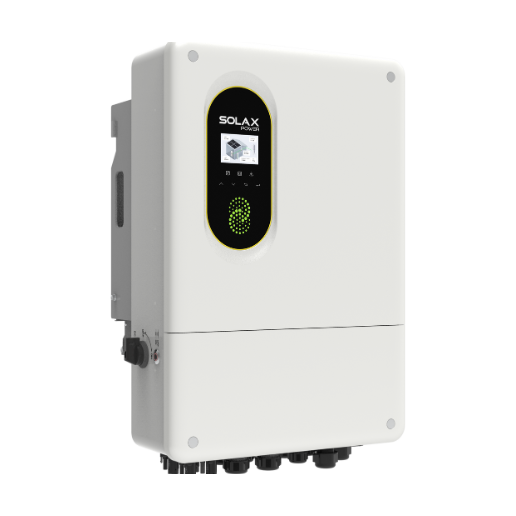

Hybrid Inverter

X3-NEO-LV

5.0kW / 8.0kW / 10.0kW / 12.0kW / 15.0kW / 20.0kW

The X3-NEO-LV suppors parallel on-grid and off-grid operation—up to 3 units. Its microgrid and generator compatibility ensures seamless integration across various energy environments, while the 36A DC input per MPPT maximizes compatibility with high-power solar panels.

Watch Video
Data Download

Product Advantage

It delivers up to 200% PV oversizing and 110% AC output, ensuring high efficiency and flexibility. The X3-NEO-LV offers IP65 protection, built-in SPD, and optional AFCI for safety. Economically, it supports high-power solar panels with low startup voltage for extended operation.

Flexible Adaptability

Max. 3pcs parallel for on-grid and off-grid
Microgrid and generator function for versatile operations* (Feature to be upgraded in the future)

Smart Management

Global MPP scan for optimal energy harvest* (Feature to be upgraded in the
future)
Smart loads management

High Performance

Max. 2 MPPTs for versatile application scenarios
200% oversizing and 200% PV input power
Max. 36 A PV input per MPPT
Low start-up voltage for higher energy harvest

Assured Reliability

Battery terminal temperature detection
IP65 ingress protection
Type II SPD on AC&DC side
AFCI protection (optional)* (Feature to be upgraded in the future)
Up to 200% EPS output for 10s
Single unit UPS-level switchover time < 3 ms

Product Parameters

X3-NEO-5K-LV
X3-NEO-8K-LV
X3-NEO-10K-LV
X3-NEO-12K-LV
X3-NEO-15K-LV
X3-NEO-20K-LV

X3-NEO-5K-LV
- PV INPUT

  Max. recommended PV array power 10 kWp
  MPPT voltage range 160 ~ 950 V
  No. of MPP. trackers / strings per MPPT 2 / (1 / 1)
  Max. input current per MPPT 18 A / 18 A
- AC INPUT & OUTPUT (ON-GRID)

  Rated output power 5 kW
  Rated AC voltage
  3W / N / PE, 220 / 380 V
  3W / N / PE, 230 / 400 V
  3W / N / PE, 240 / 415 V
- EPS(OFF-GRID) OUTPUT(WITH BATTERY)

  Peak EPS output power
  10 kVA
  2 times of rated power, 10 s
  Switchover time <3 ms
- GENERAL

  Ingress protection IP65
  Dimensions (W /H / D) 520 × 705 × 258 mm
  Net Weight 44.6 kg
X3-NEO-8K-LV
- PV INPUT

  Max. recommended PV array power 16 kWp
  MPPT voltage range 160 ~ 950 V
  No. of MPP. trackers / strings per MPPT 2 / (1 / 1)
  Max. input current per MPPT 18 A / 18 A
- AC INPUT & OUTPUT (ON-GRID)

  Rated output power 8 kW
  Rated AC voltage
  3W / N / PE, 220 / 380 V
  3W / N / PE, 230 / 400 V
  3W / N / PE, 240 / 415 V
- EPS(OFF-GRID) OUTPUT(WITH BATTERY)

  Peak EPS output power
  16 kVA
  2 times of rated power, 10 s
  Switchover time <3 ms
- GENERAL

  Ingress protection IP65
  Dimensions (W /H / D) 520 × 705 × 258 mm
  Net Weight 44.6 kg
X3-NEO-10K-LV
- PV INPUT

  Max. recommended PV array power 20 kWp
  MPPT voltage range 160 ~ 950 V
  No. of MPP. trackers / strings per MPPT 2 / (2 / 1)
  Max. input current per MPPT 36 A / 18 A
- AC INPUT & OUTPUT (ON-GRID)

  Rated output power 10 kW
  Rated AC voltage
  3W / N / PE, 220 / 380 V
  3W / N / PE, 230 / 400 V
  3W / N / PE, 240 / 415 V
- EPS(OFF-GRID) OUTPUT(WITH BATTERY)

  Peak EPS output power
  20 kVA
  2 times of rated power, 10 s
  Switchover time <3 ms
- GENERAL

  Ingress protection IP65
  Dimensions (W /H / D) 520 × 705 × 258 mm
  Net Weight 44.6 kg
X3-NEO-12K-LV
- PV INPUT

  Max. recommended PV array power 24 kWp
  MPPT voltage range 160 ~ 950 V
  No. of MPP. trackers / strings per MPPT 2 / (2 / 2)
  Max. input current per MPPT 36 A / 36 A
- AC INPUT & OUTPUT (ON-GRID)

  Rated output power 12 kW
  Rated AC voltage
  3W / N / PE, 220 / 380 V
  3W / N / PE, 230 / 400 V
  3W / N / PE, 240 / 415 V
- EPS(OFF-GRID) OUTPUT(WITH BATTERY)

  Peak EPS output power
  24 kVA
  2 times of rated power, 10 s
  Switchover time <3 ms
- GENERAL

  Ingress protection IP65
  Dimensions (W /H / D) 520 × 705 × 258 mm
  Net Weight 44.6 kg
X3-NEO-15K-LV
- PV INPUT

  Max. recommended PV array power 30 kWp
  MPPT voltage range 160 ~ 950 V
  No. of MPP. trackers / strings per MPPT 2 / (2 / 2)
  Max. input current per MPPT 36 A / 36 A
- AC INPUT & OUTPUT (ON-GRID)

  Rated output power 15 kW
  Rated AC voltage
  3W / N / PE, 220 / 380 V
  3W / N / PE, 230 / 400 V
  3W / N / PE, 240 / 415 V
- EPS(OFF-GRID) OUTPUT(WITH BATTERY)

  Peak EPS output power
  30 kVA
  2 times of rated power, 10 s
  Switchover time <3 ms
- GENERAL

  Ingress protection IP65
  Dimensions (W /H / D) 520 × 705 × 258 mm
  Net Weight 44.6 kg
X3-NEO-20K-LV
- PV INPUT

  Max. recommended PV array power 40 kWp
  MPPT voltage range 160 ~ 950 V
  No. of MPP. trackers / strings per MPPT 2 / (2 / 2)
  Max. input current per MPPT 36 A / 36 A
- AC INPUT & OUTPUT (ON-GRID)

  Rated output power 20 kW
  Rated AC voltage
  3W / N / PE, 220 / 380 V
  3W / N / PE, 230 / 400 V
  3W / N / PE, 240 / 415 V
- EPS(OFF-GRID) OUTPUT(WITH BATTERY)

  Peak EPS output power
  40 kVA
  2 times of rated power, 10 s
  Switchover time <3 ms
- GENERAL

  Ingress protection IP65
  Dimensions (W /H / D) 520 × 705 × 258 mm
  Net Weight 45.2 kg
