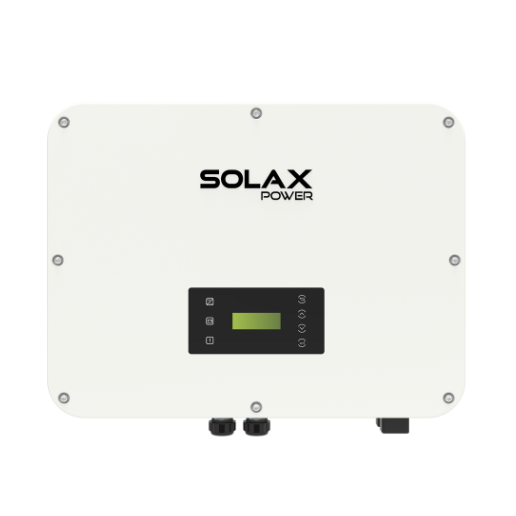

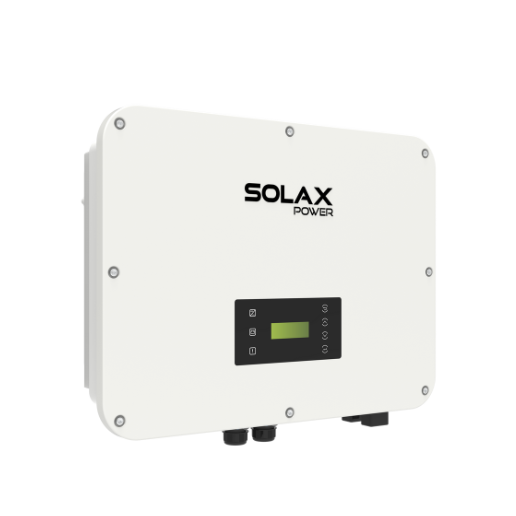

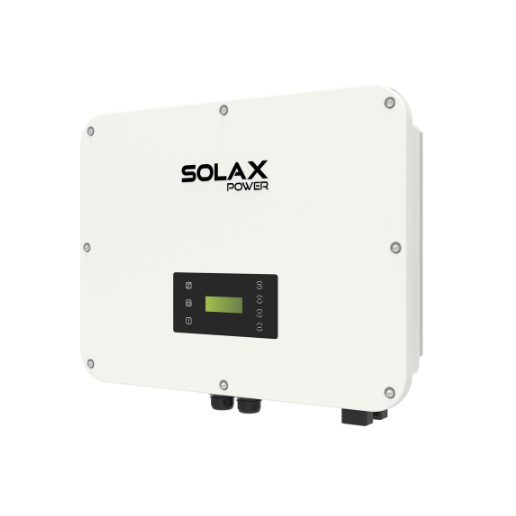

Hybrid Inverter

X3-ULTRA

15kW / 19.9kW / 20kW / 25kW / 30kW

The X3-ULTRA offers unparalleled flexibility, supporting up to 10 units in parallel for both on-grid and off-grid systems. With its 36A PV input per MPPT, it supports high-power solar panels. The advanced microgrid and generator functionality further enhance its adaptability, making it an excellent solution for residential, commercial, and industrial installations alike.

Watch Video
Data Download

Product Advantage

The X3-ULTRA supports 200% PV oversizing for 100% AC output and battery storage. With 2/3 MPPTs, it ensures fault tolerance and maximizes power generation. The microgrid feature allows off-grid operation, using PV or battery energy to power string inverters during outages, reducing grid dependency.

Assured Reliability

IP66 protection degree
Type II SPD on AC&DC side
Optional AFCI protection

Flexible Adaptability

Max. 10pcs parallel for on-grid and off-grid
Microgrid and generator function for versatile operations
Max. 36A PV input per MPPT, optimized for high-power solar panel

High Performance

200% PV oversizing and up to 110% AC output
200% EPS overload for 10s
Max. 60A charging / discharging current
Low start-up voltage for longer operation

Smart Management

Single unit UPS-level switchover time<10ms
Built-in shadow tracking
Smart loads management(e.g., heat pump, smart EV charger)
Loads respond time within 0.3 s
VPP ready with a variety of compatibility (OpenADR, IEEE2030.5, FCAS, API)*

Product Parameters

X3-ULT-15K
X3-ULT-15KP
X3-ULT-19.9K
X3-ULT-20K
X3-ULT-20KP
X3-ULT-25K
X3-ULT-30K

X3-ULT-15K
- PV INPUT

  Max. recommended PV array power 30 kWp
  MPPT voltage range 160~950 V
  No. of MPP. trackers / strings per MPPT 2 / (2 / 2)
  Max. input current per MPPT 36 A / 36 A
- AC INPUT & OUTPUT (ON-GRID)

  Rated output power 15000 W(AS4777 14999 W)
  Rated AC voltage
  3/N/PE,220/380V
  3/N/PE,230/400V
- EPS(OFF-GRID) OUTPUT(WITH BATTERY)

  Peak EPS output power 2 times of rated power, 10 s
  Switchover time <10 ms
- GENERAL

  Ingress protection IP66
  Dimensions (W /H / D) 696x526x240 mm
  Net Weight 47 kg
X3-ULT-15KP
- PV INPUT

  Max. recommended PV array power 30 kWp
  MPPT voltage range 160~950 V
  No. of MPP. trackers / strings per MPPT 3 / (2 / 2 / 2)
  Max. input current per MPPT 36 A / 36 A / 36 A
- AC INPUT & OUTPUT (ON-GRID)

  Rated output power 15000 W(AS4777 14999 W)
  Rated AC voltage
  3/N/PE,220/380V
  3/N/PE,230/400V
- EPS(OFF-GRID) OUTPUT(WITH BATTERY)

  Peak EPS output power 2 times of rated power, 10 s
  Switchover time <10 ms
- GENERAL

  Ingress protection IP66
  Dimensions (W /H / D) 696x526x240 mm
  Net Weight 47 kg
X3-ULT-19.9K
- PV INPUT

  Max. recommended PV array power 40 kWp
  MPPT voltage range 160~950 V
  No. of MPP. trackers / strings per MPPT 2 / (2 / 2)
  Max. input current per MPPT 36 A / 36 A
- AC INPUT & OUTPUT (ON-GRID)

  Rated output power 20000 W
  Rated AC voltage
  3/N/PE,220/380V
  3/N/PE,230/400V
- EPS(OFF-GRID) OUTPUT(WITH BATTERY)

  Peak EPS output power 2 times of rated power, 10 s
  Switchover time <10 ms
- GENERAL

  Ingress protection IP66
  Dimensions (W /H / D) 696x526x240 mm
  Net Weight 47 kg
X3-ULT-20K
- PV INPUT

  Max. recommended PV array power 40 kWp
  MPPT voltage range 160~950 V
  No. of MPP. trackers / strings per MPPT 2 / (2 / 2)
  Max. input current per MPPT 36 A / 36 A
- AC INPUT & OUTPUT (ON-GRID)

  Rated output power 20000 W
  Rated AC voltage
  3/N/PE,220/380V
  3/N/PE,230/400V
- EPS(OFF-GRID) OUTPUT(WITH BATTERY)

  Peak EPS output power 2 times of rated power, 10 s
  Switchover time <10 ms
- GENERAL

  Ingress protection IP66
  Dimensions (W /H / D) 696x526x240 mm
  Net Weight 47 kg
X3-ULT-20KP
- PV INPUT

  Max. recommended PV array power 40 kWp
  MPPT voltage range 160~950 V
  No. of MPP. trackers / strings per MPPT 3/ (2 / 2 / 2)
  Max. input current per MPPT 36 A / 36 A / 36 A
- AC INPUT & OUTPUT (ON-GRID)

  Rated output power 20000 W
  Rated AC voltage
  3/N/PE,220/380V
  3/N/PE,230/400V
- EPS(OFF-GRID) OUTPUT(WITH BATTERY)

  Peak EPS output power 2 times of rated power, 10 s
  Switchover time <10 ms
- GENERAL

  Ingress protection IP66
  Dimensions (W /H / D) 696x526x240 mm
  Net Weight 47 kg
X3-ULT-25K
- PV INPUT

  Max. recommended PV array power 50 kWp
  MPPT voltage range 160~950 V
  No. of MPP. trackers / strings per MPPT 3 / (2 / 2 / 2)
  Max. input current per MPPT 36 A / 36 A / 36 A
- AC INPUT & OUTPUT (ON-GRID)

  Rated output power 25000 W(VDE4105 24900 W)
  Rated AC voltage
  3/N/PE,220/380V
  3/N/PE,230/400V
- EPS(OFF-GRID) OUTPUT(WITH BATTERY)

  Peak EPS output power 2 times of rated power, 10 s
  Switchover time <10 ms
- GENERAL

  Ingress protection IP66
  Dimensions (W /H / D) 696x526x240 mm
  Net Weight 47 kg
X3-ULT-30K
- PV INPUT

  Max. recommended PV array power 60 kWp
  MPPT voltage range 160~950 V
  No. of MPP. trackers / strings per MPPT 3 / (2 / 2 / 2)
  Max. input current per MPPT 36 A / 36 A / 36 A
- AC INPUT & OUTPUT (ON-GRID)

  Rated output power 30000 W (AS4777 29999 W,VDE4105 29900 W)
  Rated AC voltage
  3/N/PE,220/380V
  3/N/PE,230/400V
- EPS(OFF-GRID) OUTPUT(WITH BATTERY)

  Peak EPS output power 2 times of rated power, 10 s
  Switchover time <10 ms
- GENERAL

  Ingress protection IP66
  Dimensions (W /H / D) 696x526x240 mm
  Net Weight 47 kg
