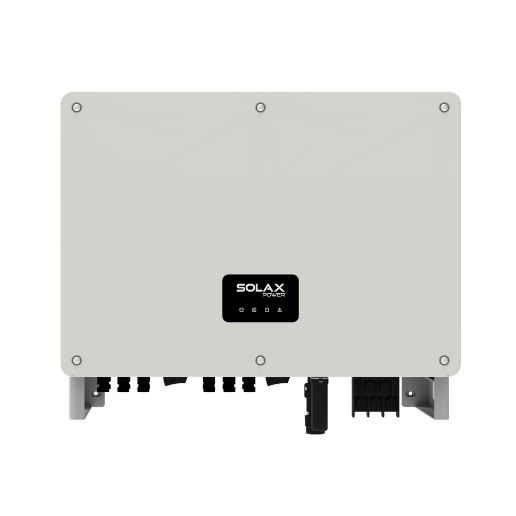

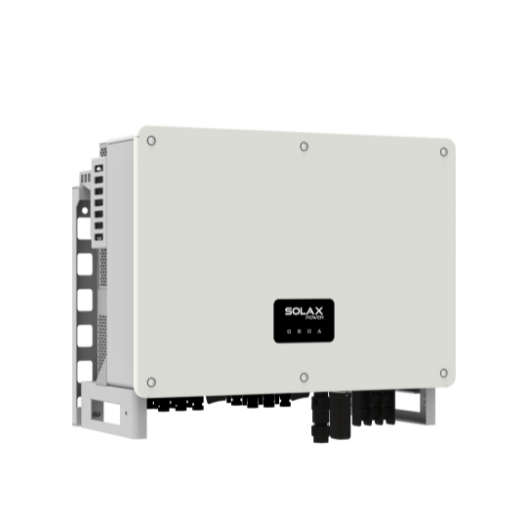

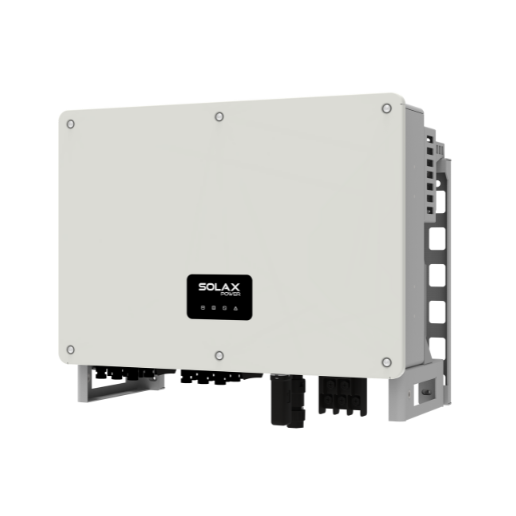

Three Phase Inverter
X3-MEGA G2
-
40kW / 50kW / 60kW
The X3-MEGA G2 three-phase inverter, available in 40kW, 50kW, and 60kW models. With up to 6 MPPTs and 2 strings per tracker, it offers flexible system design. Smart air cooling enhances fan longevity, while optimized heat dissipation reduces weight and size by over 10%.
-
Watch Video
Product Advantage
Delivering up to 98% efficiency, the X3-MEGA G2 supports 150% PV oversizing and 110% AC overloading. A wide MPPT voltage range of 180–1000Vdc and 32A per tracker maximize solar energy yield. Advanced I-V curve diagnostics and night-time reactive power compensation further enhance system performance and grid stability, making it ideal for high-output solar installations.
Built-in export power control
Remote setting and upgrading
Aluminium AC cable connection available
Max. 6 MPPTs, 2 strings per MPP tracker
Up to 98.4% efficiency
32A per MPP tracker
180~1000Vdc MPPT voltage range
150% PV oversizing, 110% overloading output
IP66 protection
Type II SPD on AC&DC side (Optional)
Smart string current monitoring
24 hours operation monitoring
Night-time reactive power compensation
Smart air cooling enhances fan longevity
Heat dissipation reduces system weight & size by over 10%
I-V Curve diagnosis
Product Parameters
-
X3-MGA-60K-G2-
PV INPUT
Max. recommended PV array power 90 kWp MPPT voltage range 180 ~ 1000 V No. of MPP trackers / strings per MPP tracker 6 / 2 Max. input current per MPPT 32 A -
AC OUTPUT
Rated output power 60 kW Nominal AC voltage 3 / (N) / PE, 220 / 380 V
3 / (N) / PE, 230 / 400 V
-
GENERAL
Ingress protection IP66 Dimensions (W /H / D) 630 × 521 × 286 mm
Net Weight 45.5 kg
-
-
X3-MGA-50K-G2
-
PV INPUT
Max. recommended PV array power 75 kWp MPPT voltage range 180 ~ 1000 V No. of MPP trackers / strings per MPP tracker 5 / 2 Max. input current per MPPT 32 A -
AC OUTPUT
Rated output power 50 kW Nominal AC voltage 3 / (N) / PE, 220 / 380 V
3 / (N) / PE, 230 / 400 V
-
GENERAL
Ingress protection IP66 Dimensions (W /H / D) 630 × 521 × 286 mm
Net Weight 44.5 kg
-
-
X3-MGA-40K-G2
-
PV INPUT
Max. recommended PV array power 60 kWp MPPT voltage range 180 ~ 1000 V No. of MPP trackers / strings per MPP tracker 4 / 2 Max. input current per MPPT 32 A -
AC OUTPUT
Rated output power 40 kW Nominal AC voltage 3 / (N) / PE, 220 / 380 V
3 / (N) / PE, 230 / 400 V
-
GENERAL
Ingress protection IP66 Dimensions (W /H / D) 630 × 521 × 286 mm
Net Weight 44.0 kg
-
