C&I ESS

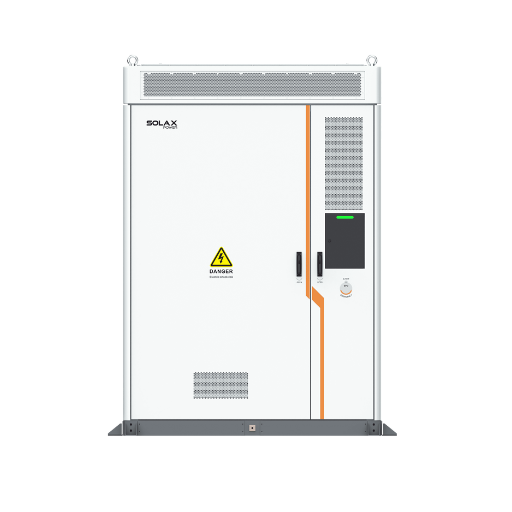

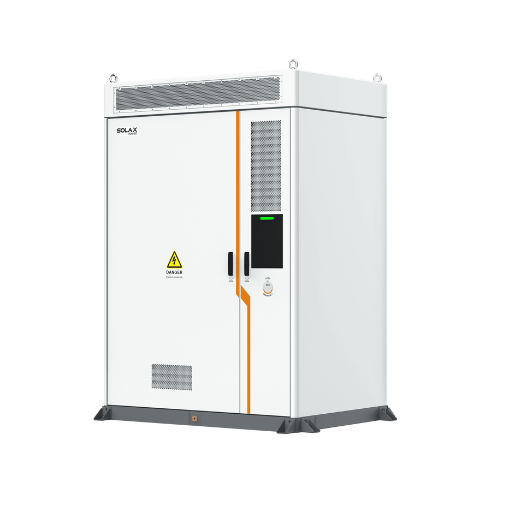

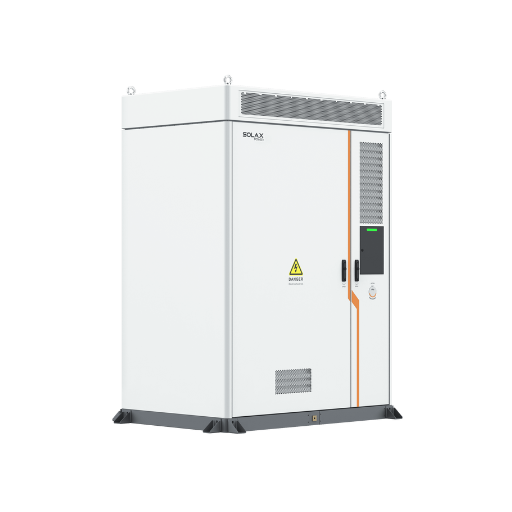

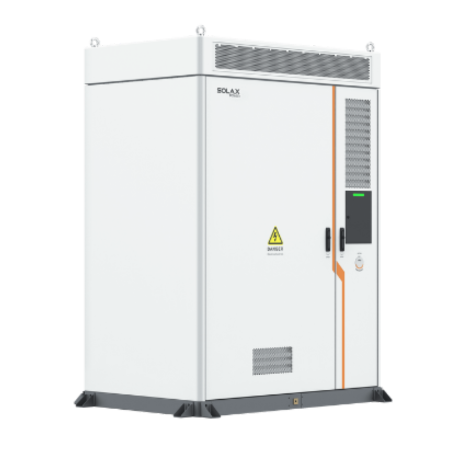

ESS-TRENE 215kWh
-
100kW / 215kWh
The air cooling ESS system featuring a 100kW power output and 215kWh capacity, engineered for space-conscious installations. Scalable to megawatt-hours, the system integrates seamlessly into both grid-connected and off-grid infrastructures, offering flexible deployment and optimized energy storage in a modular design.
-
Watch Video
Product Advantage
Equipped with a full-stack in-house developed BMS, EMS, and PCS, it offers seamless integration and one year of historical data storage. With scalable architecture and support for three-phase unbalance output, the system meets complex energy demands with consistency, reliability, and future-ready design.
High Performance
High power density, compact design
Scalable up to megawatt-hours
Optimised space utilisation
Assured Reliability
Four-level fire safety protection
IP66 for inverter, lP55 for cabinet
LFP battery cell & high-performance processors
Type ll SPD on AC side
Advanced fault detection and response
Support three-phase unbalance output
Smart Management
Advanced energy management system
VPP ready with SolaXCloud (IEEE 2030.5, OpenADR)
Supporting micro-grids and diverse scenarios
Smart schedule, smart scene and 7×24h TOU
Wireless meter compatibility
Flexible Adaptability
Supporting grid-connected and off-grid (with SolaX switching cabinet)
Full-stack self-developed BMS, EMS, PCS & SolaXCloud
One year of historical data storage
Product Parameters
-
TRENE-P100B215-
AC SIDE (ON-GRID)
Rated output power 100 kW Rated AC voltage 3 / N / PE, 220 / 380 V 3 / N / PE, 230 / 400 V Rated AC frequency 50 Hz / 60Hz -
DC SIDE
Battery type LFP / 280Ah Battery capacity 215 kWh Rated battery voltage 768 V -
SYSTEM PARAMETER
Dimensions (W x H x D） 1680 ×2420 × 1200 mm Net weight 2800 kg Operating temperature range -30 ~ 50 ℃(＞45℃ derating) Max. operating altitude 3000 m Cooling concept Smart air cooling Ingress protection IP55
-
