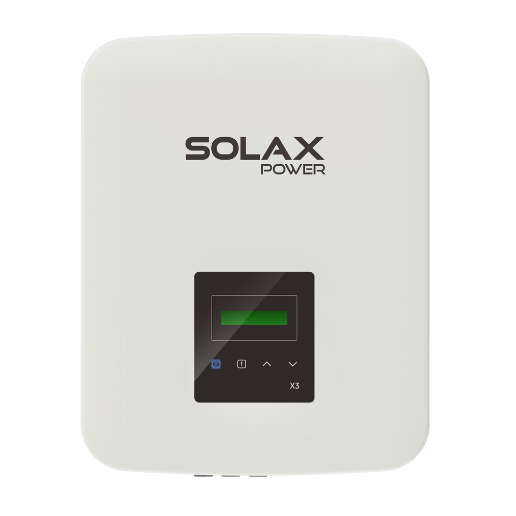

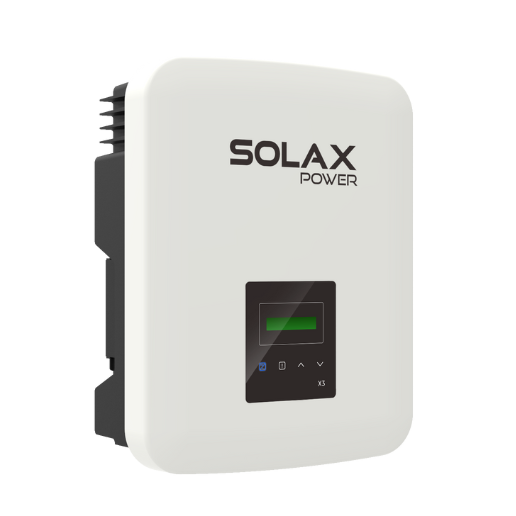

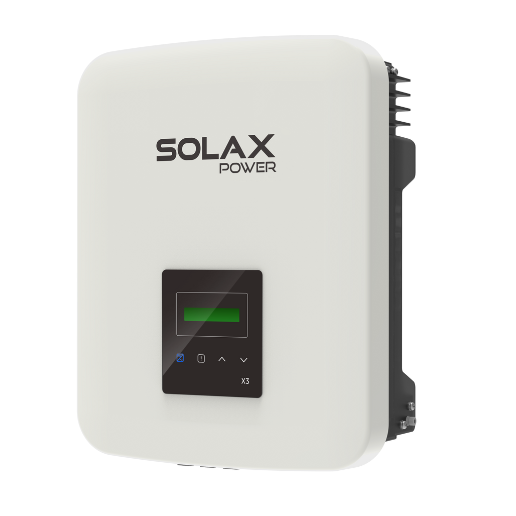

Three Phase Inverter

X3-MIC G2

3kW / 4kW / 5kW / 6kW / 8kW / 10kW / 12kW /15kW

The X3-MIC G2 features IP66 protection and ultra-high power density, offering a reliable and compact solution for solar systems. Its smart loads management feature ensures compatibility with modern home devices like EV chargers and heat pumps, offering complete integration for optimized energy use.

Data Download

Product Advantage

The X3-MIC G2 boasts 98% efficiency and supports 200% DC oversizing, ensuring maximum energy generation. With 32A per MPP tracker, built-in global MPP scanning, and a wide MPPT range, it ensures reliable output. Its built-in export power control function enhances energy management, making it ideal for high-power solar panels.

Intelligent Design

24h monitoring (WiFi / LAN / 4G)
Smart loads management (e.g. heat pump, smart EV charger)

Assured Safety

Type II SPD on AC & DC side (optional)
AFCI support (optional)
IP66 ingress protection

Flexible Adaptability

Low start up voltage & ultra-wide MPPT range
Built-in export power control
Ultra-high power density

High Efficiency

Up to 98.5% efficiency
32A per MPP tracker
200% DC oversizing & 110% AC overloading output
Built-in global MPP scan

Product Parameters

X3-MIC-3K-G2
X3-MIC-4K-G2
X3-MIC-5K-G2
X3-MIC-6K-G2
X3-MIC-8K-G2
X3-MIC-10K-G2
X3-MIC-12K-G2
X3-MIC-15K-G2

X3-MIC-3K-G2
- PV INPUT

  Max. recommended PV array power 6 kWp
  MPPT voltage range 120 ~ 980 V
  No. of MPP trackers / strings per MPP tracker 2 / (1 / 1)
  Max. input current per MPPT 16 A / 16 A
- AC OUTPUT

  Rated output power 3000 W
  Rated AC voltage
  3 / N / PE, 220 / 380 V
  3 / N / PE, 230 / 400 V
- GENERAL

  Ingress protection IP66
  Dimensions (W /H / D)
  342 × 434 × 144.5 mm
  Net Weight 15.5 kg
X3-MIC-4K-G2
- PV INPUT

  Max. recommended PV array power 8 kWp
  MPPT voltage range 120 ~ 980 V
  No. of MPP trackers / strings per MPP tracker 2 / (1 / 1)
  Max. input current per MPPT 16 A / 16 A
- AC OUTPUT

  Rated output power 4000 W
  Rated AC voltage
  3 / N / PE, 220 / 380 V
  3 / N / PE, 230 / 400 V
- GENERAL

  Ingress protection IP66
  Dimensions (W /H / D)
  342 × 434 × 144.5 mm
  Net Weight 15.5 kg
X3-MIC-5K-G2
- PV INPUT

  Max. recommended PV array power 10 kWp
  MPPT voltage range 120 ~ 980 V
  No. of MPP trackers / strings per MPP tracker 2 / (1 / 1)
  Max. input current per MPPT 16 A / 16 A
- AC OUTPUT

  Rated output power 5000 W
  Rated AC voltage
  3 / N / PE, 220 / 380 V
  3 / N / PE, 230 / 400 V
- GENERAL

  Ingress protection IP66
  Dimensions (W /H / D)
  342 × 434 × 144.5 mm
  Net Weight 15.5 kg
X3-MIC-6K-G2
- PV INPUT

  Max. recommended PV array power 12 kWp
  MPPT voltage range 120 ~ 980 V
  No. of MPP trackers / strings per MPP tracker 2 / (1 / 1)
  Max. input current per MPPT 16 A / 16 A
- AC OUTPUT

  Rated output power 6000 W
  Rated AC voltage
  3 / N / PE, 220 / 380 V
  3 / N / PE, 230 / 400 V
- GENERAL

  Ingress protection IP66
  Dimensions (W /H / D)
  342 × 434 × 144.5 mm
  Net Weight 15.5 kg
X3-MIC-8K-G2
- PV INPUT

  Max. recommended PV array power 16 kWp
  MPPT voltage range 120 ~ 980 V
  No. of MPP trackers / strings per MPP tracker 2 / (1 / 1)
  Max. input current per MPPT 16 A / 16 A
- AC OUTPUT

  Rated output power 8000 W
  Rated AC voltage
  3 / N / PE, 220 / 380 V
  3 / N / PE, 230 / 400 V
- GENERAL

  Ingress protection IP66
  Dimensions (W /H / D)
  342 × 434 × 156 mm
  Net Weight 17.0 kg
X3-MIC-10K-G2
- PV INPUT

  Max. recommended PV array power 20 kWp
  MPPT voltage range 120 ~ 980 V
  No. of MPP trackers / strings per MPP tracker 2 / (1 / 1)
  Max. input current per MPPT 16 A / 16 A
- AC OUTPUT

  Rated output power 10000 W
  Rated AC voltage
  3 / N / PE, 220 / 380 V
  3 / N / PE, 230 / 400 V
- GENERAL

  Ingress protection IP66
  Dimensions (W /H / D)
  342 × 434 × 156 mm
  Net Weight 17.0 kg
X3-MIC-12K-G2
- PV INPUT

  Max. recommended PV array power 24 kWp
  MPPT voltage range 120 ~ 980 V
  No. of MPP trackers / strings per MPP tracker 2 / (2 / 1)
  Max. input current per MPPT 32 A / 16 A
- AC OUTPUT

  Rated output power 12000 W
  Rated AC voltage
  3 / N / PE, 220 / 380 V
  3 / N / PE, 230 / 400 V
- GENERAL

  Ingress protection IP66
  Dimensions (W /H / D)
  342 × 434 × 156 mm
  Net Weight 18.0 kg
X3-MIC-15K-G2
- PV INPUT

  Max. recommended PV array power 30 kWp
  MPPT voltage range 120 ~ 980 V
  No. of MPP trackers / strings per MPP tracker 2 / (2 / 1)
  Max. input current per MPPT 32 A / 16 A
- AC OUTPUT

  Rated output power 15000 W
  Rated AC voltage
  3 / N / PE, 220 / 380 V
  3 / N / PE, 230 / 400 V
- GENERAL

  Ingress protection IP66
  Dimensions (W /H / D)
  342 × 434 × 156 mm
  Net Weight 18.0 kg
