Monitoring Device

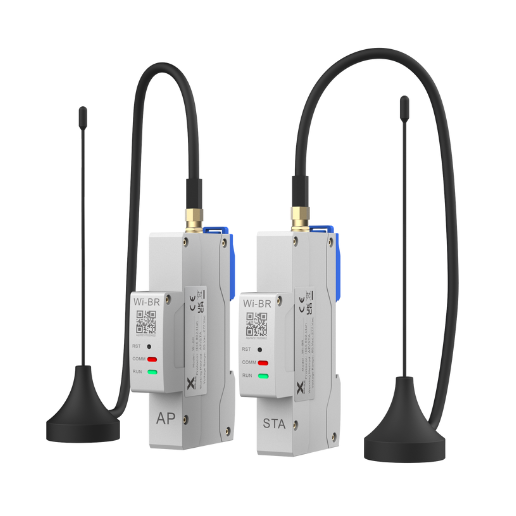

Wireless Bridge
-
Wi-BR
Compatible with both single- and three-phase meters, it offers exceptional adaptability and stable performance even in complex conditions, making it ideal for modern smart metering systems and wireless networks.
Product Advantage
SolaX Wireless Bridge stands out for its superior performance and versatility. It offers wide coverage with stable data transmission up to 200 meters, strong vertical penetration up to 4 floors (approx. 30 meters), and an intelligent design that supports din-rail installation for various power supplies.
Efficient and stable data transmission up to 200m
DIN-rail installation for 85-277V AC power supply
Penetration ability up to 4 floors (about 30 meters vertically)
Compatible with single & three-phase meters
Product Parameters
-
Wi-BR-
COMMUNICATION
Working method AP / STA Communication terminal RS485 * 1 (for each model) Procotol IEEE 802.11ah -
ELECTRICAL SPECIFICATIONS
Phase voltage 85 ~ 277 Vac Max. power consumption 2 W -
ENVIRONMENTAL ADAPTABILITY
Operating temperature -25 ~ 55°C Altitude ≤ 2000 m -
MECHANICAL & INSTALLATION
Dimensions 18 × 98 × 66 mm Mounting type DIN rail Ingress protection rating IP20
-
