Microinverters
A1-Micro 1 in 1
-
300W / 400W / 450W / 500W / 600W

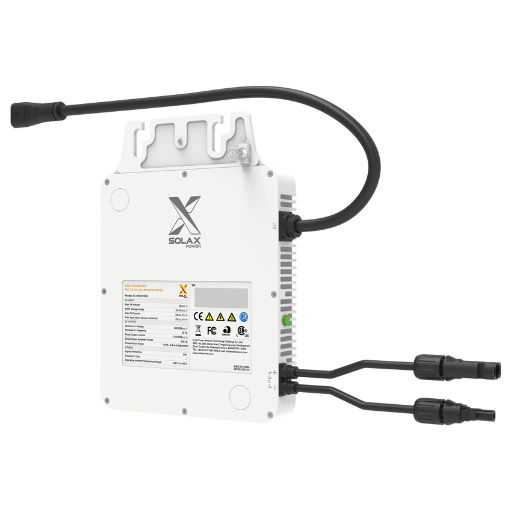

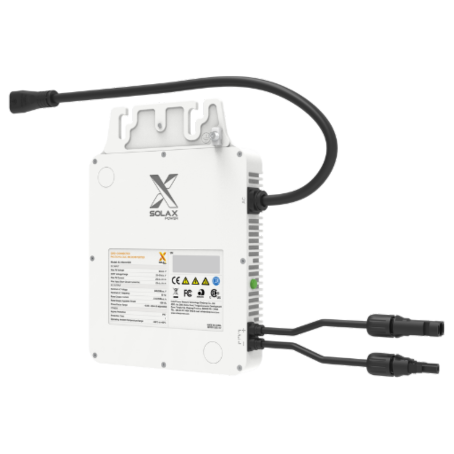

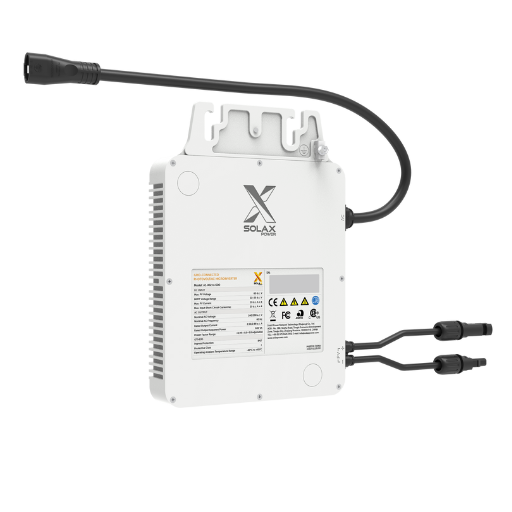

The SolaX 1-in-1 Microinverter is a cutting-edge solution for module-level power optimization, designed to maximize energy harvest from individual solar panels. With peak efficiency up to 97.5% and IP67 waterproof rating, it ensures reliable performance in diverse environments
-
Watch Video
Product Advantage
With a maximum output of 2400VA and up to 19.5A DC input current, the X1-Micro 4 in 1 microinverter delivers industry-leading energy conversion performance. Its advanced 4 MPPT channels ensure superior power optimization across multiple panel orientations.
Built-in Rapid Shutdown compliant
Safety protection relay integrated
IP67 protection degree
Max. 600VA output power
Max. 20A DC input current
Single MPPT for optimal energy harvest
Reactive power control
Faster installation with plug and play cables and connectors
Complies with advanced grid support and voltage/frequency ride-through requirements for enhanced stability
Industrial-grade PLC module for stable data transmission and easier wiring
Support Zero Export Control
Easy and flexible expansion of system capacity
Support 1-phase microinverter integration into 3-phase power grids*
Product Parameters
-
A1-Micro 300P-
DC INPUT
Commonly used module power per input 240 ~ 410+ W MPPT voltage range 22 ~ 60 V Number of MPP. trackers/strings per MPPT 1 / 1 -
AC OUTPUT
Rated AC output power 300 VA -
EFFICIENCY
Peak efficiency 96.50% Nominal MPPT efficiency 99.50% -
GENERAL
Ingress protection rating Type 6 Dimensions (W /H / D) 206 × 178 × 34 mm Weight 2.5 kg Cooling Concept Natural convection
-
-
A1-Micro 400P
-
DC INPUT
Commonly used module power per input 320 ~ 550+ W MPPT voltage range 22 ~ 60 V Number of MPP. trackers/strings per MPPT 1 / 1 -
AC OUTPUT
Rated AC output power 400 VA -
EFFICIENCY
Peak efficiency 96.50% Nominal MPPT efficiency 99.50% -
GENERAL
Ingress protection rating Type 6 Dimensions (W /H / D) 206 × 178 × 34 mm Weight 2.5 kg Cooling Concept Natural convection
-
-
A1-Micro 450P
-
DC INPUT
Commonly used module power per input 360 ~ 600+ W MPPT voltage range 22 ~ 60 V Number of MPP. trackers/strings per MPPT 1 / 1 -
AC OUTPUT
Rated AC output power 450 VA -
EFFICIENCY
Peak efficiency 96.50% Nominal MPPT efficiency 99.50% -
GENERAL
Ingress protection rating Type 6 Dimensions (W /H / D) 206 × 178 × 34 mm Weight 2.5 kg Cooling Concept Natural convection
-
-
A1-Micro 500P
-
DC INPUT
Commonly used module power per input 400 ~ 670+ W MPPT voltage range 22 ~ 60 V Number of MPP. trackers/strings per MPPT 1 / 1 -
AC OUTPUT
Rated AC output power 500 VA -
EFFICIENCY
Peak efficiency 96.50% Nominal MPPT efficiency 99.50% -
GENERAL
Ingress protection rating Type 6 Dimensions (W /H / D) 206 × 178 × 34 mm Weight 2.5 kg Cooling Concept Natural convection
-
-
A1-Micro 600P
-
DC INPUT
Commonly used module power per input 400 ~ 670+ W MPPT voltage range 22 ~ 60 V Number of MPP. trackers/strings per MPPT 1 / 1 -
AC OUTPUT
Rated AC output power 600 VA -
EFFICIENCY
Peak efficiency 96.50% Nominal MPPT efficiency 99.50% -
GENERAL
Ingress protection rating Type 6 Dimensions (W /H / D) 206 × 178 × 34 mm Weight 2.5 kg Cooling Concept Natural convection
-
