C&I ESS

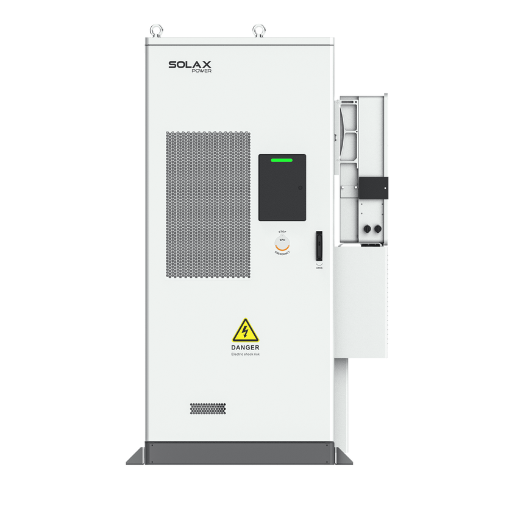

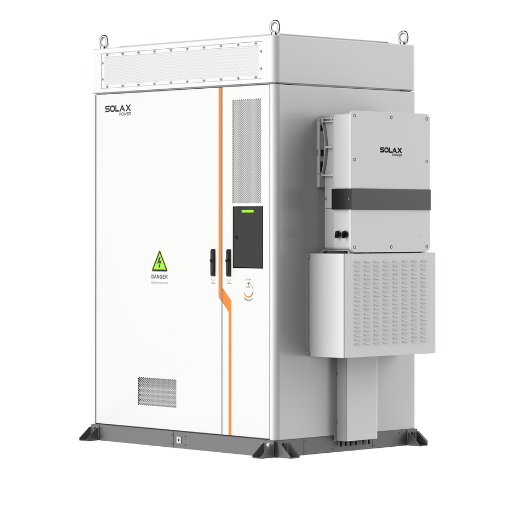

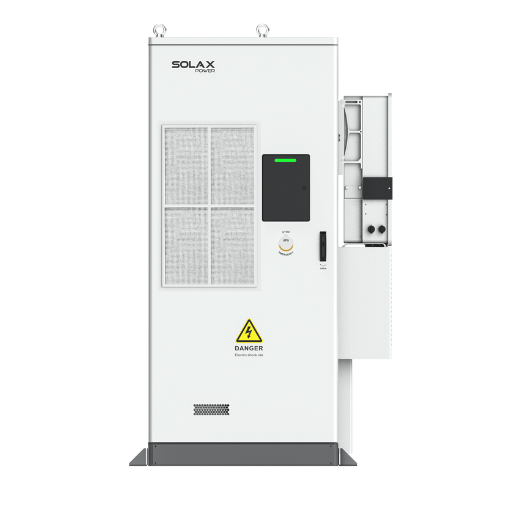

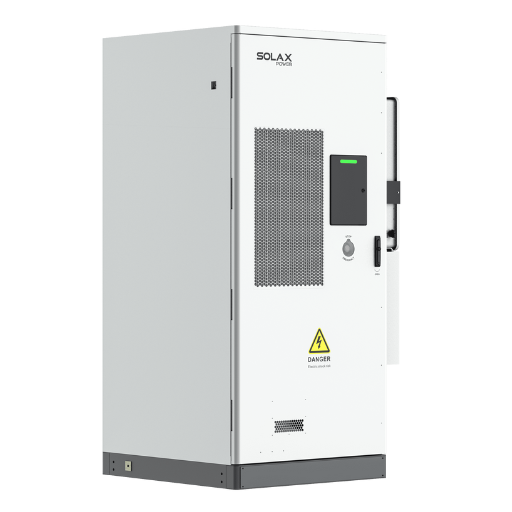

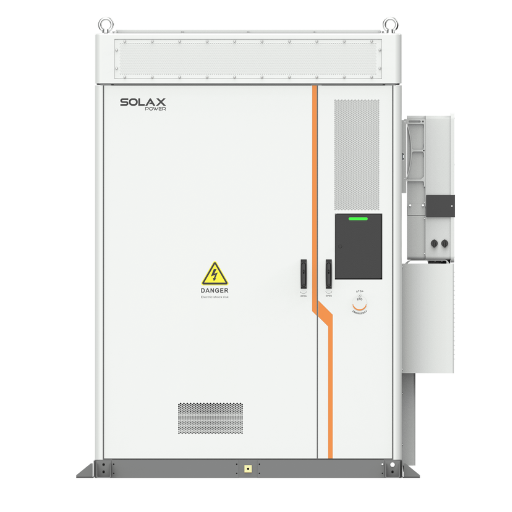

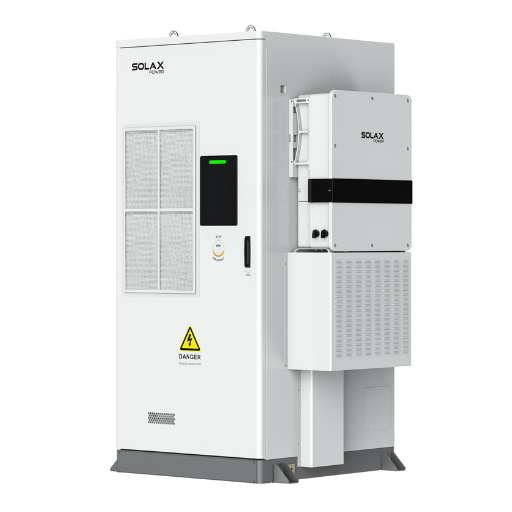

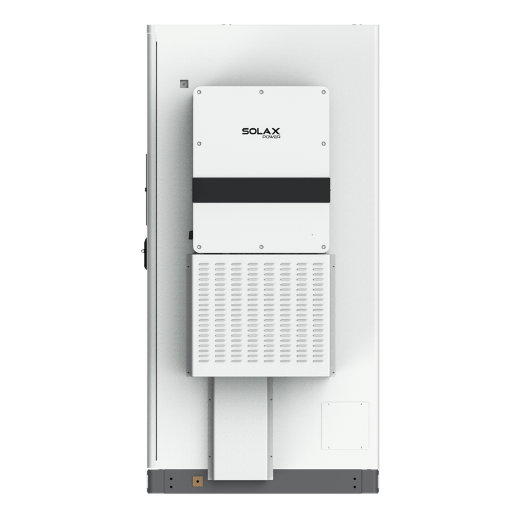

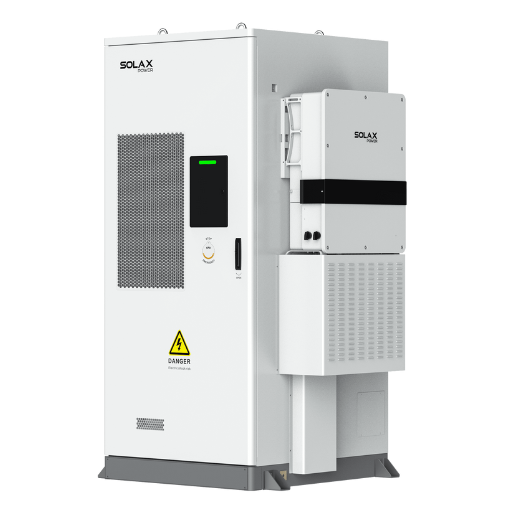

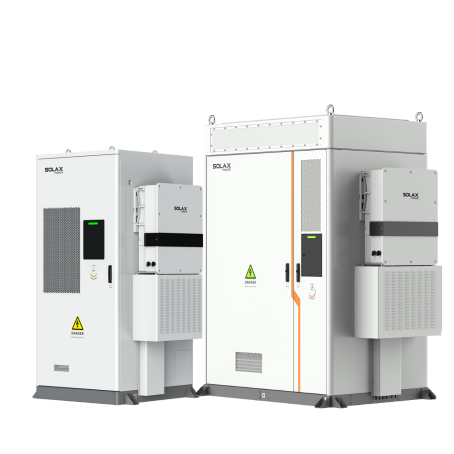

ESS-AELIO 100/200kWh
-
50kW / 60kW | 100/200kWh
Its modular architecture allows flexible deployment for a range of applications, from commercial to industrial. Designed to support grid-tied and off-grid scenarios, the Hybrid ESS cabinet offers seamless integration and maximized space utilization, making it an ideal choice for growing energy demands.
-
Watch Video
Product Advantage
With support for 200% PV oversizing and a maximum 40A DC input current, the Hybrid ESS Cabinet ensures high throughput for large-scale solar integration. Global MPP scanning maximizes energy harvest, while smart IV curve diagnostics enhance panel performance visibility.
Assured Reliability
Four-level fire safety protection
IP66 for inverter, IP55 for cabinet
Type II SPD on AC&DC side
Smart IV Curve scan for early panel diagnosis
Optional AFCI protection
Support three-phase unbalance output
High Performance
Max. 200% PV oversizing input
Global MPP scan for optimal energy harvest
Single cabinet with up to 200kWh, expandable to MWh-scale capacity
Smart Management
Al-driven intelligent algorithms for high SOC and accuracy
VPP ready with SolaX Cloud (2030.5, OpenADR)
Support micro-grids and diverse scenarios
Smart Schedule, Smart Scene and 7×24h TOU
Wireless meter compatibility
Flexible Adaptability
Supporting grid-connected and off-grid
Expandable design with modular capacity options
Max. 40A DC input current for high power solar panel
Product Parameters
-
AELIO-P50B100-
DC SIDE
Max. recommended PV array power 100 kWp MPPT voltage range 160 ~ 950 V No. of MPP trackers / strings per MPP tracker 5 / 2 -
AC SIDE
Rated output power 50.0 kW Rated AC voltage 3 / N / PE, 220 / 380 V
3 / N / PE, 230 / 400 V
-
BATTERY SIDE
Rated battery capacity 100 kWh -
GENERAL
Dimensions (with inverter) (W × H × D) 1310 × 2300 × 1140 mm
Dimensions (without Inverter) (W × H × D) 1020 × 2300 × 1140 mm
Weight (with inverter) 1600 kg Weight (without inverter) 1500 kg Ingress protection Cabinet: IP55; Inverter: IP66
-
-
AELIO-P50B200-
DC SIDE
Max. recommended PV array power 100 kWp MPPT voltage range 160 ~ 950 V No. of MPP trackers / strings per MPP tracker 5 / 2 -
AC SIDE
Rated output power 50.0 kW Rated AC voltage 3 / N / PE, 220 / 380 V
3 / N / PE, 230 / 400 V
-
BATTERY SIDE
Rated battery capacity 200 kWh -
GENERAL
Dimensions (with inverter) (W × H × D) 2070 × 2420 × 1200 mm
Dimensions (without Inverter) (W × H × D) 1680 × 2420 × 1200 mm
Weight (with inverter) 2800 kg Weight (without inverter) 2700 kg Ingress protection Cabinet: IP55; Inverter: IP66
-
-
AELIO-P60B100-
DC SIDE
Max. recommended PV array power 120 kWp MPPT voltage range 160 ~ 950 V No. of MPP trackers / strings per MPP tracker 6 / 2 -
AC SIDE
Rated output power 60.0 kW Rated AC voltage 3 / N / PE, 220 / 380 V
3 / N / PE, 230 / 400 V
-
BATTERY SIDE
Rated battery capacity 100 kWh -
GENERAL
Dimensions (with inverter) (W × H × D) 1310 × 2300 × 1140 mm
Dimensions (without Inverter) (W × H × D) 1020 × 2300 × 1140 mm
Weight (with inverter) 1600 kg Weight (without inverter) 1500 kg Ingress protection Cabinet: IP55; Inverter: IP66
-
-
AELIO-P60B200-
DC SIDE
Max. recommended PV array power 120 kWp MPPT voltage range 160 ~ 950 V No. of MPP trackers / strings per MPP tracker 6 / 2 -
AC SIDE
Rated output power 60.0 kW Rated AC voltage 3 / N / PE, 220 / 380 V
3 / N / PE, 230 / 400 V
-
BATTERY SIDE
Rated battery capacity 200 kWh -
GENERAL
Dimensions (with inverter) (W × H × D) 2070 × 2420 × 1200 mm
Dimensions (without Inverter) (W × H × D) 1680 × 2420 × 1200 mm
Weight (with inverter) 2800 kg Weight (without inverter) 2700 kg Ingress protection Cabinet: IP55; Inverter: IP66
-
