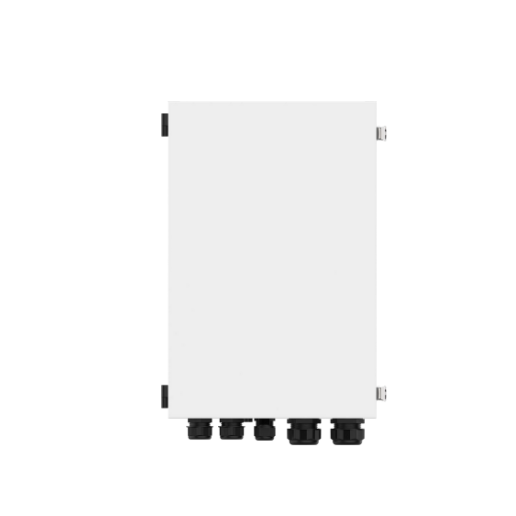

| Parameter | X1-Matebox G2 |
| Rated Voltage, Frequency (On-Grid) | 380 / 400 / 415 Vac, 50 / 60 Hz |
| Max. Apparent On-Grid Input/Output Power | 16500 VA |
| Max. On-Grid Current | 32 A |
| Rated Voltage, Frequency (Off-Grid) | 380 / 400 / 415 Vac, 50 / 60 Hz |
| Max. Power (Off-Grid) | 15000 VA |
| Rated Current (Off-Grid) | 25 A |
| Peak Apparent Power | 30000 VA |
| Rated Grid Voltage, Frequency (Utility) | 380 / 400 / 415 Vac, 50 / 60 Hz |
| Max. Input Current (Utility) | 63 A |
| Rated Voltage, Frequency (Load) | 380 / 400 / 415 Vac, 50 / 60 Hz |
| Max. Current (Load) | 63 A |
| Degree of Protection | IP65 |
| Protection Class | Class I |
| Operating Temperature Range | -25 ~ 60°C (Derating above +45°C) |
| Storage Temperature | -40 ~ 70°C |
| Relative Humidity | 0 ~ 100% RH (Condensing) |
| Altitude | < 3000 m |
| Overvoltage Category | III (AC) |
| Cooling Concept | Natural Cooling |
| Dimensions (L × W × H) | 549 × 360 × 192 mm |
| Net Weight | 13.5 kg |
