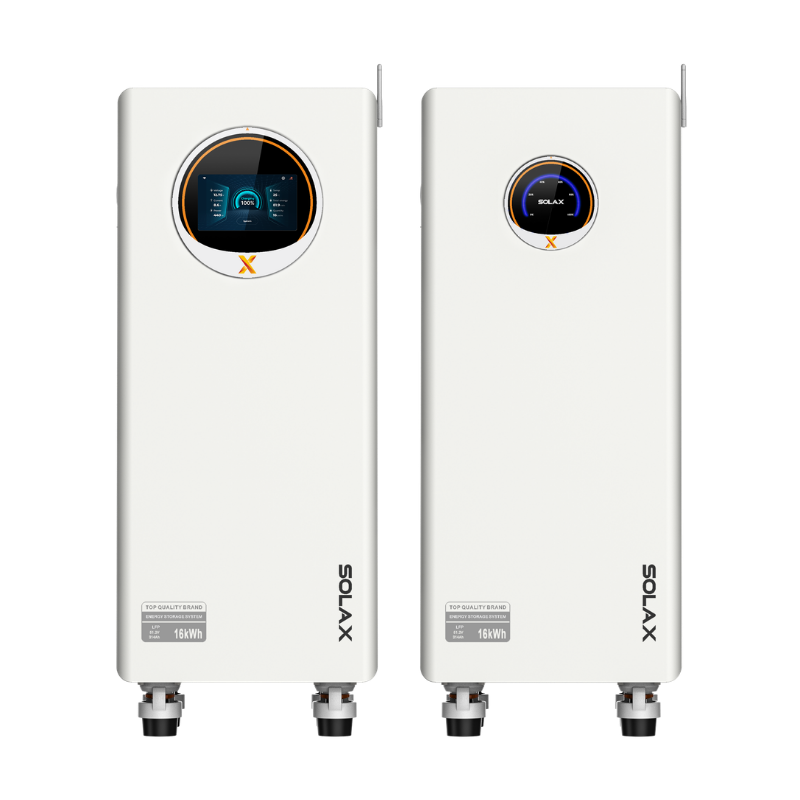

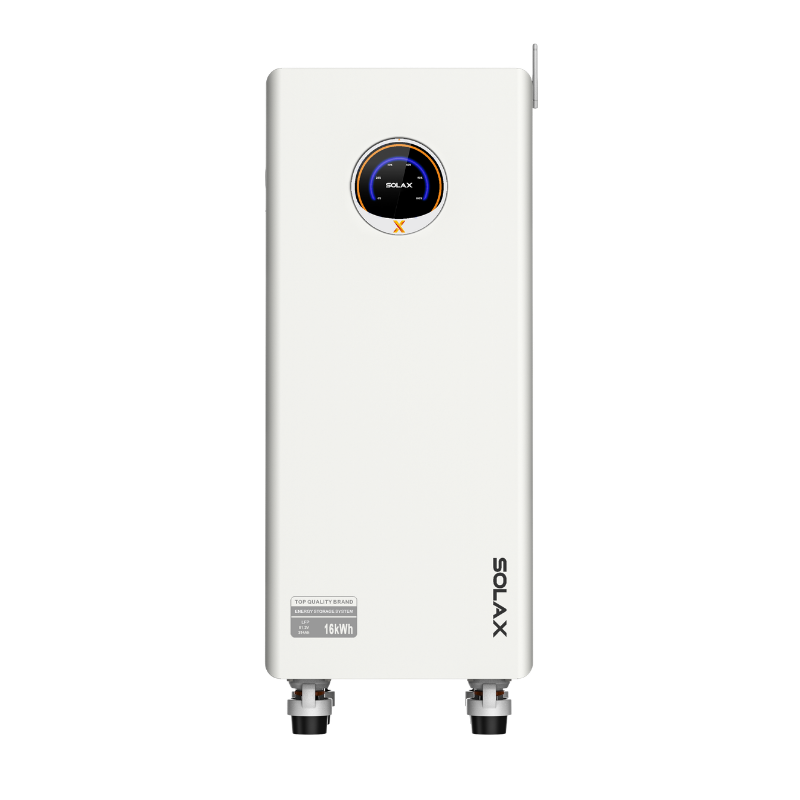

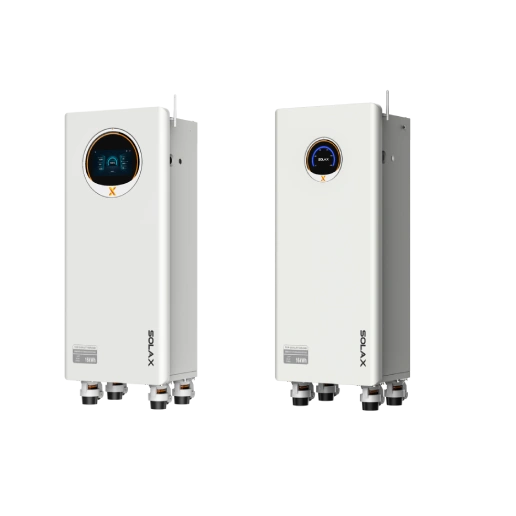

Low-voltage Battery System
LD16
-
LD16
The LD16 low-voltage battery system delivers a perfect blend of assured safety, high power output, intelligent management, and flexible installation—providing a reliable and user-friendly energy storage solution.
Product Advantage
With a 16.0 kWh capacity and IP65 rating, it supports up to 210A discharge current and delivers a peak output of 32.1 kW for 3 seconds. Safety is reinforced by aerosol fire suppression and a CO detector, while the CTP design and wheel-equipped structure ensure efficient space use and easy installation.
Assured Reliability
Aerosol fire suppression and CO detector for precise protection
Reliable feedback-type DC circuit breaker
High Performance
Max. charge / discharge current: 155A / 210A
Peak output power 32.1 kW for 3 s
Smart Management
Remote fault diagnosis, upgrade and maintenance

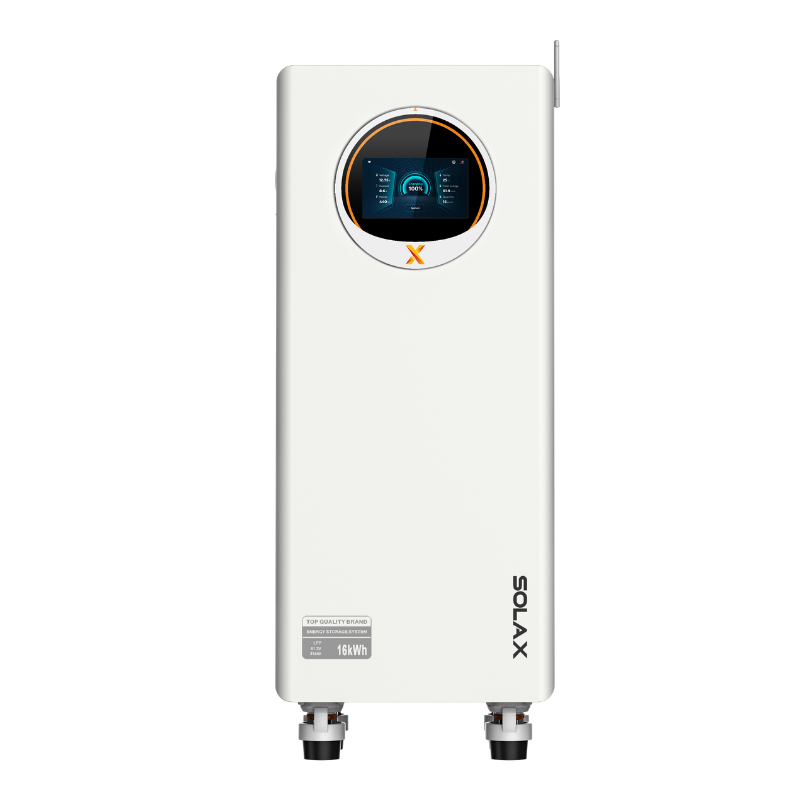

User-friendly LCD touchscreen for intuitive and easy interaction
Flexible Adaptability
CTP (Cell-to-Pack) design maximizes space and energy density for superior performance
Wheel design enables more convenient installation
Product Parameters
-
LD16-
BATTERY MODULE
Battery model LD16 / LD16-S Battery type LFP Nominal voltage 51.2 d.c. V Operating voltage range 42.4 - 57.6 d.c. V Scalability Max. 16 pcs in parallel Max. charge / discharge current 155A/210A -
GENERAL
Dimensions (L ×W × H)
406x1008x281mm
Weight
118.0(±1) kg
-
ENVIRONMENTAL REQUIREMENTS
Ingress protection IP65 Hazardous materials classification Class 9
-
Data Download
-
Datasheet
-
