Residential ESS

X1-IES-A

3.7K-A/5K-A/6K-A/8K-A

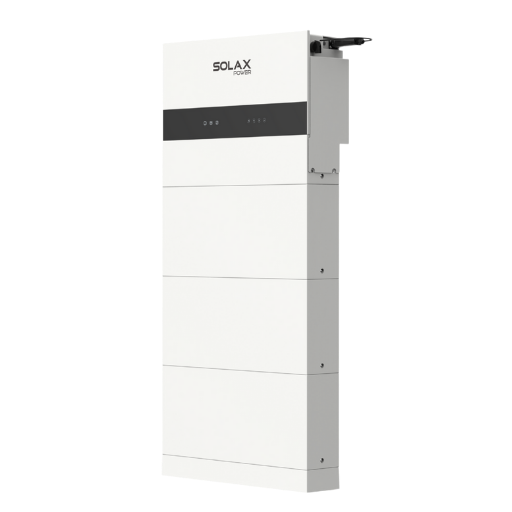

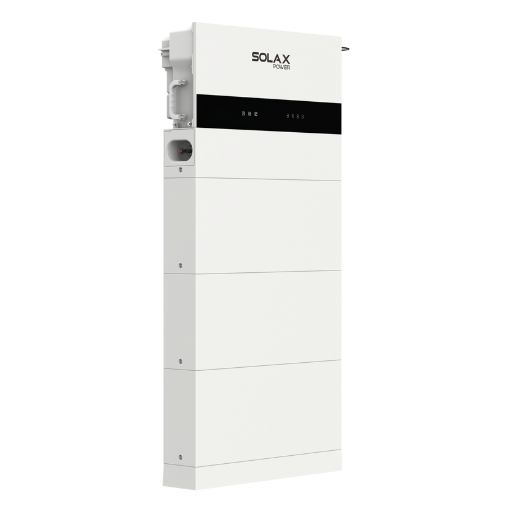

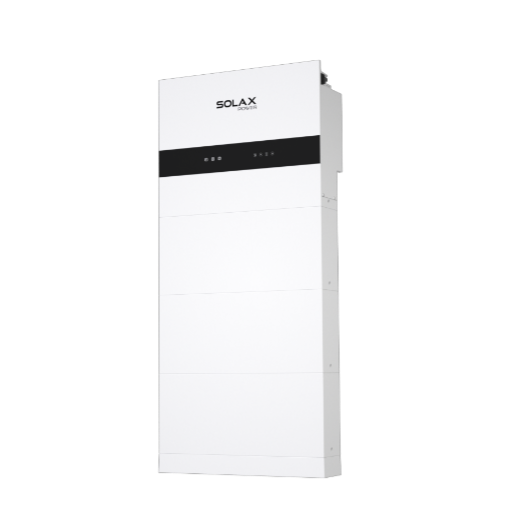

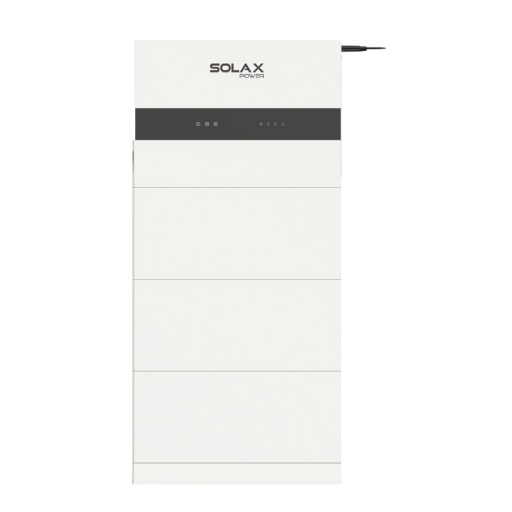

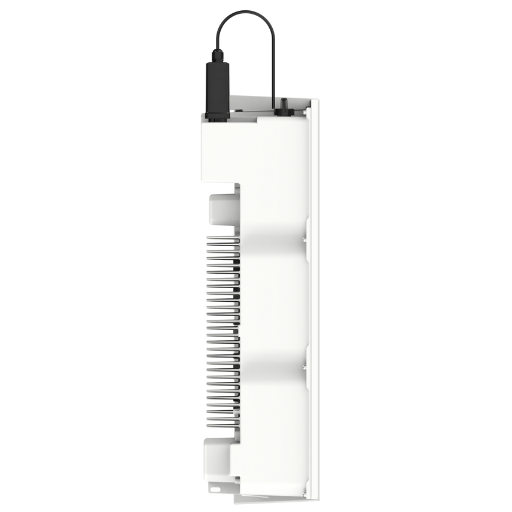

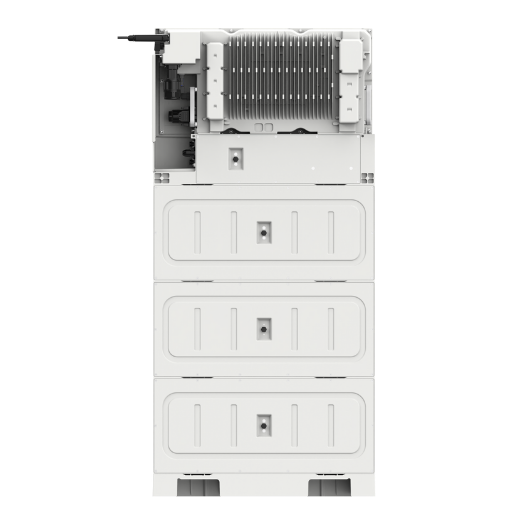

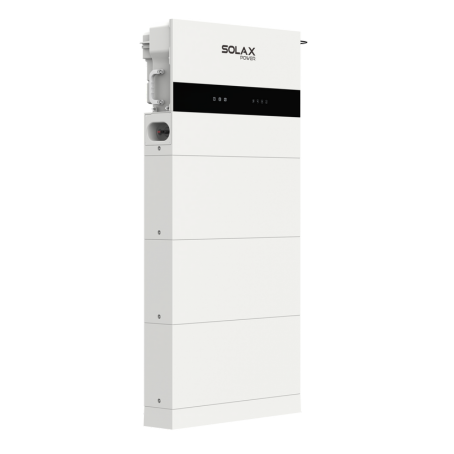

The X1-IES-A features a lightweight, sleek all-in-one design that is both visually appealing and functionally efficient. With integrated battery heating technology, it ensures reliable performance even in extreme cold down to -30°C, making it suitable for diverse climate conditions and off-grid scenarios.

Watch Video
Data Download

Product Advantage

The X1-IES-A supports high charge/discharge currents up to 50A and allows 200% PV input oversizing, maximizing solar energy utilization. It also delivers up to 200% EPS output for 10 seconds, ensuring critical load support during power interruptions.

High Reliability

AFCI optional
Rapid shutdown optional
Type II SPD on AC&DC side
Cobalt free LiFePO4 Battery

Money Saving

7X24 Time of Use (ToU)

AI Driven Energy Management

Smart Schedule
Intelligent loads management
Smart Scene

Robust Backup

<10ms switchover time
200% EPS overload for 10 sec
Max. 50A charging/discharging rate

Product Parameters

X1-IES-3.7K-A
X1-IES-5K-A
X1-IES-6K-A
X1-IES-8K-A

X1-IES-3.7K-A
- INPUT AC

  Nominal AC power [VA]
  3680
  Max. AC current [A]
  16
- OUTPUT AC (On-Grid)

  Rated grid voltage(AC voltage range) [V]
  220 / 230 / 240
  Rated AC output current [A] 16
- BATTERY

  Battery voltage range [V]
  80-480
  Battery module
  TP-HS50E
  Battery type
  Li-ion (LFP)
- GENERAL DATA (INVERTER)

  Dimensions (W x H x D) [mm]
  717 × 350 × 210
  Protection class
  IP66
X1-IES-5K-A
- INPUT AC

  Nominal AC power [VA]
  5000
  Max. AC current [A]
  21.8
- OUTPUT AC (On-Grid)

  Rated grid voltage(AC voltage range) [V]
  220 / 230 / 240
  Rated AC output current [A] 21.8
- BATTERY

  Battery voltage range [V]
  80-480
  Battery module
  TP-HS50E
  Battery type
  Li-ion (LFP)
- GENERAL DATA (INVERTER)

  Dimensions (W x H x D) [mm]
  717 × 350 × 210
  Protection class
  IP66
X1-IES-6K-A
- INPUT AC

  Nominal AC power [VA]
  6000
  Max. AC current [A]
  28.7
- OUTPUT AC (On-Grid)

  Rated grid voltage(AC voltage range) [V]
  220 / 230 / 240
  Rated AC output current [A] 26.1
- BATTERY

  Battery voltage range [V]
  80-480
  Battery module
  TP-HS50E
  Battery type
  Li-ion (LFP)
- GENERAL DATA (INVERTER)

  Dimensions (W x H x D) [mm]
  717 × 350 × 210
  Protection class
  IP66
X1-IES-8K-A
- INPUT AC

  Nominal AC power [VA]
  8000
  Max. AC current [A]
  34.8
- OUTPUT AC (On-Grid)

  Rated grid voltage(AC voltage range) [V]
  220 / 230 / 240
  Rated AC output current [A] 34.8
- BATTERY

  Battery voltage range [V]
  80-480
  Battery module
  TP-HS50E
  Battery type
  Li-ion (LFP)
- GENERAL DATA (INVERTER)

  Dimensions (W x H x D) [mm]
  717 × 350 × 210
  Protection class
  IP66
