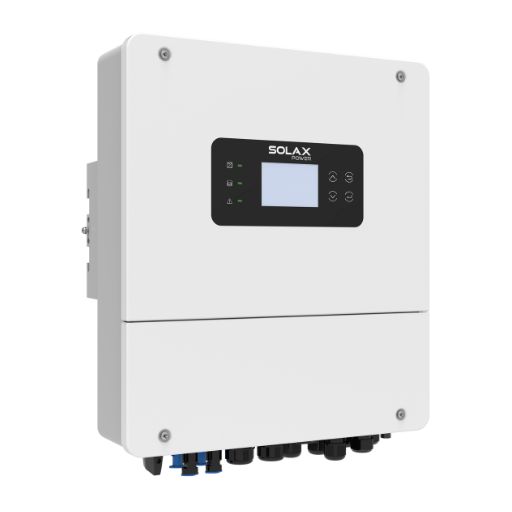

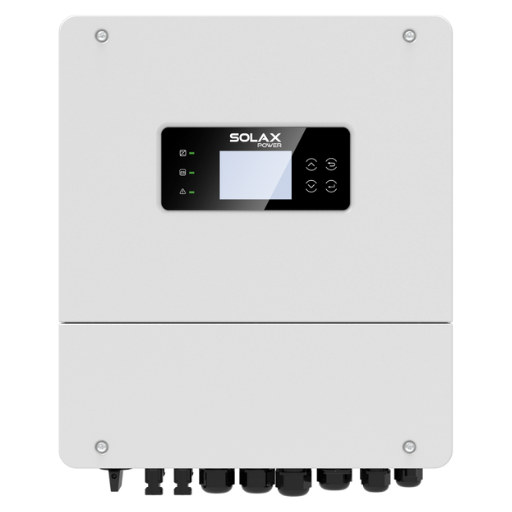

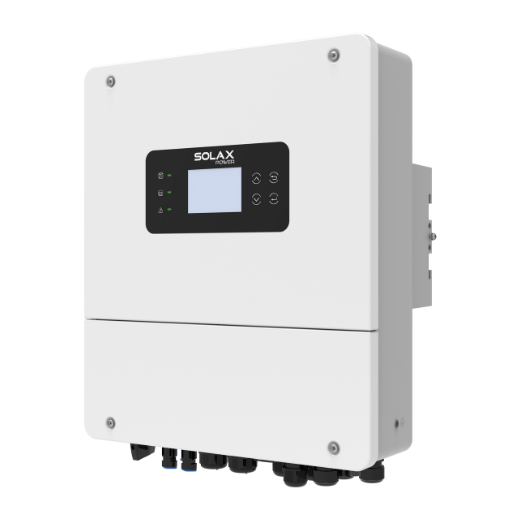

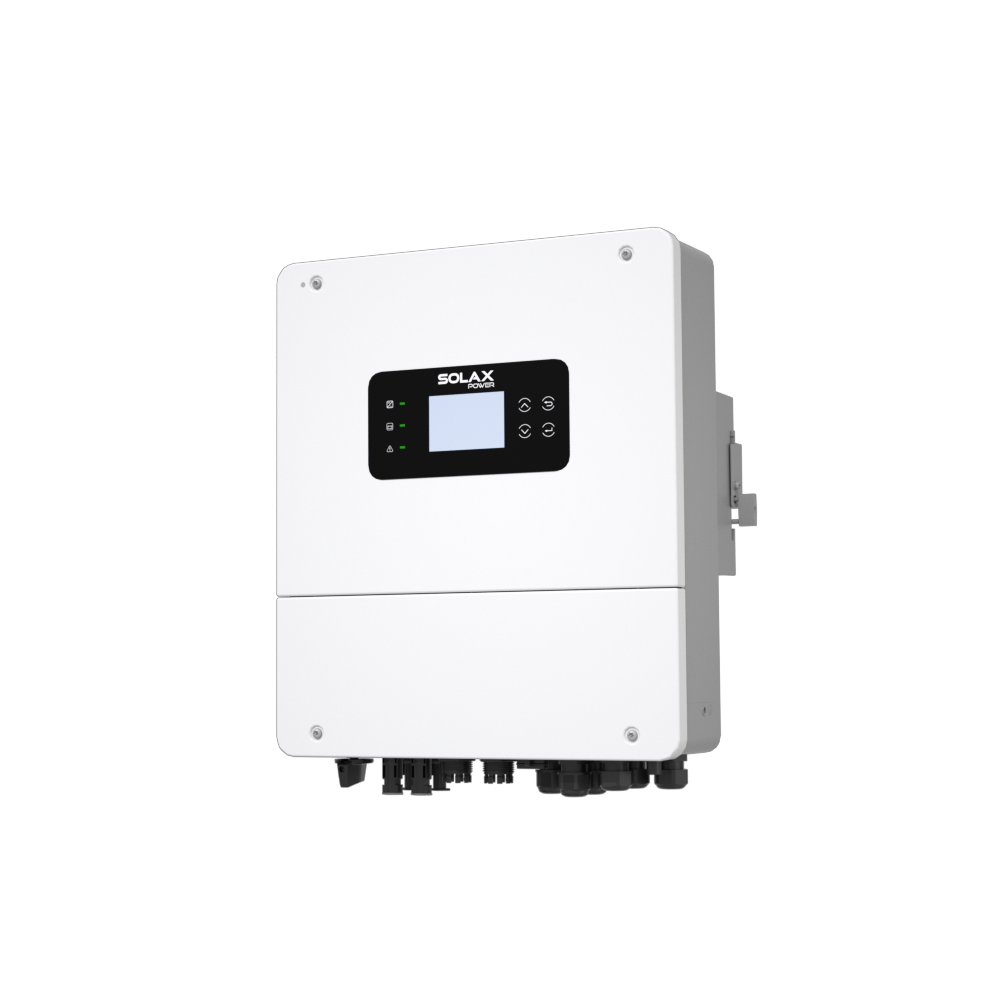

Hybrid Inverter

X1-HYB LV

3.0kW / 3.7kW / 4.0kW / 4.6kW / 5.0kW / 6.0kW

The X1-Hybrid LV series, available from 3kW to 6kW, combines a user-friendly LCD screen to meet modern residential energy needs. The inverter also features easy generator and microgrid integration, making it an ideal choice for a wide range of hybrid solar applications.

Watch Video
Data Download

Product Advantage

Smart Management

Single unit UPS-level switchover time < 4 ms
Global MPP scan for optimal energy harvest
Smart loads management
CT compatibility with fast load response in just 0.3 seconds

High Performance

200% PV oversizing and up to 110% AC output
200% peak EPS power for 10 s
Max. 120A charging / discharging current
Low start-up voltage for longer operation

Assured Reliability

Battery terminal temperature detection
IP65 protection degree
Type II SPD on AC&DC side
Optional AFCI protection*

Flexible Adaptability

Max. 3pcs parallel for on-grid and off-grid*
Microgrid and generator function for versatile operations*
Max. 16A DC input current for high-power solar panel

Product Parameters

X1-HYB-3.0-LV
X1-HYB-3.7-LV
X1-HYB-4.0-LV
X1-HYB-5.0-LV
X1-HYB-6.0-LV

X1-HYB-3.0-LV
- PV INPUT

  Max. recommended PV array power 6000 Wp
  Operating voltage range 80 ~ 520 V
  No. of MPP trackers / strings per MPP tracker 2(1/1)
  Max. input current per MPPT 16 A/16 A
- AC INPUT & OUTPUT(ON-GRID)

  Rated output power 3000 W
  Rated AC voltage 1/N/PE, 220/230/240 V
- EPS (OFF-GRID) OUTPUT (WITH BATTERY)

  Peak EPS output power 6000 VA, 10 s
  Switchover time <4 ms
- GENERAL

  Ingress protection IP65
  Dimensions (W × H × D) 397 × 490 × 201 mm
  Net weight 17.3 kg
X1-HYB-3.7-LV
- PV INPUT

  Max. recommended PV array power 7360 Wp
  Operating voltage range 80 ~ 520 V
  No. of MPP trackers / strings per MPP tracker 2(1/1)
  Max. input current per MPPT 16 A/16 A
- AC INPUT & OUTPUT(ON-GRID)

  Rated output power 3680 W
  Rated AC voltage 1/N/PE, 220/230/240 V
- EPS (OFF-GRID) OUTPUT (WITH BATTERY)

  Peak EPS output power 8000 VA, 10 s
  Switchover time <4 ms
- GENERAL

  Ingress protection IP65
  Dimensions (W × H × D) 397 × 490 × 201 mm
  Net weight 16.5 kg
X1-HYB-4.0-LV
- PV INPUT

  Max. recommended PV array power 8000 Wp
  Operating voltage range 80 ~ 520 V
  No. of MPP trackers / strings per MPP tracker 2(1/1)
  Max. input current per MPPT 16 A/16 A
- AC INPUT & OUTPUT(ON-GRID)

  Rated output power 4000 W
  Rated AC voltage 1/N/PE, 220/230/240 V
- EPS (OFF-GRID) OUTPUT (WITH BATTERY)

  Peak EPS output power 8000 VA, 10 s
  Switchover time <4 ms
- GENERAL

  Ingress protection IP65
  Dimensions (W × H × D) 397 × 490 × 201 mm
  Net weight 16.5 kg
X1-HYB-5.0-LV
- PV INPUT

  Max. recommended PV array power 10000 Wp
  Operating voltage range 80 ~ 520 V
  No. of MPP trackers / strings per MPP tracker 2(1/1)
  Max. input current per MPPT 16 A/16 A
- AC INPUT & OUTPUT(ON-GRID)

  Rated output power 5000 W
  Rated AC voltage 1/N/PE, 220/230/240 V
- EPS (OFF-GRID) OUTPUT (WITH BATTERY)

  Peak EPS output power 10000 VA, 10 s
  Switchover time <4 ms
- GENERAL

  Ingress protection IP65
  Dimensions (W × H × D) 397 × 490 × 201 mm
  Net weight 17.3 kg
X1-HYB-6.0-LV
- PV INPUT

  Max. recommended PV array power 12000 Wp
  Operating voltage range 80 ~ 520 V
  No. of MPP trackers / strings per MPP tracker 2(1/1)
  Max. input current per MPPT 16 A/16 A
- AC INPUT & OUTPUT(ON-GRID)

  Rated output power 6000 W
  Rated AC voltage 1/N/PE, 220/230/240 V
- EPS (OFF-GRID) OUTPUT (WITH BATTERY)

  Peak EPS output power 12000 VA, 10 s
  Switchover time <4 ms
- GENERAL

  Ingress protection IP65
  Dimensions (W × H × D) 397 × 490 × 201 mm
  Net weight 17.3 kg
