Utility ESS

ORI

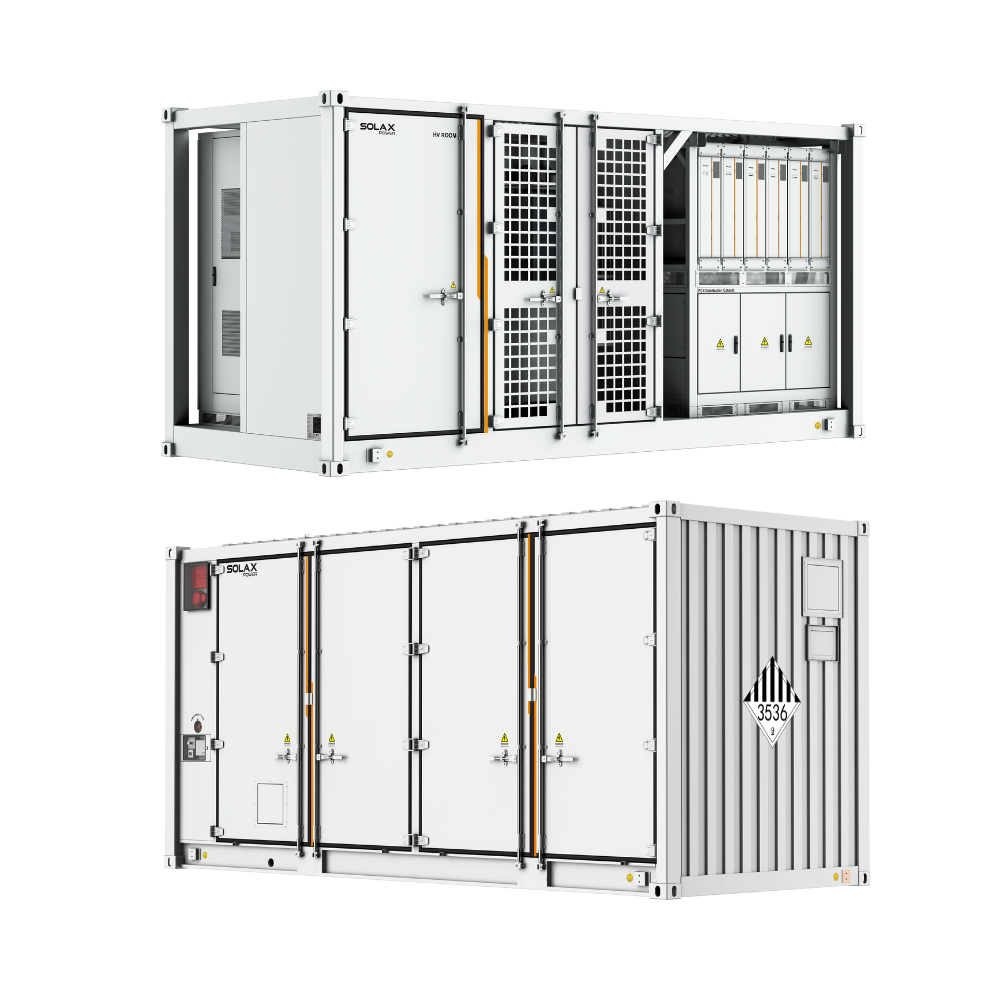

Liquid Cooling ESS System

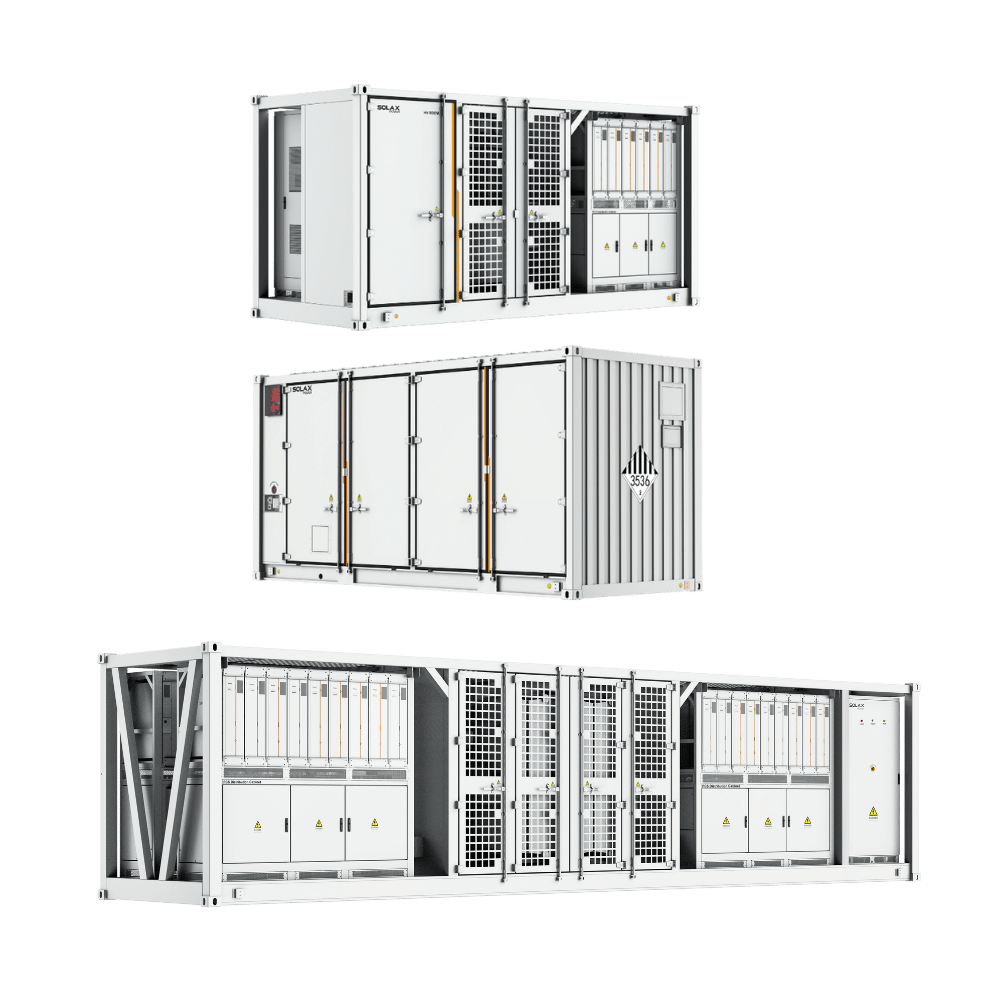

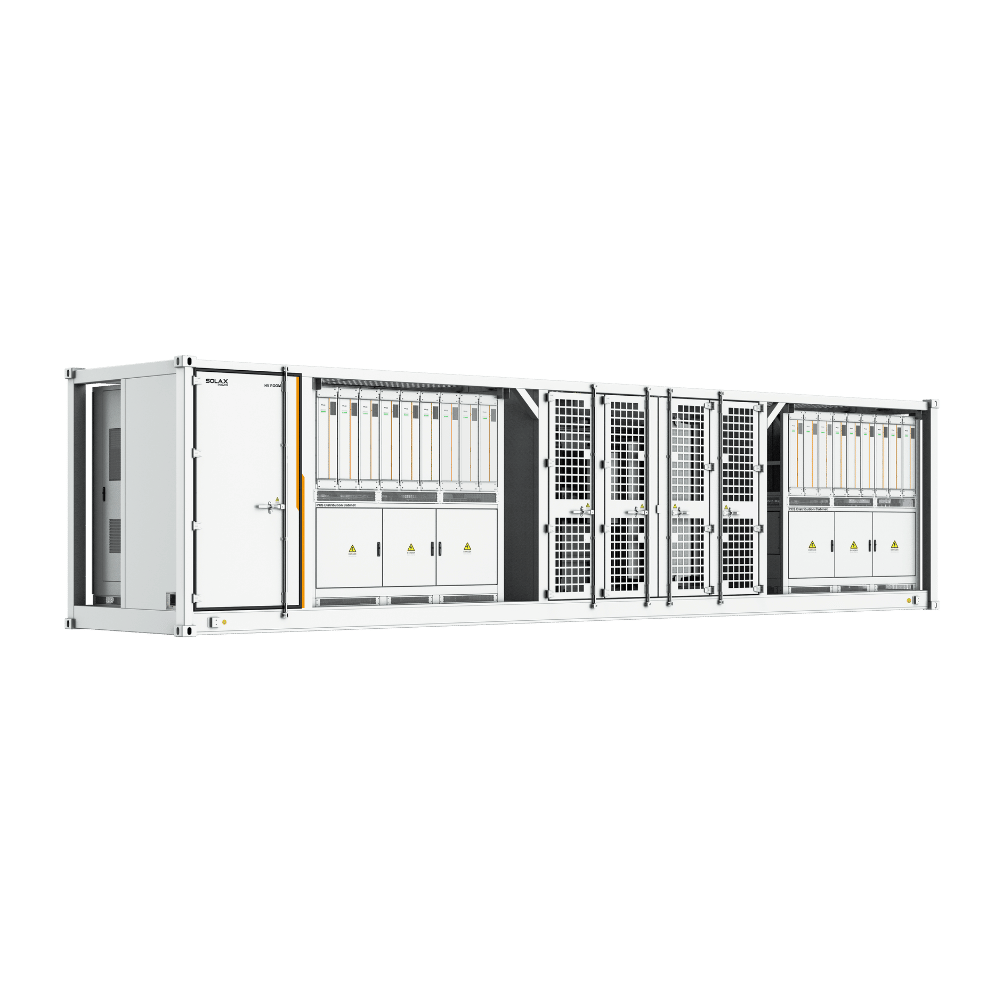

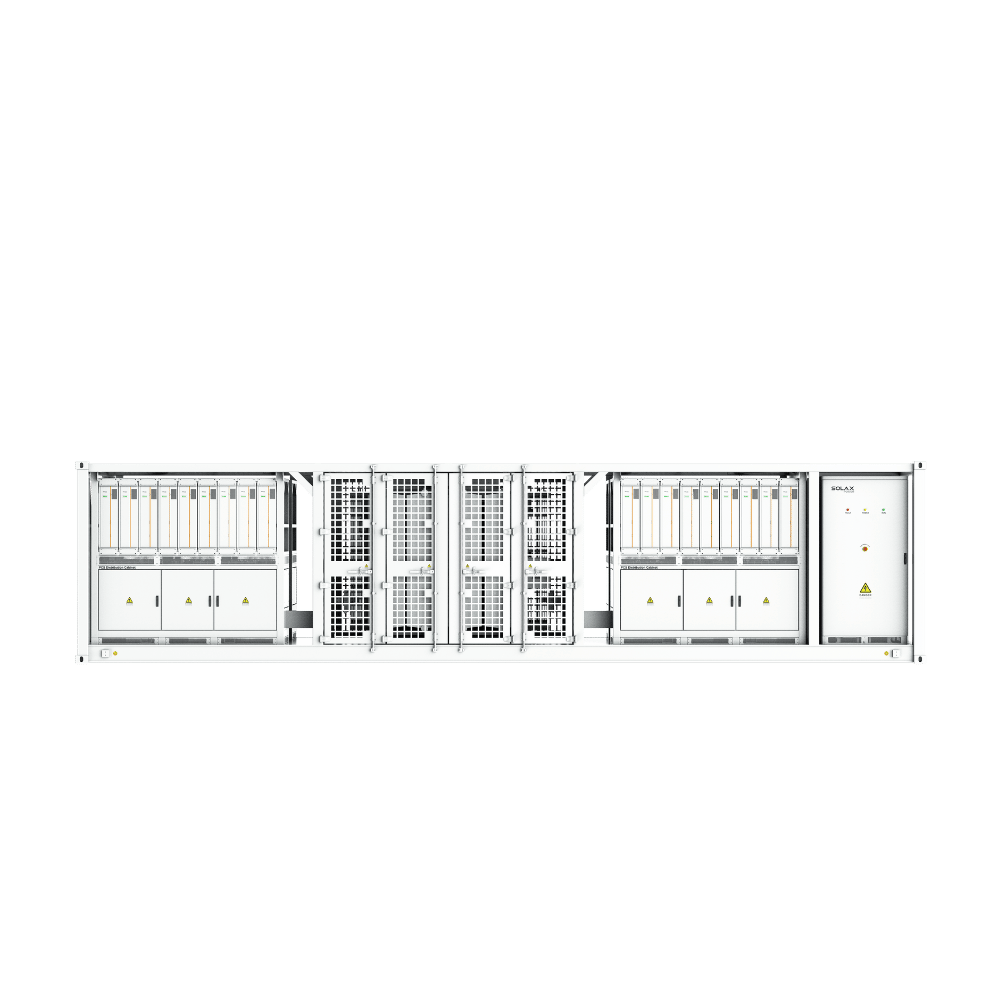

The ORI energy storage system combines a 2.5 MW PCS and 5.015 MWh battery system in a containerized design. Featuring premium LFP battery cells and advanced liquid cooling, the utility-scale energy storage system ensures fast deployment and reduced on-site work.

Data Download

Product Advantage

It features a high-performance string PCS with a maximum efficiency of 99%, ensuring maximum energy utilization. With pre-installed components and factory pre-commissioning, the system significantly shortens on-site installation time—ideal for rapid deployment in utility-scale energy storage projects.

Fast Deployment

One-stop service with streamlined coordination
Pre-installed components for rapid setup
Factory pre-commissioning halves debugging time

Advanced Safety

Multi-level monitoring ensures system reliability
Fire-resistant compartments prevent thermal runaway
Integrated detection and suppression for rapid risk control

System Flexibility

Modular design enhances uptime and scalability
IP55 outdoor cablinet and lP66 components handleharsh conditions
Rapid maintenance with 1-hour part replacement

High Efficiency

Intelligent clusters maximize output and efficiency
Liquid cooling ensures s3°C temperature unifommity
Smart controls lower energy and maintenance costs
Compact design reduces space and constructiondemands

Product Parameters

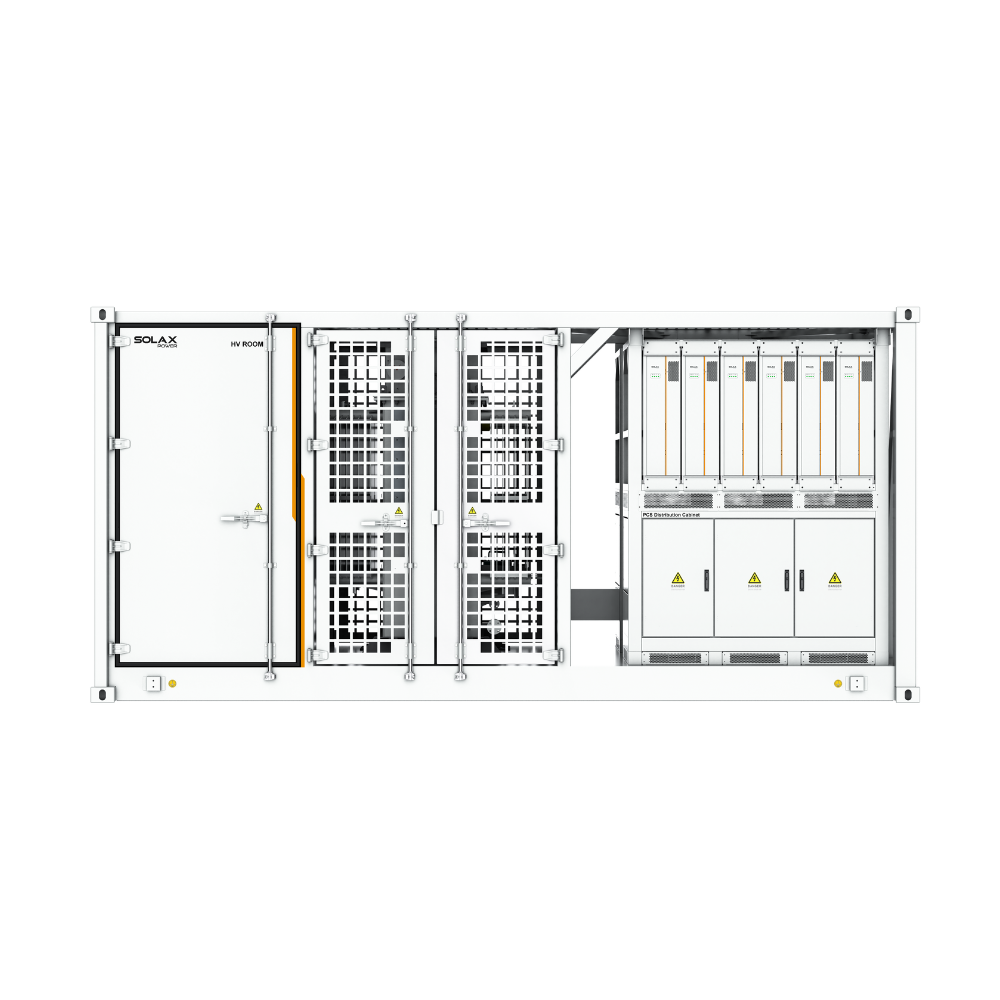

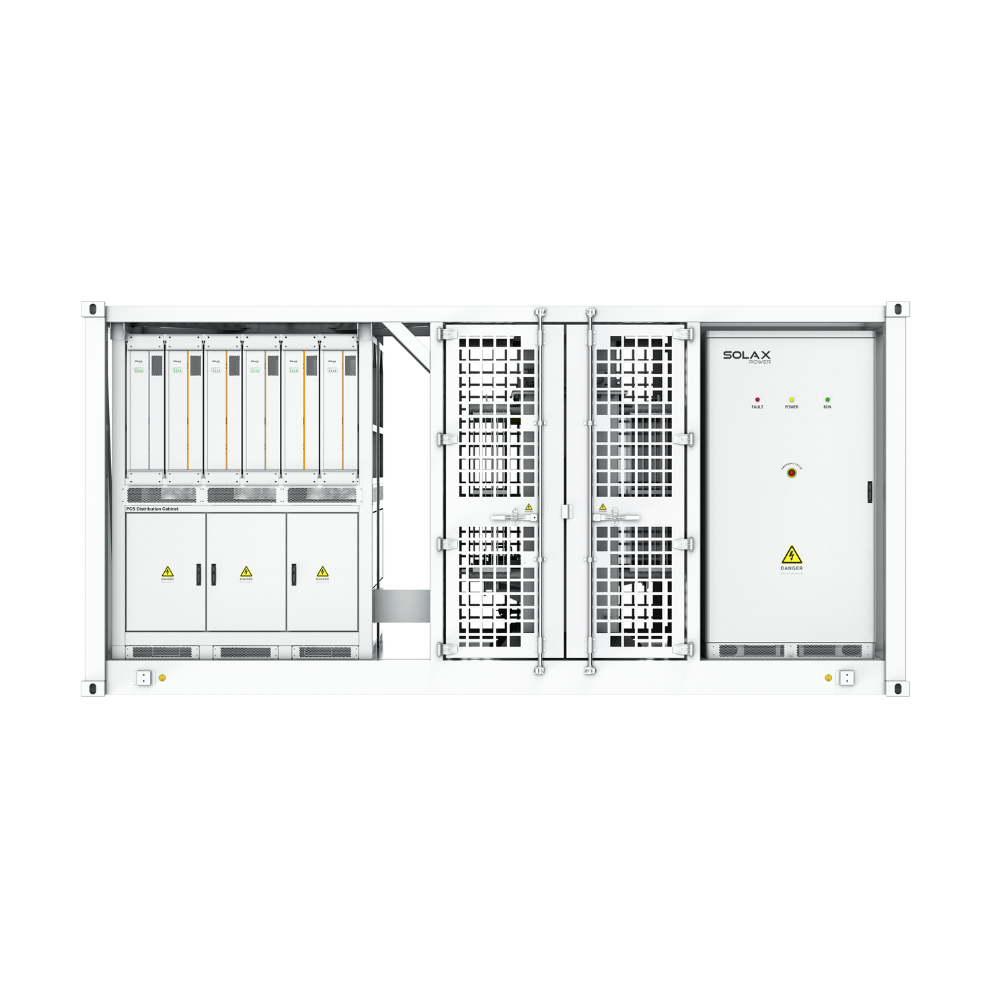

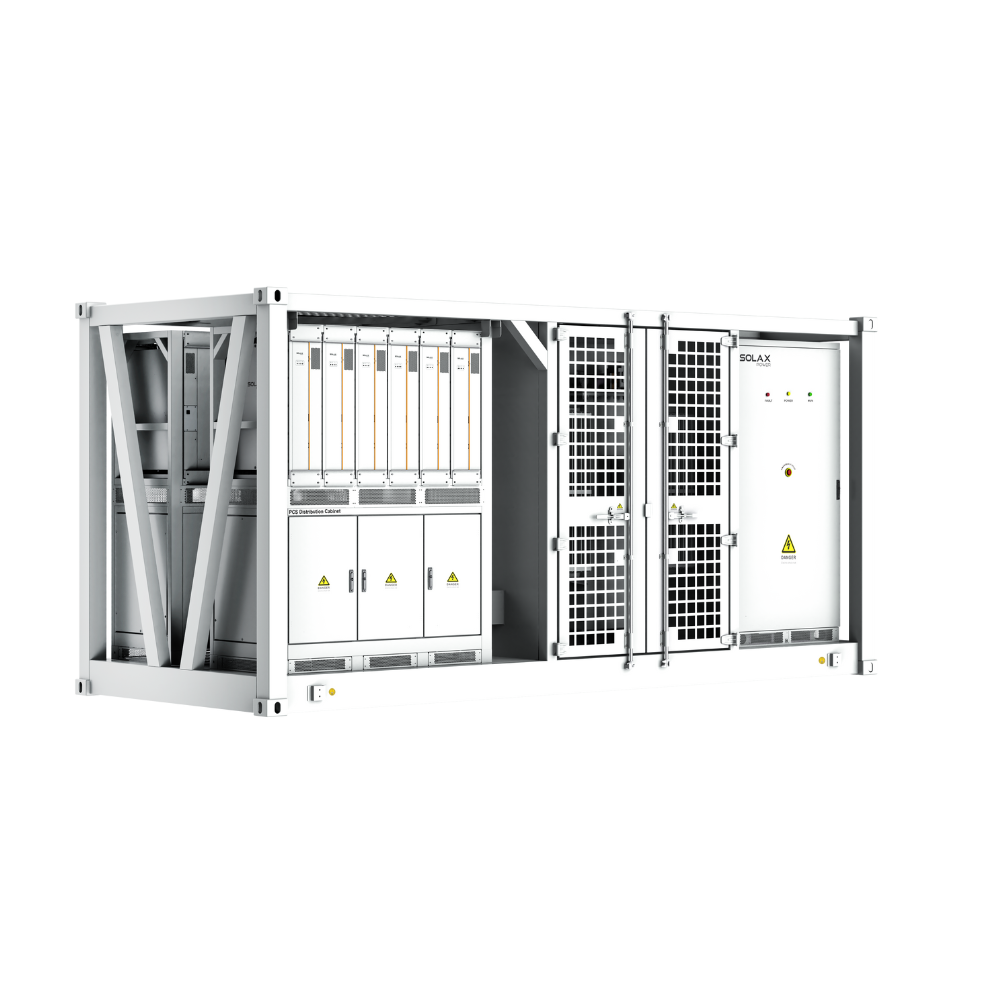

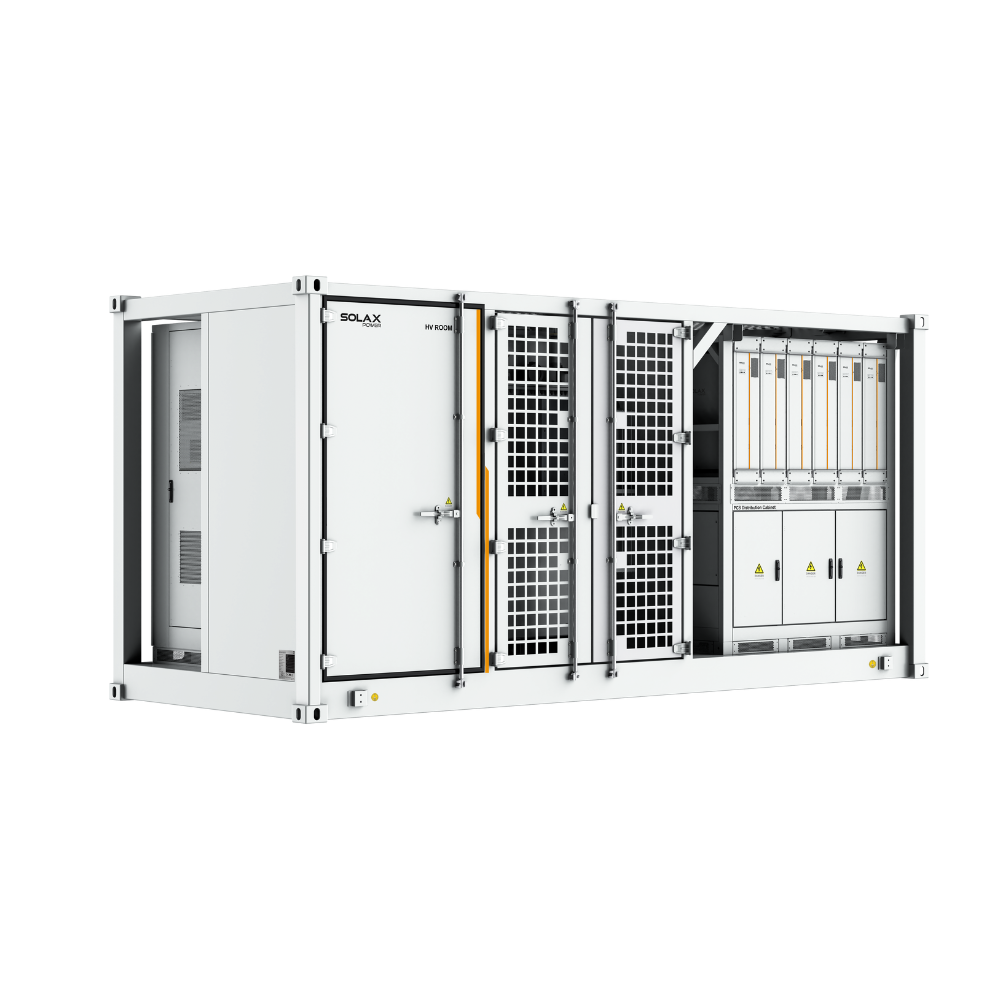

ORI-P2500

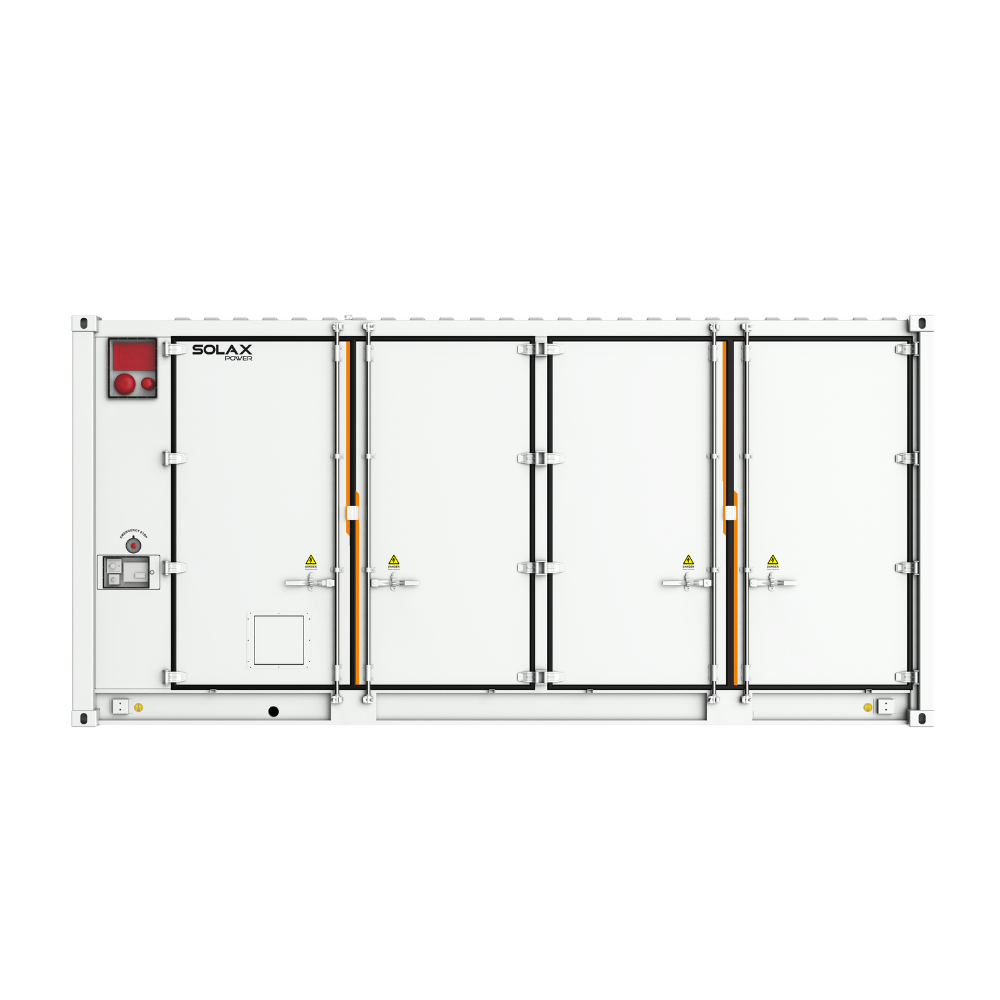

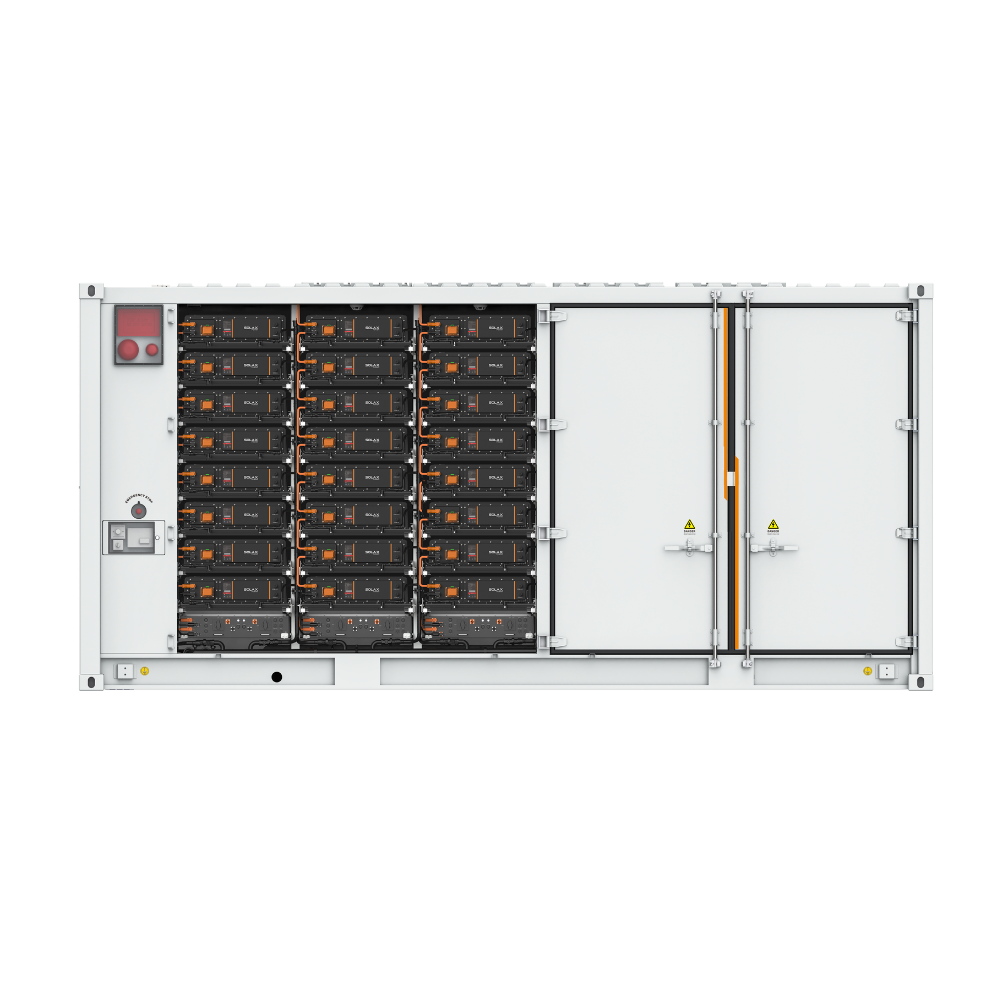

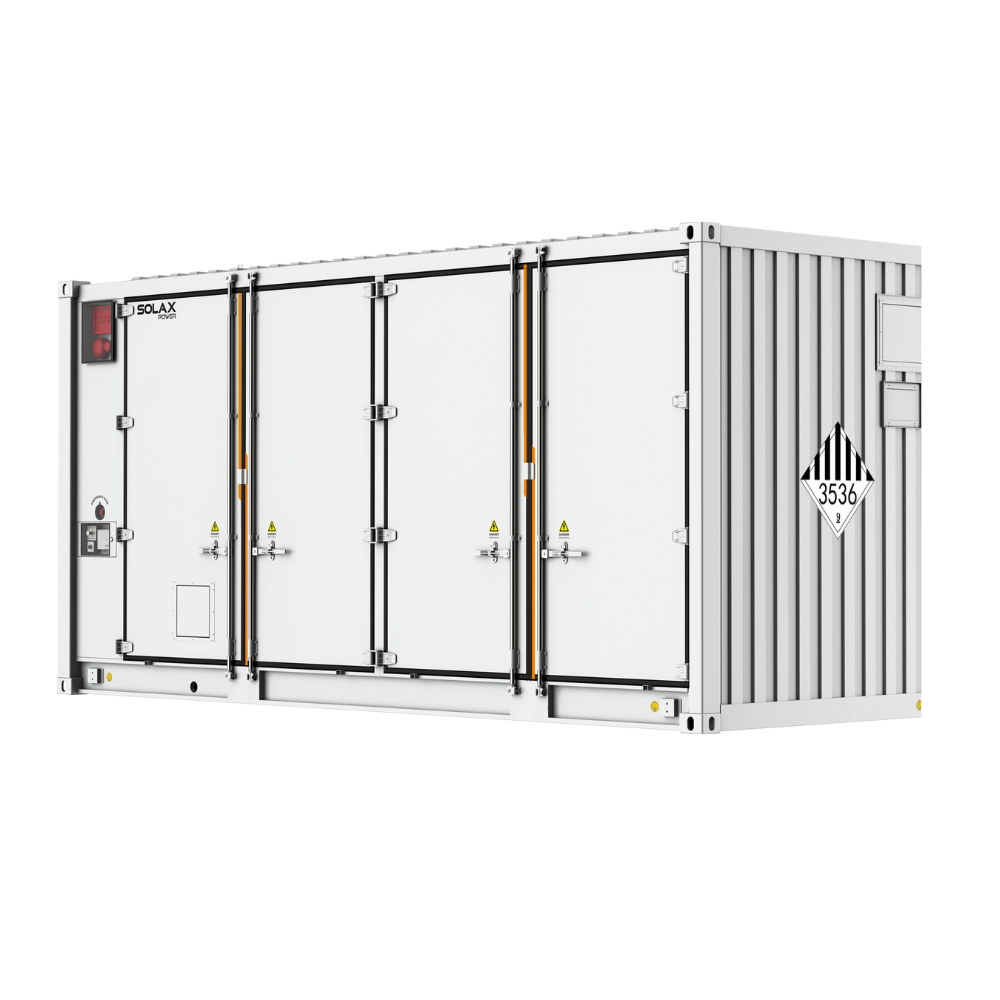

ORI-B5015L-2H

ORI-P2500
- DC SIDE

  Max. DC voltage
  150 V
  Rated DC power 5015 kWh
  DC voltage range
  1000~1500V
- AC SIDE

  Rated AC power
  2500 kVA
  Rated AC voltage
  6~35kV
  Rated AC frequency
  50/60 Hz
- GENERAL

  lsolation method
  Dry-type / Oilimmersed transformer
  Max. operating altitude
  ≤2000 m(optional: 4000m)
  Dimensions (W x H x D)
  6058 x2896 x2438 mm
  Container weight
  ≤ 18 t
ORI-B5015L-2H
- DC SIDE

  DC rated voltage
  1331.2 V
  Rated energy capacity 5015 kWh
  Pack structure
  1P416S*12
- GENERAL

  Cooling method
  Liquid cooling
  Max. operating altitude
  ≤ 4000 m
  Dimensions (W x H x D)
  6058 x 2896 x 2438 mm
  Container weight
  ≤ 43 t
