Residential Batteries
T-BAT H 5.8
-
T-BAT H5.8 / T-BAT H5.8 V2 / HV11550 / HV11550 V2

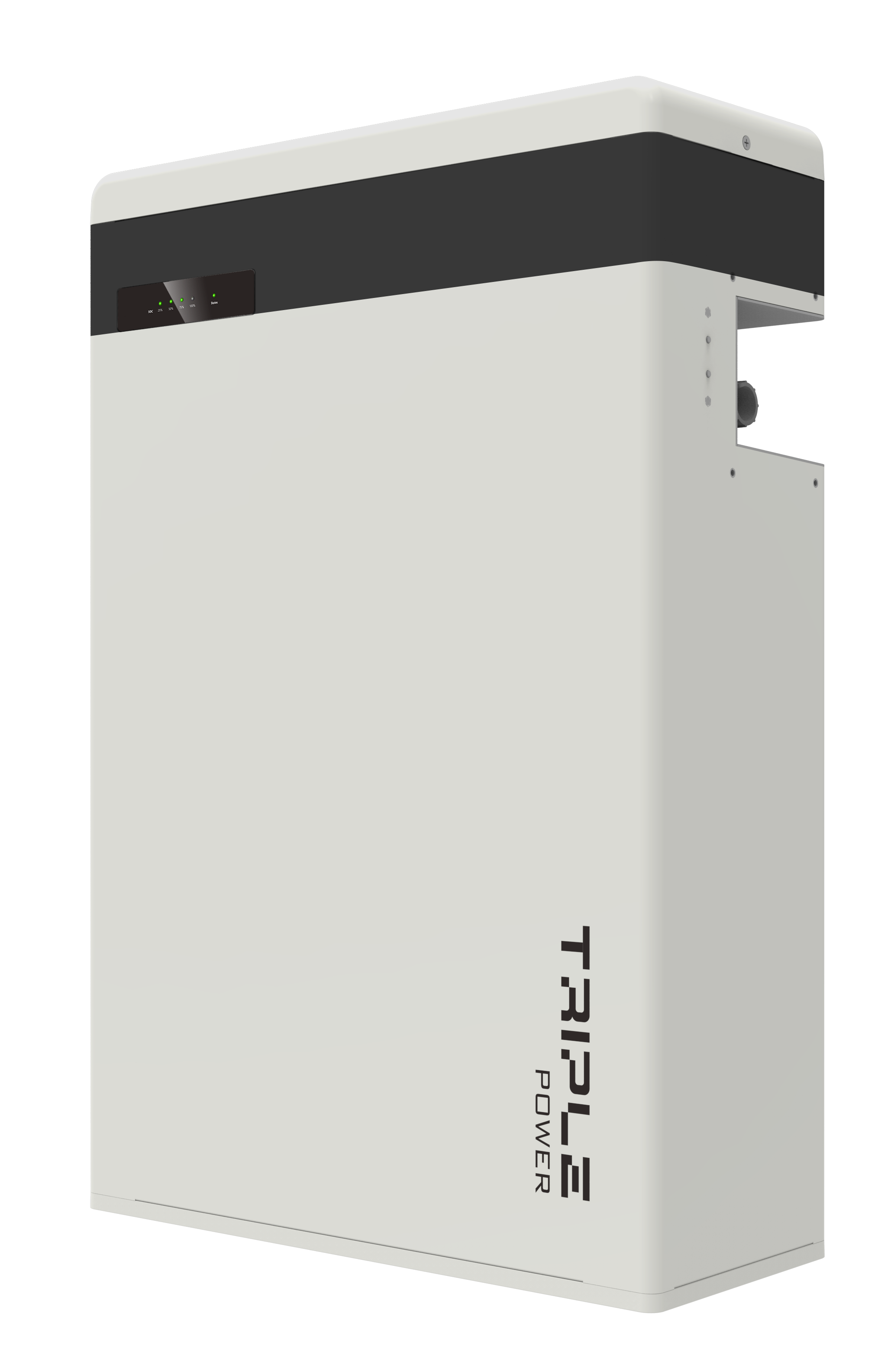

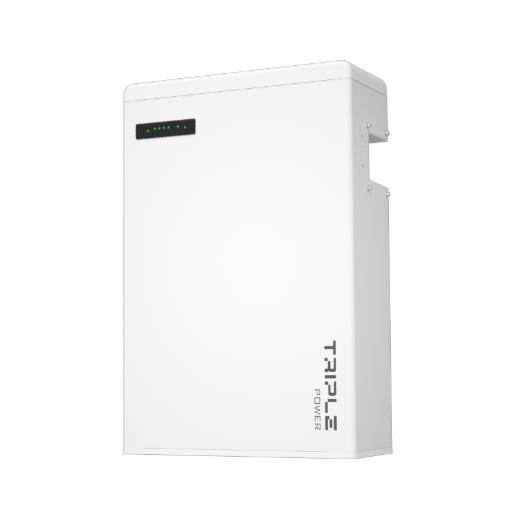

The T-BAT H 5.8 offers a flexible installation process with the option to mount the system on the floor or wall, providing convenience for different spaces. Its compact design ensures quick installation and reduced self-consumption, making it an ideal energy storage solution.
Product Advantage
The T-BAT H 5.8 delivers impressive depth of discharge (DOD) of up to 90% and a cycle life exceeding 6000 cycles. With an IP65 protection rating, it guarantees reliable operation in harsh conditions, while remaining eco-friendly with no toxic heavy metals or caustic materials.
High Performance
90% Depth of Discharge (DOD)
Cycle life > 6000 times
Assured Reliability
IP65 protection degree
LFP battery cell & high-performance processors
No toxic heavy metals or caustic materials
Smart Management
Remote fault diagnosis, upgrade and maintenance
Flexible Adaptability
Floor or wall mounting optional
Product Parameters
-
T-BAT H 23 / T-BAT H 23 V2-
GENERAL
Nominal voltage 460.8 V Total capacity 23.0 kWh Dimensions (L ×W × H)
474 × 193 × 708 mm + (474 × 193 × 647 mm) × 3
Weight
72.2 kg + 68.5 kg × 3
-
BATTERY MODULE
Battery type LFP Max. charge / discharge current 35 A -
ENVIRONMENTAL REQUIREMENTS
Ingress protection IP65 Hazardous materials classification Class 9
-
-
T-BAT H 17.3 / T-BAT H 17.3 V2
-
GENERAL
Nominal voltage 345.6 V Total capacity 17.3 kWh Dimensions (L ×W × H)
474 × 193 × 708 mm + (474 × 193 × 647 mm) × 2
Weight
72.2 kg + 68.5 kg × 2
-
BATTERY MODULE
Battery type LFP Max. charge / discharge current 35 A -
ENVIRONMENTAL REQUIREMENTS
Ingress protection IP65 Hazardous materials classification Class 9
-
-
T-BAT H 11.5 / T-BAT H 11.5 V2
-
GENERAL
Nominal voltage 230.4 V Total capacity 11.5 kWh Dimensions (L ×W × H)
474 × 193 × 708 mm + 474 × 193 × 647 mm
Weight
72.2 kg + 68.5 kg
-
BATTERY MODULE
Battery type LFP Max. charge / discharge current 35 A -
ENVIRONMENTAL REQUIREMENTS
Ingress protection IP65 Hazardous materials classification Class 9
-
-
T-BAT H 5.8 / T-BAT H 5.8 V2
-
GENERAL
Nominal voltage 115.2 V Total capacity 5.8 kWh Dimensions (L ×W × H)
474 × 193 × 708 mm
Weight
72.2 kg
-
BATTERY MODULE
Battery type LFP Max. charge / discharge current 35 A -
ENVIRONMENTAL REQUIREMENTS
Ingress protection IP65 Hazardous materials classification Class 9
-
