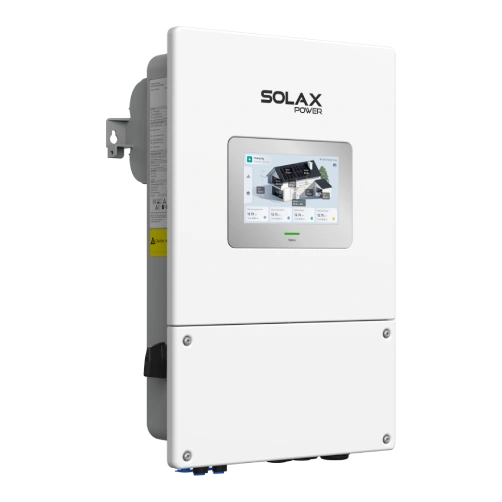

Hybrid Inverter
LVE
-
3kW / 3.6kW / 5kW / 6kW
The user-friendly 7-inch LCD touchscreen supports multiple languages for effortless setup and monitoring. Smart load and generator support, compatibility with multiple third-party batteries, and parallel operation of up to 6 units make it easy to tailor the system to different home energy needs.
Product Advantage
Built for dependable performance in demanding conditions, the inverter supports 200% PV input power and 200% oversizing for greater solar utilization.Support plus super-backup without a battery guarantee reliable power even in off-grid situations.
Smart Management
User-friendly 7-inch LCD touch screen with multi-language supported
Smart Load & Generator Support
Assured Reliability
IP66 ingress protection
Type II SPD on AC & DC side
AFCI protection optional
Super-backup without battery in off-grid situation
High Performance
200% oversizing and 200% PV input power
Low start-up voltage & Global MPP Scan for higher energy harvest
Single unit UPS-level switchover time 0ms
Whisper-quiet operation as low as 30 dB at night (Performance data is based on tested conditions. Actual results may vary depending on operating conditions)
Flexible Adaptability
Max. 6 pcs parallel for on-grid and off-grid
Compatible with multiple third-party batteries
Product Parameters
-
LVE3S-S2-
PV INPUT
Max. recommended PV array power 6000 Wp Operating voltage range 60 ~ 480 d.c. V No. of MPP trackers / strings per MPP tracker 1 / 1 Max. input current per MPPT 20 d.c. A -
AC INPUT & OUTPUT(ON-GRID)
Rated output apparent power 3000 VA Rated AC voltage 220 / 230 / 240 a.c. V -
EPS (OFF-GRID) OUTPUT (WITH BATTERY)
Rated EPS apparent power 3000 VA Rated EPS output voltage, frequency 230 a.c. V, 50 / 60Hz -
GENERAL
Ingress protection IP66 Dimensions (W × H × D) 378 × 570 × 200 mm Net weight 14.5 kg
-
-
LVE3.6S-S2
-
PV INPUT
Max. recommended PV array power 7200 Wp Operating voltage range 60 ~ 480 d.c. V No. of MPP trackers / strings per MPP tracker 1 / 1 Max. input current per MPPT 20 d.c. A -
AC INPUT & OUTPUT(ON-GRID)
Rated output apparent power 3680 VA Rated AC voltage 220 / 230 / 240 a.c. V -
EPS (OFF-GRID) OUTPUT (WITH BATTERY)
Rated EPS apparent power 3680 VA Rated EPS output voltage, frequency 230 a.c. V, 50 / 60Hz -
GENERAL
Ingress protection IP66 Dimensions (W × H × D) 378 × 570 × 200 mm Net weight 14.5 kg
-
-
LVE5S-S2
-
PV INPUT
Max. recommended PV array power 10000 Wp Operating voltage range 60 ~ 480 d.c. V No. of MPP trackers / strings per MPP tracker 2 (1 / 1) Max. input current per MPPT 20 / 20 d.c. A -
AC INPUT & OUTPUT(ON-GRID)
Rated output apparent power 5000 VA Rated AC voltage 220 / 230 / 240 a.c. V -
EPS (OFF-GRID) OUTPUT (WITH BATTERY)
Rated EPS apparent power 5000 VA Rated EPS output voltage, frequency 230 a.c. V, 50 / 60Hz -
GENERAL
Ingress protection IP66 Dimensions (W × H × D) 378 × 570 × 200 mm Net weight 14.5 kg
-
-
LVE6S-S2
-
PV INPUT
Max. recommended PV array power 12000 Wp Operating voltage range 60 ~ 480 d.c. V No. of MPP trackers / strings per MPP tracker 2 (1 / 1) Max. input current per MPPT 20 / 20 d.c. A -
AC INPUT & OUTPUT(ON-GRID)
Rated output apparent power 6000 VA Rated AC voltage 220 / 230 / 240 a.c. V -
EPS (OFF-GRID) OUTPUT (WITH BATTERY)
Rated EPS apparent power 6000 VA Rated EPS output voltage, frequency 230 a.c. V, 50 / 60Hz -
GENERAL
Ingress protection IP66 Dimensions (W × H × D) 378 × 570 × 200 mm Net weight 14.5 kg
-
Data Download
-
Datasheet
-
File nameLanguageFormatSizeLast updateddownload
