Rogowski Coil
-
Accessories for SolaX Meter

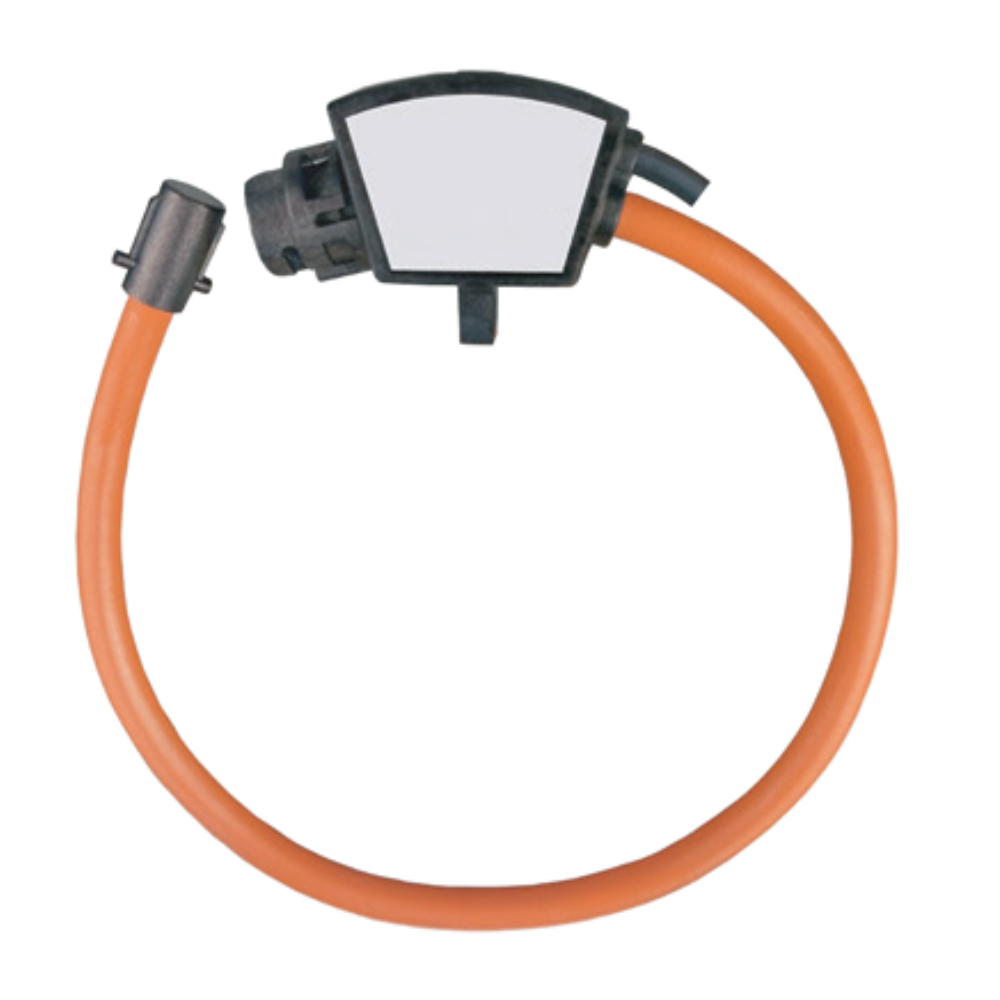

The Rogowski Coil is designed for high-current measurement with a flexible coil structure that allows easy installation. It supports primary current inputs of 1000A and 1500A with a 40mA secondary output, and is fully compatible with SolaX Meter M3-40 and M3-40-Dual.
Product Advantage
With safe operation and stable signal output, the Rogowski Coil ensures reliable current measurement for large-scale and high-load systems. It ensures long-term reliability in demanding energy monitoring scenarios.
General
Coil type, easy & quick installation
Primary input 1000A / 1500A
Secondary output 40mA
Safe operation
Product Parameters
-
1500A/40mA(3in1)-
GENERAL
Adaptation model M3-40 / M3-40-Dual Frequency 45 Hz ~ 65 Hz Rated current 1500 A Transformation ratio 37500 : 1 Waterproof grade IP67 Certification CE, IP68, Rohs 2.0
-
-
1000A/40mA(3in1)
-
GENERAL
Adaptation model M3-40 / M3-40-Dual Frequency 45 Hz ~ 65 Hz Rated current 1000 A Transformation ratio 25000 : 1 Waterproof grade IP67 Certification CE, IP68, Rohs 2.0
-
