Monitoring Device

Pocket Dongle

Pocket 4G V3.0 / Pocket WiFi V4.0 / Pocket WiFi V3.0-P / Pocket WiFi+LAN / Pocket WiFi+4GM

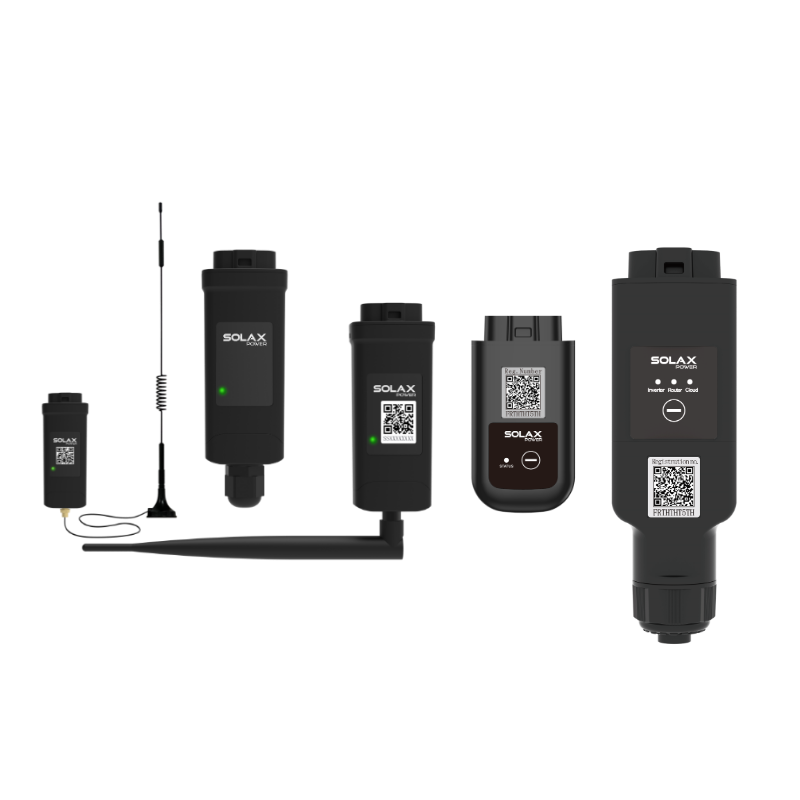

The Pocket Series by SolaX—including Pocket 4G V3.0, Pocket WiFi V4.0, Pocket WiFi V3.0-P, Pocket WiFi+LAN, and Pocket WiFi+4GM—features a sleek, plug-and-play form factor with robust IP65 waterproof and dustproof protection. These models adapt effortlessly to deliver uninterrupted communication between your solar system and the cloud.

Data Download

Product Advantage

The SolaX Pocket communication devices offer fast 10-second live data refresh, offline data storage and resume. The SolaX Pocket series are ideal for scalable solar and energy applications.

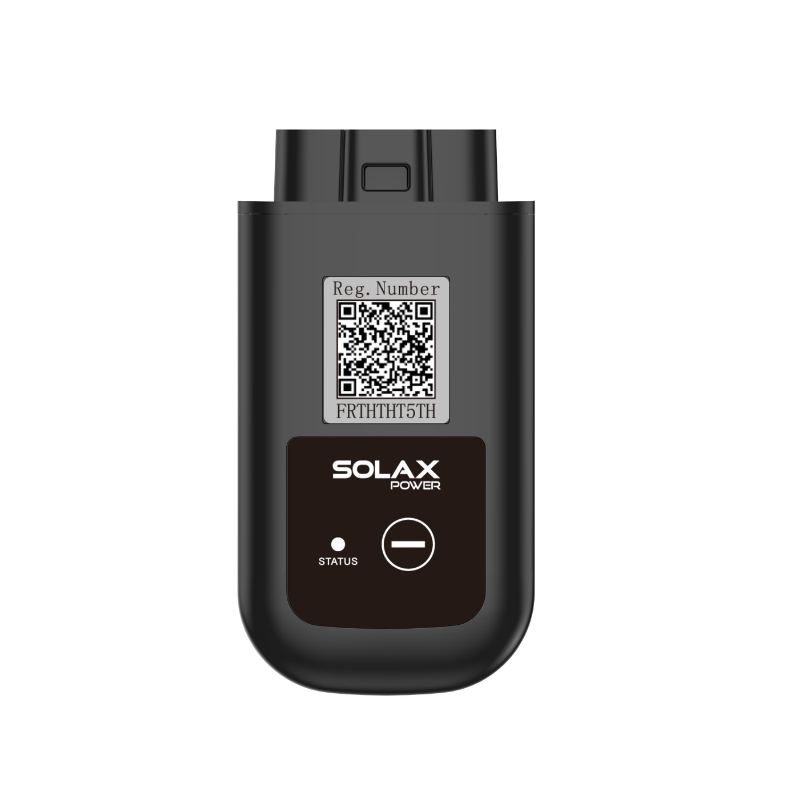

Pocket 4G V3.0

Quick installation with "Plug & Play" function
IP 65 dust prevention water proofing designs
Stable data transmission and good reliability
Offline data storage and resuming
Multi-communication operator support

Pocket WiFi V4.0

WiFi 6 Technology: Faster, more stable device connections
Bluetooth Setup: Supports Bluetooth/AP dual modes for seamless networking
10s-Live Data: Real-time response with ultra-precise data
Extended Range: 30% longer transmission distance vs. WiFi V3.0 with strong penetration
30-Day Offline Resumption: Auto-caches data locally during disconnection; no data loss
IEEE 2030.5: Smart grid integration for real-time energy management
Compact Design: 25% smaller than WiFi V3.0; sleeker and more portable
Clear Indicators & Buttons: Intuitive interface reduces misoperations

Pocket WiFi+4GM

Quick installation with "Plug & Play" function
IP65 dust prevention and waterproof design
Stable data transmission and good reliability
Offline data storage and resume
10-second live data monitoring
Modbus TCP support
IEEE2030.5 support*

Pocket WiFi+LAN V2.0

Seamless Setup: Easily connect devices using Bluetooth for a hassle-free setup experience.
Uninterrupted Service: Maintain data transmission for up to 30 days without a network.
Stable and Fast: Ensure a stable and high-speed connection via Ethernet; Quick and easy installation with Plug and Play.
Space-Saving: Smaller size for an elegant and coordinated look.
Reboot/Reset/AP Mode: Physical buttons for easy reboot, reset, and AP mode activation.
Self-Diagnosis: Self-diagnosis capabilities for easy troubleshooting.

Pocket WiFi+LAN

Quick installation with "Plug & Play" function
IP65 dust prevention and waterproof design
Stable data transmission and good reliability
Offline data storage and resume
10-second live data monitoring
Modbus TCP support
IEEE2030.5 support*
OpenADR support*
Supports automatic switching between WiFi and LAN in different scenarios

Pocket WiFi V3.0-P

Quick installation with "Plug & Play" function
IP65 dust prevention and waterproof design
Stable data transmission and good reliability
Offline data storage and resume
Multiple antenna adaptations according to the situation
10-second live data monitoring
Modbus TCP support
IEEE2030.5 support*
OpenADR support*

Product Parameters

Pocket 4G
Pocket WiFi+LAN V2.0
Pocket WiFi V4.0
Pocket WiFi+4GM
Pocket WiFi+LAN
Pocket WiFi V3.0-P

Pocket 4G
- MECHANICAL DATA

  Dimensions(W × H × D) 112 * 45.7 * 28.5 mm
  Weight 135 g
- ENVIRONMENTAL & PROTECTION

  Operating temperature range -35°C ~ +75°C
  Degree of protection IP65
Pocket WiFi+LAN V2.0
- MECHANICAL DATA

  Dimensions(W × H × D) 134 × 44 × 26.5 mm
  Weight 80±10 g
- COMMUNICATION FEATURES

  Wireless module WiFi 2.4 GHz
  Antenna gain 0.86 dBi
  Data transfer interval 5 mins / 10s optional
- ENVIRONMENTAL & PROTECTION

  Operating temperature range -30°C ~ +60°C
  Degree of protection IP65
Pocket WiFi V4.0
- MECHANICAL DATA

  Dimensions(W × H × D) 83 × 44 × 26.5 mm
  Weight 45 ± 10 g
- COMMUNICATION FEATURES

  Wireless module WiFi 6, 2.4 GHz
  Antenna gain 0.5 dBi
  Data Transfer Intervals
  5 mins / 10 s (optional)
- ENVIRONMENTAL & PROTECTION

  Operating temperature -30°C ~ +60°C
  Protection Degree
  IP65
Pocket WiFi+4GM
- MECHANICAL DATA

  Dimensions(W × H × D) 112 x 45.7 x 28.5 mm
  Weight 124 ± 10 g
- COMMUNICATION FEATURES

  Wireless module WiFi 2.4 GHz
  Antenna gain 3 dBi
  Data transfer interval 5 mins / 10s optional
- ENVIRONMENTAL & PROTECTION

  Operating temperature range -35°C ~ +60°C
  Degree of protection IP65
Pocket WiFi+LAN
- MECHANICAL DATA

  Dimensions(W × H × D) 112 x 45.7 x 28.5 mm
  Weight 80 ± 10 g
- COMMUNICATION FEATURES

  Wireless module WiFi 2.4 GHz
  Antenna gain 3 dBi
  Data transfer interval 5 mins / 10s optional
- ENVIRONMENTAL & PROTECTION

  Operating temperature range -35°C ~ +60°C
  Degree of protection IP65
Pocket WiFi V3.0-P
- MECHANICAL DATA

  Dimensions(W × H × D) 112 x 45.7 x 28.5 mm
  Weight 107 ± 10 g
- COMMUNICATION FEATURES

  Wireless module WiFi 2.4 GHz
  Antenna gain 3 dBi
  Data transfer interval 5 mins / 10s optional
- ENVIRONMENTAL & PROTECTION

  Operating temperature range -35°C ~ +60°C
  Degree of protection IP65
