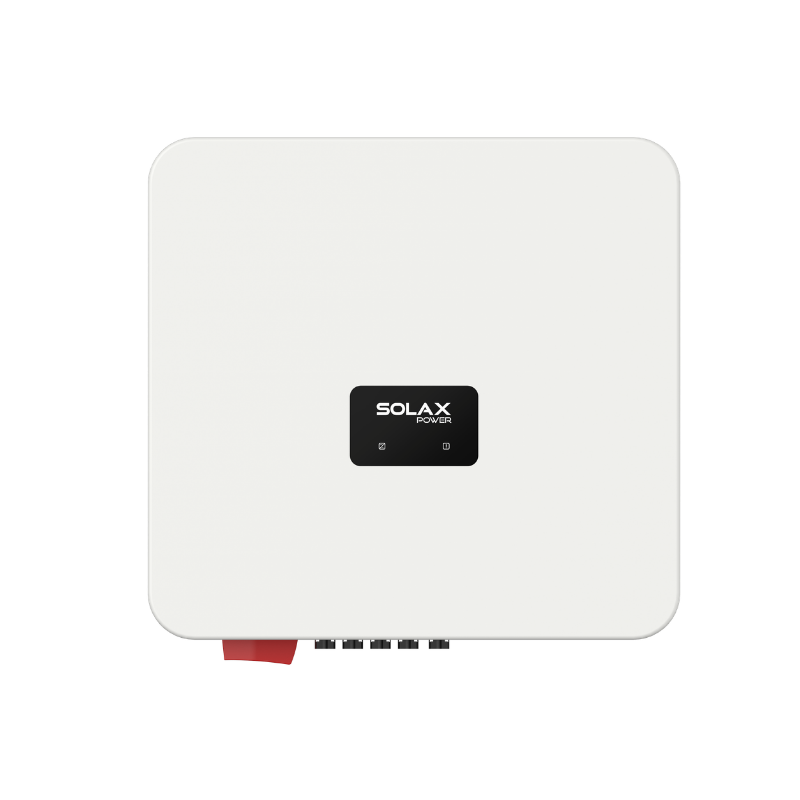

Three Phase Inverter

MIC G3

4kW / 5kW / 6kW / 8kW / 10kW / 12kW / 15kW

The MIC G3 series delivers an ideal balance of ultra-high efficiency, robust safety, intelligent energy management, and flexible adaptability—making it a future-ready solution for residential and commercial solar systems.

Data Download

Product Advantage

With 98.6% peak efficiency, 20A MPPT input current, 150% PV oversizing, and 110% continuous AC output, it ensures outstanding energy harvest. Combined with IP66/C5 protection, AI-powered AFCI, and a 60% grid feed-in reduction via direct CT connection, it provides reliable and precise power control.

High Efficiency

98.6% ultra-high efficiency with SiC technology
Wide MPPT & low start-up voltage for more yield
Max. 20A input current per MPPT
150% PV oversizing & 110% continuous AC output

Assured Safety

AI-powered AFCI for ultimate safety (Optional)
Type II DC/AC surge protection for lightning safety
IP66 ingress protection and C5 corrosion resistance

Intelligent Design

Direct CT connection for superior response speed
60% less grid feed-in with CT, grid-friendly and worry-free
Unit-to-unit direct paralleling for seamless power control
Online I-V curve scanning for smart string fault diagnosis

Flexible Adaptability

Supports fuel-saving generator solutions
24/7 real-time monitoring via WiFi, LAN, or 4G

Product Parameters

MIC4T-S3
MIC5T-S3
MIC6T-S3
MIC8T-S3
MIC10T-S3
MIC12T-S3
MIC15T-S3

MIC4T-S3
- PV INPUT

  Max. recommended PV array power 6 kWp
  Operating voltage range 120 V - 1000 d.c. V
  No. of MPP trackers / strings per MPP tracker
  2 / (1 / 1)
  Max. input current per MPPT 20 d.c. A
- AC OUTPUT (ON-GRID)

  Rated AC voltage
  3 / N / PE, 220 / 380 V
  3 / N / PE, 230 / 400 V
  Rated AC frequency
  50 Hz / 60 Hz
- GENERAL

  Dimensions (W × H × D)
  384 x 427 x 178 mm
  Net weight
  12 kg
  Cooling concept
  Natural cooling
MIC5T-S3
- PV INPUT

  Max. recommended PV array power 7.5 kWp
  Operating voltage range 120 V - 1000 d.c. V
  No. of MPP trackers / strings per MPP tracker
  2 / (1 / 1)
  Max. input current per MPPT 20 d.c. A
- AC OUTPUT (ON-GRID)

  Rated AC voltage
  3 / N / PE, 220 / 380 V
  3 / N / PE, 230 / 400 V
  Rated AC frequency
  50 Hz / 60 Hz
- GENERAL

  Dimensions (W × H × D)
  384 x 427 x 178 mm
  Net weight
  12 kg
  Cooling concept
  Natural cooling
MIC6T-S3
- PV INPUT

  Max. recommended PV array power 9 kWp
  Operating voltage range 120 V - 1000 d.c. V
  No. of MPP trackers / strings per MPP tracker
  2 / (1 / 1)
  Max. input current per MPPT 20 d.c. A
- AC OUTPUT (ON-GRID)

  Rated AC voltage
  3 / N / PE, 220 / 380 V
  3 / N / PE, 230 / 400 V
  Rated AC frequency
  50 Hz / 60 Hz
- GENERAL

  Dimensions (W × H × D)
  384 x 427 x 178 mm
  Net weight
  12 kg
  Cooling concept
  Natural cooling
MIC8T-S3
- PV INPUT

  Max. recommended PV array power 12 kWp
  Operating voltage range 120 V - 1000 d.c. V
  No. of MPP trackers / strings per MPP tracker
  2 / (1 / 1)
  Max. input current per MPPT 20 d.c. A
- AC OUTPUT (ON-GRID)

  Rated AC voltage
  3 / N / PE, 220 / 380 V
  3 / N / PE, 230 / 400 V
  Rated AC frequency
  50 Hz / 60 Hz
- GENERAL

  Dimensions (W × H × D)
  384 x 427 x 178 mm
  Net weight
  12 kg
  Cooling concept
  Natural cooling
MIC10T-S3
- PV INPUT

  Max. recommended PV array power 15 kWp
  Operating voltage range 120 V - 1000 d.c. V
  No. of MPP trackers / strings per MPP tracker
  2 / (1 / 1)
  Max. input current per MPPT 20 d.c. A
- AC OUTPUT (ON-GRID)

  Rated AC voltage
  3 / N / PE, 220 / 380 V
  3 / N / PE, 230 / 400 V
  Rated AC frequency
  50 Hz / 60 Hz
- GENERAL

  Dimensions (W × H × D)
  384 x 427 x 178 mm
  Net weight
  12 kg
  Cooling concept
  Natural cooling
MIC12T-S3
- PV INPUT

  Max. recommended PV array power 18 kWp
  Operating voltage range 120 V - 1000 d.c. V
  No. of MPP trackers / strings per MPP tracker
  2 / (1 / 1)
  Max. input current per MPPT 20 d.c. A
- AC OUTPUT (ON-GRID)

  Rated AC voltage
  3 / N / PE, 220 / 380 V
  3 / N / PE, 230 / 400 V
  Rated AC frequency
  50 Hz / 60 Hz
- GENERAL

  Dimensions (W × H × D)
  384 x 427 x 178 mm
  Net weight
  12 kg
  Cooling concept
  Smart air cooling
MIC15T-S3
- PV INPUT

  Max. recommended PV array power 22.5 kWp
  Operating voltage range 120 V - 1000 d.c. V
  No. of MPP trackers / strings per MPP tracker
  2 / (1 / 1)
  Max. input current per MPPT 20 d.c. A
- AC OUTPUT (ON-GRID)

  Rated AC voltage
  3 / N / PE, 220 / 380 V
  3 / N / PE, 230 / 400 V
  Rated AC frequency
  50 Hz / 60 Hz
- GENERAL

  Dimensions (W × H × D)
  384 x 427 x 178 mm
  Net weight
  12 kg
  Cooling concept
  Smart air cooling
