Residential Batteries
LD16/LD14
-
16kWh / 14 kWh

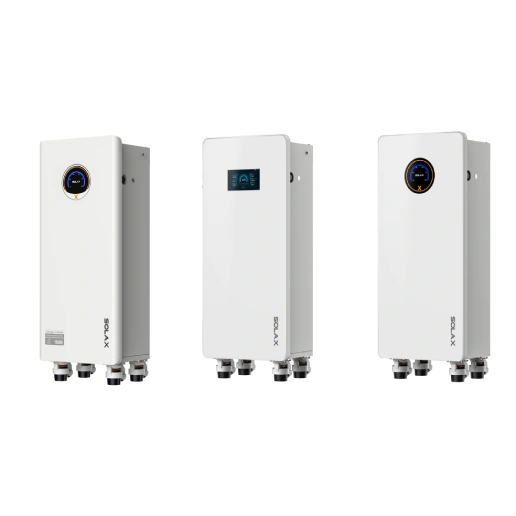

The LD16/LD14 low-voltage battery system features CTP architecture for higher space and energy density. Plug-and-play terminals and integrated wheels simplify installation and operation. LD16 is available in tempered glass and sheet metal versions, while LD14 uses a sheet metal design.
Product Advantage
LD16 supports up to 155 A / 200 A charge/discharge current and 32.1 kW peak output for 3 seconds, while LD14 delivers up to 140 A / 200 A and 28.6 kW. Aerosol fire suppression, a CO detector, and a feedback-type DC circuit breaker enhance system safety and reliability.
Assured Reliability
Aerosol fire suppression and CO detector for precise protection
Reliable feedback-type DC circuit breaker
High Performance
Max. 155 A / 200 A (LD16), 140 A / 200 A ( LD14) charge / discharge current
Peak output power 32.1 kW (LD16), 28.6 kW( LD14) for 3 s
Smart Management
Remote fault diagnosis, upgrade and maintenance
Rugged lP65 design with optional battery heating (Optional)①
Flexible Adaptability
CTP(Cell-to-Pack)design maximizes space and energy density for superior performance
Plug-and-Play terminals design
Wheel design enables more convenient installation
Product Parameters
-
LD16-
BATTERY MODULE
Battery model LD16-ME Battery type LFP Scalability Max. 16 pcs in parallel Nominal energy 16 kWh -
GENERAL
Dimensions (W x H x D) 406 x 1008 x 281 mm Net weight 120.0 (± 1) kg -
ENVIRONMENT LIMIT
Ingress protection IP65 Cooling concept Natural cooling Environment Outdoor / Indoor
-
-
LD14
-
BATTERY MODULE
Battery model LD14-ME Battery type LFP Scalability Max. 16 pcs in parallel Nominal energy 14.3 kWh -
GENERAL
Dimensions (W x H x D) 406 x 1008 x 281 mm Net weight 120.0 (± 1) kg -
ENVIRONMENT LIMIT
Ingress protection IP65 Cooling concept Natural cooling Environment Outdoor / Indoor
-
