Utility ESS
ORI 418kWh
-
418kWh | Liquid Cooling

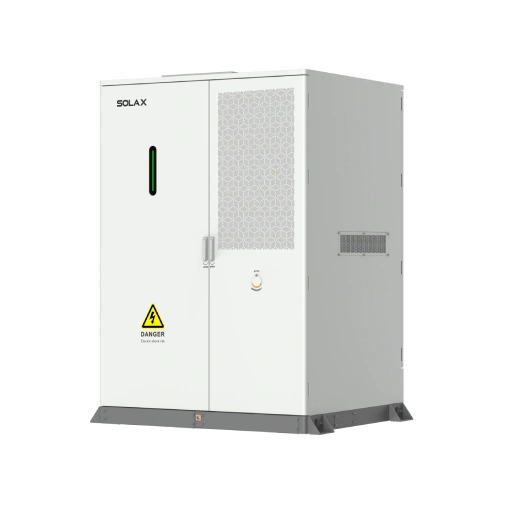

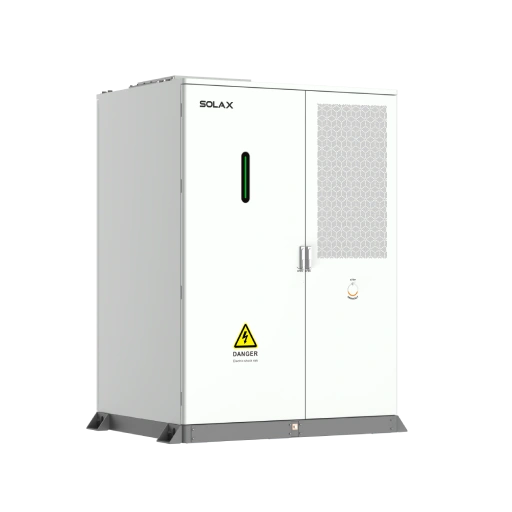

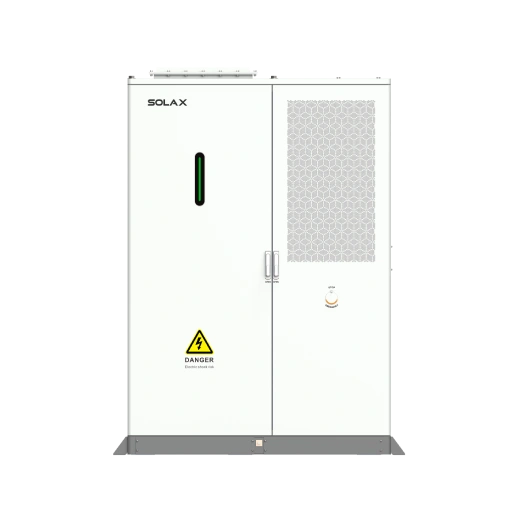

The ESS-ORI 215kW/418kWh AC-Coupled ESS Liquid Cooling Cabinet features an all-in-one, factory pre-assembled design for fast, plug-and-play deployment. Its compact side-by-side configuration supports flexible installation and seamless capacity expansion, while the built-in auxiliary transformer minimizes additional wiring and simplifies on-site integration.
Maximize your energy yield with the ESS-ORI’s advanced Stable and Efficient architecture, boasting a Round Trip Efficiency (RTE) of up to 90%. Real-time cell monitoring, multi-level overcurrent protection, and redundant fire safety enhance operational security, while SolaXCloud integration enables intelligent O&M and returns up to 12% higher.
All In One
All-in-one design, factory pre-assembled and pre-commissioned
Plug-and-play design for fast on-site deployment
Side-by-side installation, flexible layout and capacity expansion
Built-in auxiliary transformer, no additional wiring required
Assured Safety
Real-time cell monitoring, 7-day early short-circuit warning
PACK, Cluster, PCS, and AC-side 4-level overcurrent protection
Multi-layer redundant fire safety design for ultimate thermal safety
Stable and Efficient
Fully self-developed 3S (BMS, EMS & PCS) for seamless & stable operation
High-efficiency system with RTE up to 90%
Smart liquid cooling & AI-driven BMS extend lifespan by up to 2 years
Suitable for 690V AC wind-solar-storage and power plant energy storage applications
Smart O&M
Integrated with SolaXCloud, adaptive strategies for up to 12% higher returns
Unmanned site management with one-click upgrades to reduce O&M costs
Product Parameters
-
ORI418-2A-
AC INPUT & OUTPUT (ON-GRID)
Rated output power 215kW Rated AC voltage 3P / 3W,690 a.c. V AC voltage range 586 – 759 a.c. V -
DC SIDE
Battery type LFP / 314 Ah Nominal energy 418 kWh -
GENERAL
Ingress protection IP55 Dimensions (W × H × D) 1680x2470x1400 mm Weight 4200 kg
-
