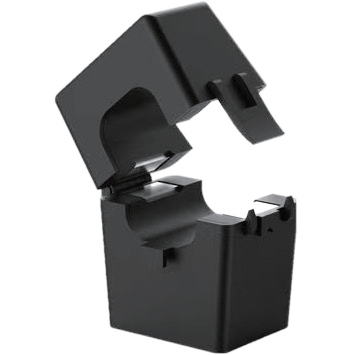

Current Transformer

Accessories for SolaX Meter

The SolaX Current Transformer supports a primary current range from 100A to 600A with a 40mA secondary output, ensuring accurate current measurement. For best compatibility and performance, the SolaX M1-40 Meter is recommended to use a 100A / 40mA CT.

Data Download

Product Advantage

With a safe and reliable design, this CT provides stable current sensing for energy monitoring applications. The split-core structure reduces installation time, while wide current adaptability makes it suitable for various systems.

General

Split-Core, easy installation
Primary input 100A~600A
Secondary output 40mA
Safe operation

Product Parameters

100A/40mA
100A/40mA (3in1)
200A/40mA (3in1)
400A/40mA (3in1)
600A/40mA (3in1)

100A/40mA
- GENERAL

  Adaptation model
  M1-40
  Frequency
  50 / 60 Hz
  Rated current
  100 A
  Transformation ratio
  2500 : 1
  Installation
  Split-Core
  Altitude
  ≤ 4000 m
  Certification
  CE, UL, RoHS, REACH
100A/40mA (3in1)
- GENERAL

  Adaptation model
  M3-40 / M3-40-Dual / XHub
  Frequency
  50 / 60 Hz
  Rated current
  100 A
  Transformation ratio
  2500 : 1
  Installation
  Split-Core
  Altitude
  ≤ 4000 m
  Certification
  CE, UL, RoHS, REACH
200A/40mA (3in1)
- GENERAL

  Adaptation model
  M3-40 / M3-40-Dual / XHub
  Frequency
  50 / 60 Hz
  Rated current
  200 A
  Transformation ratio
  5000 : 1
  Installation
  Split-Core
  Altitude
  ≤ 4000 m
  Certification
  CE, UL, RoHS, REACH
400A/40mA (3in1)
- GENERAL

  Adaptation model
  M3-40 / M3-40-Dual / XHub
  Frequency
  50 / 60 Hz
  Rated current
  400 A
  Transformation ratio
  10000 : 1
  Installation
  Split-Core
  Altitude
  ≤ 4000 m
  Certification
  CE, UL, RoHS, REACH
600A/40mA (3in1)
- GENERAL

  Adaptation model
  M3-40 / M3-40-Dual / XHub
  Frequency
  50 / 60 Hz
  Rated current
  600 A
  Transformation ratio
  15000 : 1
  Installation
  Split-Core
  Altitude
  ≤ 4000 m
  Certification
  CE, UL, RoHS, REACH
