Residential Batteries

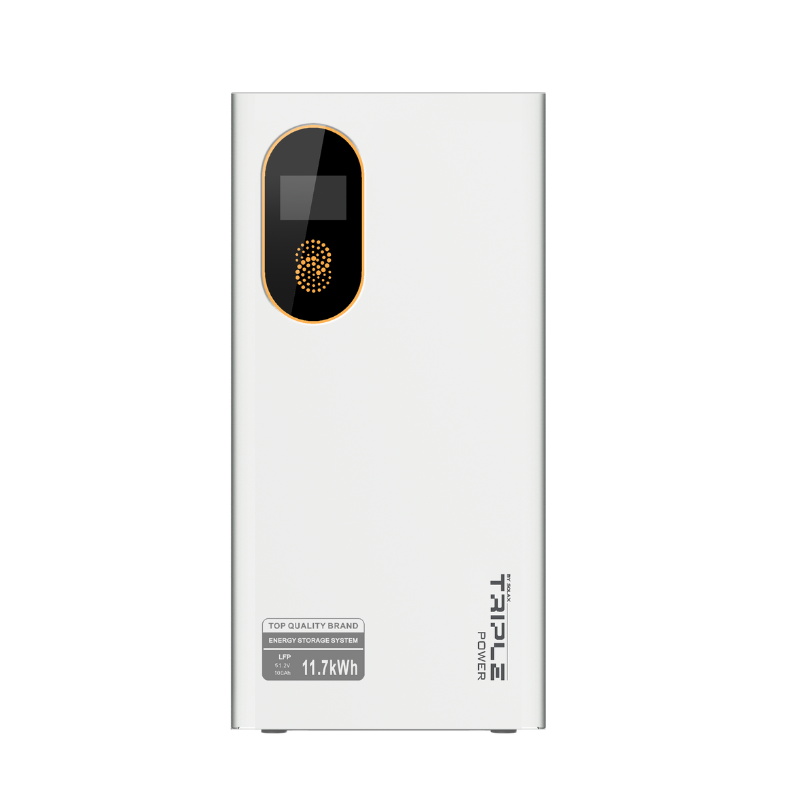

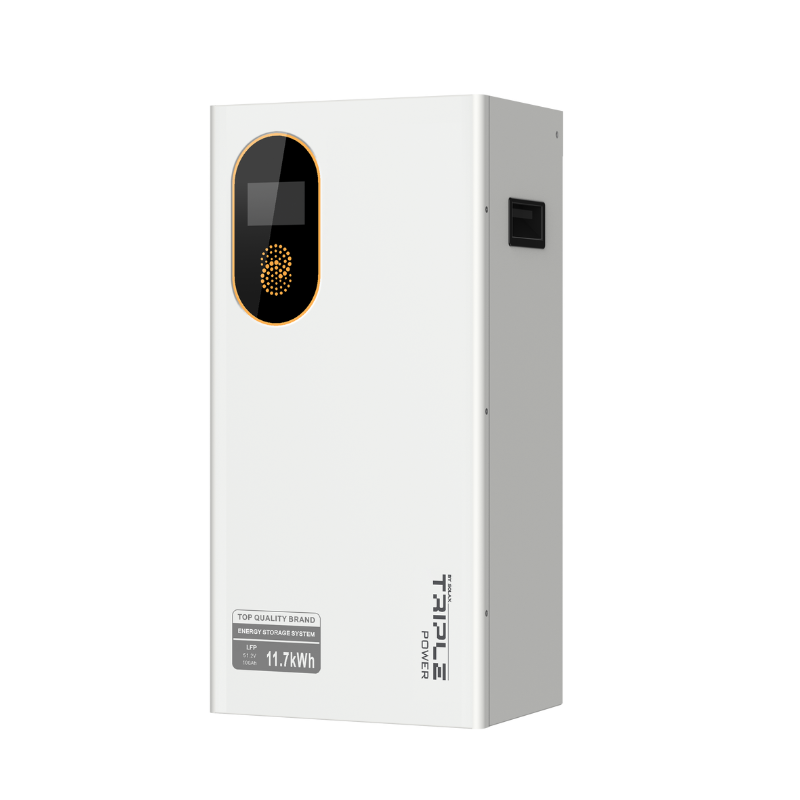

TSYS-LD117
-
11.7 kWh
This energy storage system offers a comprehensive solution with a wide capacity range of 11.7 to 187.2 kWh and high charge/discharge currents of up to 250 A. It is engineered for longevity, supporting over 6000 cycles, and features smart management capabilities including remote diagnostics and an intuitive LCD touchscreen. The system ensures reliability through its IP40 protection, robust LFP battery cells, and integrated aerosol fire suppression. Additionally, it provides flexible scalability by supporting parallel expansion of up to 16 units and utilizes a compact CTP design to optimize space and energy density.
Product Advantage
Distinguished by its high performance and extended cycle life, this system delivers superior reliability and adaptability. It enables significant expansion potential and maximizes energy efficiency through advanced CTP technology. User-friendly smart management—including remote maintenance and a wide operating temperature range—ensures effortless operation, while built-in safety features such as fire suppression and high-grade protection offer peace of mind for diverse applications.
High Performance
11.7 ~ 187.2 kWh wide capacity range
Max. 230 A / 250 A charge / discharge current
Cycle life > 6000 cycles
Smart Management
Remote fault diagnosis, upgrade and maintenance
Wide temperature tolerance
User-friendly LCD touchscreen for intuitive and easy interaction
Assured Reliability
IP40 ingress protection
LFP battery cell & high-performance processors
Aerosol fire suppression for precise protection
Flexible Adaptability
Expandable to 16 units in parallel
CTP (Cell-to-Pack) design maximizes space and energy density for superior performance
Product Parameters
-
TSYS-LD117-
GENERAL INFORMATION
Battery type LFP Scalability Max. 16 pcs in parallel Nominal energy 11.7 kWh Rated power 5.8 kW Max. charge / discharge current 230 A / 250 A Depth of discharge 95% Dimensions (W x H x D) 355 x 726 x 263 mm Net weight 88 kg -
ENVIRONMENTAL REQUIREMENTS
Cooling concept Natural cooling Max. operating altitude 3000 m Installation type Wall mounting / floor mounting Ingress protection IP40
-
Data Download
-
Datasheet
-
File nameLanguageFormatSizeLast updateddownload
