Battery

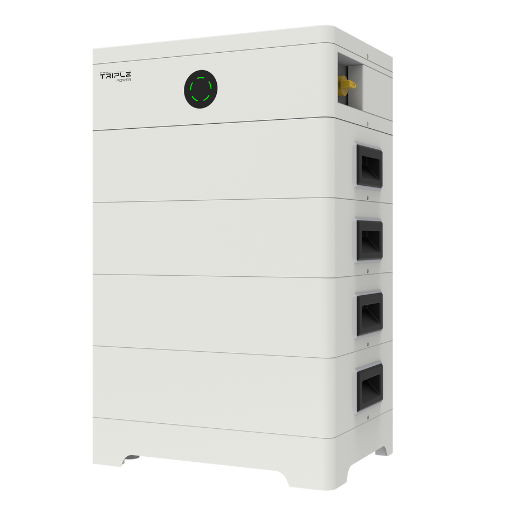

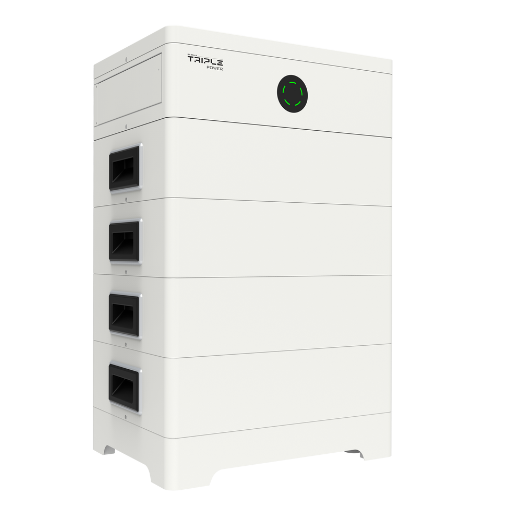

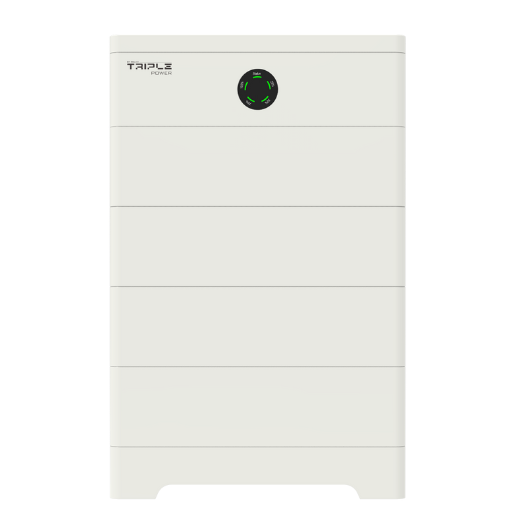

T-BAT-SYS-HV-S2.5

5.1 kWh-33.2 kWh

Equipped with a LFP battery and high-performance processors, it offers a wide capacity range from 5.1 kWh to 33.2 kWh. The T-BAT-SYS-HV-S2.5 features a maximum charging/discharging current of 50A, and IP65 protection for secure operation.

Watch Video
Data Download

Product Advantage

It offers a reliable energy solution with easy modular installation, and versatility for on-grid, off-grid, and backup applications. Powered by a safe lithium phosphate battery, it ensures long-lasting performance, making it ideal for various energy needs.

Flexible Adaptability

Extendable capacity for lifetime use
Stackable modules, plug and play design

High Performance

5.1-33.2 kWh wide capacity range
Max. 50A charging/discharging current
Cycle life > 6000 times

Assured Reliability

LiFePO4 battery cell & high-performance processors
IP65 protection degree
Soft start to protect from a sudden surge

Smart Management

Remote fault diagnosis, upgrade and maintenance
Unique battery heating tech for low-temperature operation
Optional parallel connection using a two-in-one cable for easy capacity expansion and extend battery lifespan

Product Parameters

T-BAT HS32.5
T-BAT HS30.0
T-BAT HS27.5
T-BAT HS25.0
T-BAT HS22.5
T-BAT HS20.0
T-BAT HS17.5
T-BAT HS15.0
T-BAT HS12.5
T-BAT HS10.0
T-BAT HS7.5
T-BAT HS5.0

T-BAT HS32.5
- SYSTEM DATA

  Number of modules 13 Modules
  Rated energy 33.28 kWh
  Rated voltage 665.6 V
  Max. charge/discharge current
  50A
- GENERAL

  Battery module 2.5 kWh
  Dimensions (W x H x D) 510x157x365 mm
  Net weight 13 kg
  Battery type LFP
  Ingress protection IP65
T-BAT HS30.0
- SYSTEM DATA

  Number of modules 12 Modules
  Rated energy 30.72 kWh
  Rated voltage 614.4 V
  Max. charge/discharge current
  50A
- GENERAL

  Battery module 2.5 kWh
  Dimensions (W x H x D) 510x157x365 mm
  Net weight 13 kg
  Battery type LFP
  Ingress protection IP65
T-BAT HS27.5
- SYSTEM DATA

  Number of modules 11 Modules
  Rated energy 28.16 kWh
  Rated voltage 563.2 V
  Max. charge/discharge current
  50A
- GENERAL

  Battery module 2.5 kWh
  Dimensions (W x H x D) 510x157x365 mm
  Net weight 13 kg
  Battery type LFP
  Ingress protection IP65
T-BAT HS25.0
- SYSTEM DATA

  Number of modules 10 Modules
  Rated energy 25.60 kWh
  Rated voltage 512.0 V
  Max. charge/discharge current
  50A
- GENERAL

  Battery module 2.5 kWh
  Dimensions (W x H x D) 510x157x365 mm
  Net weight 13 kg
  Battery type LFP
  Ingress protection IP65
T-BAT HS22.5
- SYSTEM DATA

  Number of modules 9 Modules
  Rated energy 23.04 kWh
  Rated voltage 460.8 V
  Max. charge/discharge current
  50A
- GENERAL

  Battery module 2.5 kWh
  Dimensions (W x H x D) 510x157x365 mm
  Net weight 13 kg
  Battery type LFP
  Ingress protection IP65
T-BAT HS20.0
- SYSTEM DATA

  Number of modules 8 Modules
  Rated energy 20.48 kWh
  Rated voltage 409.6 V
  Max. charge/discharge current
  50A
- GENERAL

  Battery module 2.5 kWh
  Dimensions (W x H x D) 510x157x365 mm
  Net weight 13 kg
  Battery type LFP
  Ingress protection IP65
T-BAT HS17.5
- SYSTEM DATA

  Number of modules 7 Modules
  Rated energy 17.92 kWh
  Rated voltage 358.4 V
  Max. charge/discharge current
  50A
- GENERAL

  Battery module 2.5 kWh
  Dimensions (W x H x D) 510x157x365 mm
  Net weight 13 kg
  Battery type LFP
  Ingress protection IP65
T-BAT HS15.0
- SYSTEM DATA

  Number of modules 6 Modules
  Rated energy 15.36 kWh
  Rated voltage 307.2 V
  Max. charge/discharge current
  50A
- GENERAL

  Battery module 2.5 kWh
  Dimensions (W x H x D) 510x157x365 mm
  Net weight 13 kg
  Battery type LFP
  Ingress protection IP65
T-BAT HS12.5
- SYSTEM DATA

  Number of modules 5 Modules
  Rated energy 12.80 kWh
  Rated voltage 256.0 V
  Max. charge/discharge current
  50A
- GENERAL

  Battery module 2.5 kWh
  Dimensions (W x H x D) 510x157x365 mm
  Net weight 13 kg
  Battery type LFP
  Ingress protection IP65
T-BAT HS10.0
- SYSTEM DATA

  Number of modules 4 Modules
  Rated energy 10.24 kWh
  Rated voltage 204.8 V
  Max. charge/discharge current
  50A
- GENERAL

  Battery module 2.5 kWh
  Dimensions (W x H x D) 510x157x365 mm
  Net weight 13 kg
  Battery type LFP
  Ingress protection IP65
T-BAT HS7.5
- SYSTEM DATA

  Number of modules 3 Modules
  Rated energy 7.68 kWh
  Rated voltage 153.6 V
  Max. charge/discharge current
  50A
- GENERAL

  Battery module 2.5 kWh
  Dimensions (W x H x D) 510x157x365 mm
  Net weight 13 kg
  Battery type LFP
  Ingress protection IP65
T-BAT HS5.0
- SYSTEM DATA

  Number of modules 2 Modules
  Rated energy 5.12 kWh
  Rated voltage 102.4 V
  Max. charge/discharge current
  50A
- GENERAL

  Battery module 2.5 kWh
  Dimensions (W x H x D) 510x157x365 mm
  Net weight 13 kg
  Battery type LFP
  Ingress protection IP65
