ESS Accrssories
A1-BI-Pro
-
A1-BI-200-PRO

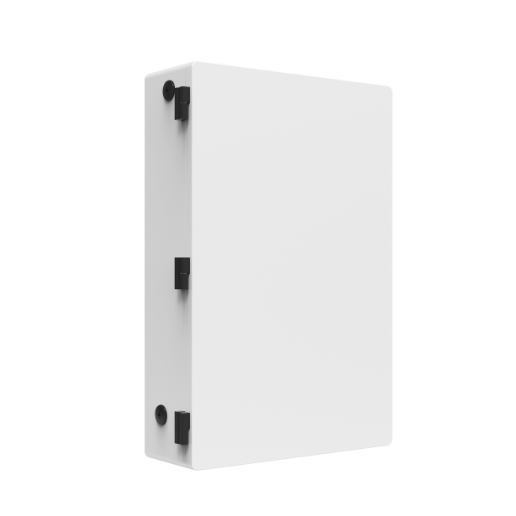

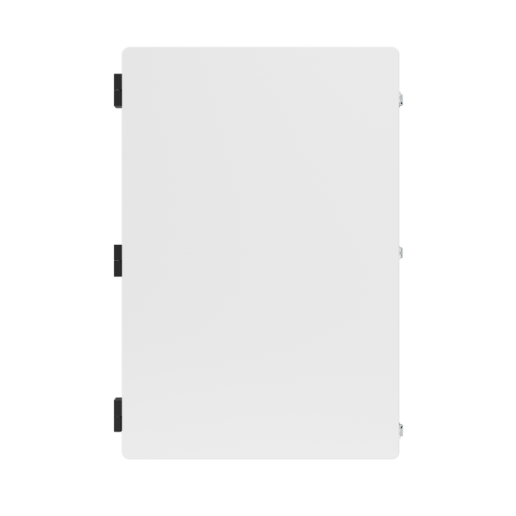

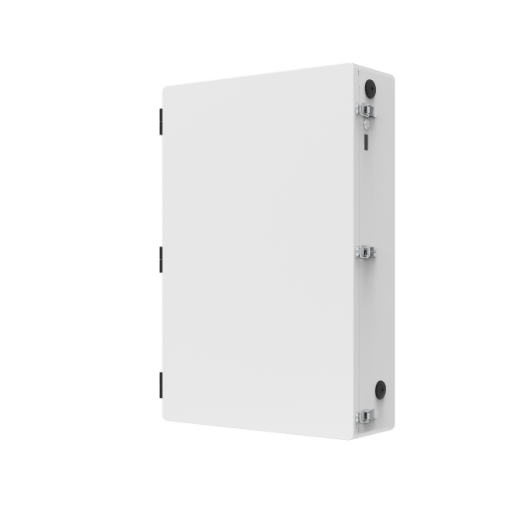

The AI-BI-Pro-200 is a high-capacity backup interface built for smart energy systems. It supports up to 4 inverters, 24kW generator input.
-
Watch Video
Product Advantage
With our reliable Backup Interface (BI), you can maintain control over your energy even during grid interruptions. Ensure uninterrupted smart energy management with seamless parallel operation and system expansion.
High Power & Scalability
High power capacity with 24,000W and 160A continuous input/output
Supports up to 4 inverters and optional solar integration
Smart Operation
Smart load management for efficient 120V/240V operation
Durability & Protection
Durable with wide temperature range and NEMA 3R protection
Monitoring & Interface
Easy monitoring with LED display and RS485 ports
Product Parameters
-
A1-BI-Pro-200-
GENERAL
Maximum Supply Short Circuit Current [kA] 22 Number of dry contact 4 Number of communication RS485 ports 4 LED display 3 Weight [lbs / kg] 100.3 / 45.5 Operating temperature range [°F / °C] -4 to +113 / -20 to +45 Protection rating NEMA 3R Dimensions [H x W x D] [in / mm] 32 x 22 x 7.3 / 813 x 559 x 185 -
STANDARD COMPLIANCE
Safety UL1741, CSA 22.2 NO.107, IEC62109-1, CSA C22.2 No.29, CSA22.2 205, CSA 22.2 0.19 Emissions FCC part 15 Class B
-
