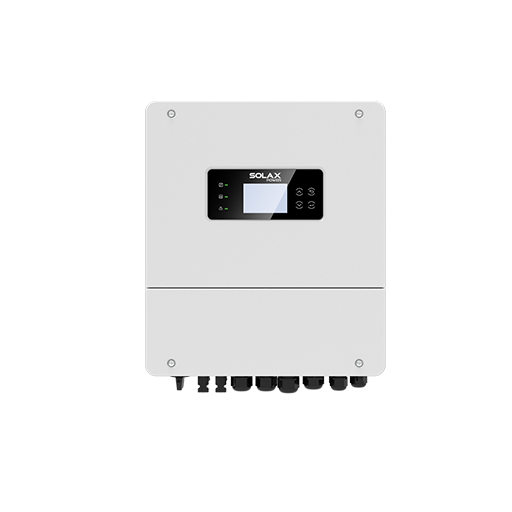

3.0kW / 3.7kW / 4.0kW
4.6kW / 5.0kW / 6.0kW
Flexible Adaptability
Max. 3pcs parallel for on-grid and off-grid*
Microgrid and generator function for versatile operations*
Max. 16A DC input current for high-power solar panel
Smart Management
Single unit UPS-level switchover time < 4 ms
Global MPP scan for optimal energy harvest
Smart loads management
CT compatibility with fast load response in just 0.3 seconds
High Performance
200% PV oversizing and up to 110% AC output
200% peak EPS power for 10 s
Max. 120A charging / discharging current
Low start-up voltage for longer operation
Assured Reliability
Battery terminal temperature detection
IP65 protection degree
Type II SPD on AC&DC side
Optional AFCI protection*
| Model | X1-HYB-3.0-LV |
| Max. recommended PV array power (Wp) | 6000 |
| Max. PV input voltage (V) | 550 |
| Nominal PV input voltage (V) | 360 |
| MPPT voltage range (V) | 80 ~ 520 |
| Start-up voltage (V) | 110 |
| No. of MPP trackers / Strings per MPP tracker | 2/(1/1) |
| Max. input current per MPPT (A) | 16/16 |
| Max. input short circuit current per MPPT (A) | 20/20 |
| Rated output power (W) | 3000 |
| Max. output apparent power (VA) | 3300 |
| Max. output continuous current (A) | 15 |
| Nominal AC voltage (V) | 1/N/PE, 220/230/240 |
| Max. AC input apparent power (VA) | 6000 |
| Max. AC input current (A) | 26.1 |
| Nominal AC frequency (Hz) | 50 / 60 |
| Adjustable Power Factor range | ~1 (0.8 lagging to 0.8 leading) |
| THDi (rated power) | <2% |
| Model | X1-HYB-3.7-LV |
| Max. recommended PV array power (Wp) | 7360 |
| Max. PV input voltage (V) | 550 |
| Nominal PV input voltage (V) | 360 |
| MPPT voltage range (V) | 80 ~ 520 |
| Start-up voltage (V) | 110 |
| No. of MPP trackers / Strings per MPP tracker | 2/(1/1) |
| Max. input current per MPPT (A) | 16/16 |
| Max. input short circuit current per MPPT (A) | 20/20 |
| Rated output power (W) | 3680 |
| Max. output apparent power (VA) | 3680 |
| Max. output continuous current (A) | 16 |
| Nominal AC voltage (V) | 1/N/PE, 220/230/240 |
| Max. AC input apparent power (VA) | 7360 |
| Max. AC input current (A) | 32 |
| Nominal AC frequency (Hz) | 50 / 60 |
| Adjustable Power Factor range | ~1 (0.8 lagging to 0.8 leading) |
| THDi (rated power) | <2% |
| Model | X1-HYB-4.0-LV |
| Max. recommended PV array power (Wp) | 8000 |
| Max. PV input voltage (V) | 550 |
| Nominal PV input voltage (V) | 360 |
| MPPT voltage range (V) | 80 ~ 520 |
| Start-up voltage (V) | 110 |
| No. of MPP trackers / Strings per MPP tracker | 2/(1/1) |
| Max. input current per MPPT (A) | 16/16 |
| Max. input short circuit current per MPPT (A) | 20/20 |
| Rated output power (W) | 4000 |
| Max. output apparent power (VA) | 4400 |
| Max. output continuous current (A) | 20 |
| Nominal AC voltage (V) | 1/N/PE, 220/230/240 |
| Max. AC input apparent power (VA) | 8000 |
| Max. AC input current (A) | 34.8 |
| Nominal AC frequency (Hz) | 50 / 60 |
| Adjustable Power Factor range | ~1 (0.8 lagging to 0.8 leading) |
| THDi (rated power) | <2% |
| Model | X1-HYB-5.0-LV |
| Max. recommended PV array power (Wp) | 10000 |
| Max. PV input voltage (V) | 550 |
| Nominal PV input voltage (V) | 360 |
| MPPT voltage range (V) | 80 ~ 520 |
| Start-up voltage (V) | 110 |
| No. of MPP trackers / Strings per MPP tracker | 2/(1/1) |
| Max. input current per MPPT (A) | 16/16 |
| Max. input short circuit current per MPPT (A) | 20/20 |
| Rated output power (W) | 5000 |
| Max. output apparent power (VA) | 5000 |
| Max. output continuous current (A) | 22.7 |
| Nominal AC voltage (V) | 1/N/PE, 220/230/240 |
| Max. AC input apparent power (VA) | 9200 |
| Max. AC input current (A) | 40 |
| Nominal AC frequency (Hz) | 50 / 60 |
| Adjustable Power Factor range | ~1 (0.8 lagging to 0.8 leading) |
| THDi (rated power) | <2% |
| Model | X1-HYB-6.0-LV |
| Max. recommended PV array power (Wp) | 12000 |
| Max. PV input voltage (V) | 550 |
| Nominal PV input voltage (V) | 360 |
| MPPT voltage range (V) | 80 ~ 520 |
| Start-up voltage (V) | 110 |
| No. of MPP trackers / Strings per MPP tracker | 2/(1/1) |
| Max. input current per MPPT (A) | 16/16 |
| Max. input short circuit current per MPPT (A) | 20/20 |
| Rated output power (W) | 6000 |
| Max. output apparent power (VA) | 6000 |
| Max. output continuous current (A) | 27.3 |
| Nominal AC voltage (V) | 1/N/PE, 220/230/240 |
| Max. AC input apparent power (VA) | 12000 |
| Max. AC input current (A) | 40.0 A |
| Nominal AC frequency (Hz) | 50 / 60 |
| Adjustable Power Factor range | ~1 (0.8 lagging to 0.8 leading) |
| THDi (rated power) | <2% |
