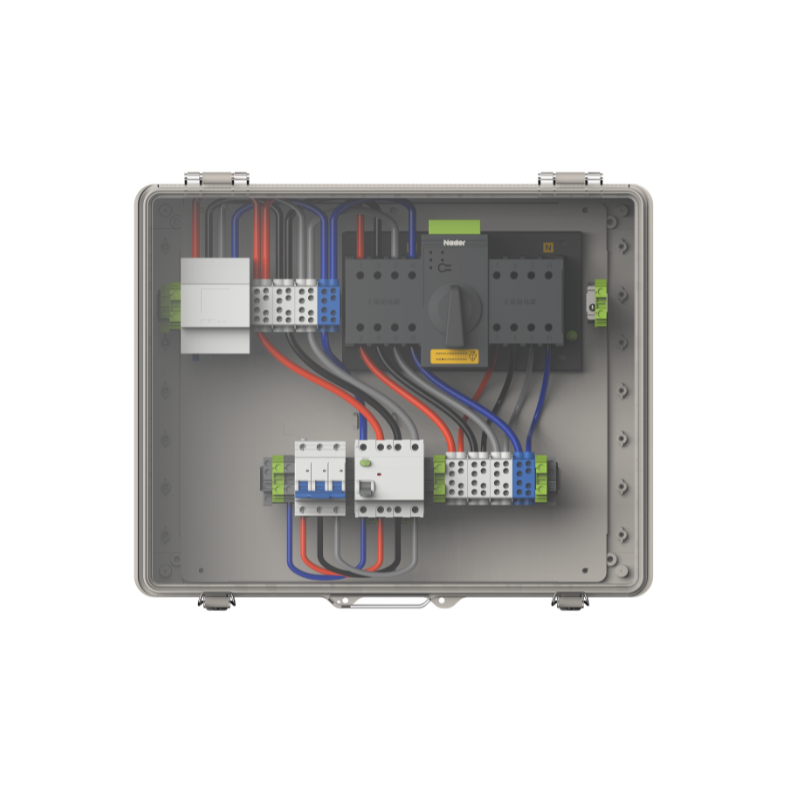

X3-EPS BOX G2
Connects to on-grid inverters (24A), off-grid inverters (24A), utility grid (63A input/25A output), and loads (63A). It contains three 25A components and works at altitudes up to 3000m. Suitable for environments with 4-100% humidity, it meets diverse power distribution needs.
Product Advantage
The X3-EPS BOX G2 supports 220/230/240V voltage and 50/60Hz frequency. It provides 16,500VA max output power and 63A max current. With IP54 protection, Class I safety, and operation from -35°C to 60°C, it ensures reliable performance. The compact unit (12.5kg) switches power in ≤1.8 seconds.
Wide Compatibility
Supports 220/230/240V AC voltage
Dual frequency operation (50/60Hz)
16,500VA max output power
Product Parameters
-
AC Switching Cabinet-
GENERAL SPECIFICATION
Operating temperature range 35~60°C (＞ 45°C derating) Altitude <3000m Dimensions (W × H × D) 540 × 430 × 202 mm Weight 12.5 kg Ingress protection IP54 -
ON-GRID(Inverter)
Rated AC voltage 35~60°C (＞ 45°C derating) Rated AC frequency 50 / 60 Hz Max output apparent power 16500 VA Max output current 24 A -
OFF-GRID(Inverter)
Rated output voltage 230 VA Rated AC frequency 50 / 60 Hz Max output apparent power 16500 VA Max output current 24 A -
GRID(Utility)
Rated grid voltage 220 / 230 / 240 V Rated AC frequency 50 / 60 Hz Max input current 63 A Max output current 25 A
-
