Microinverters

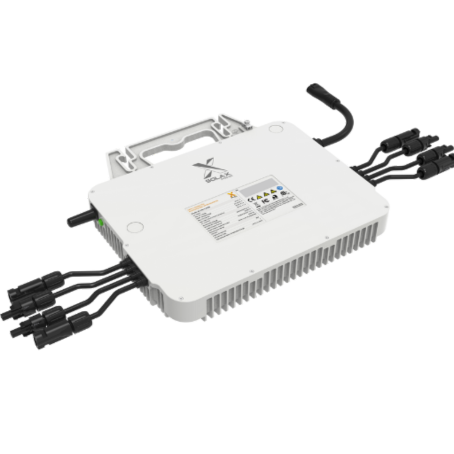

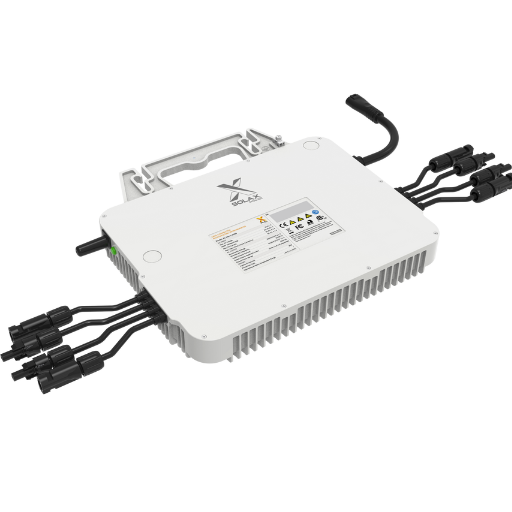

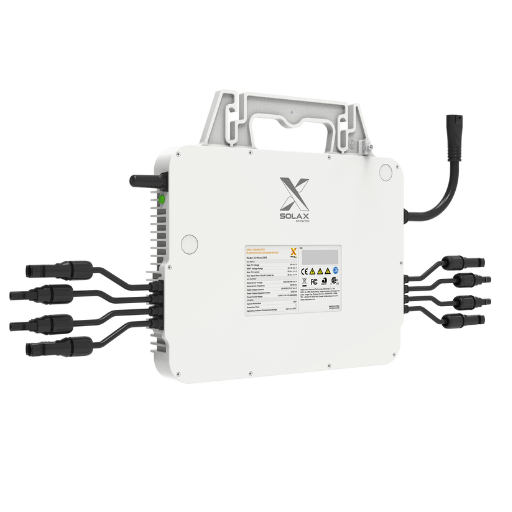

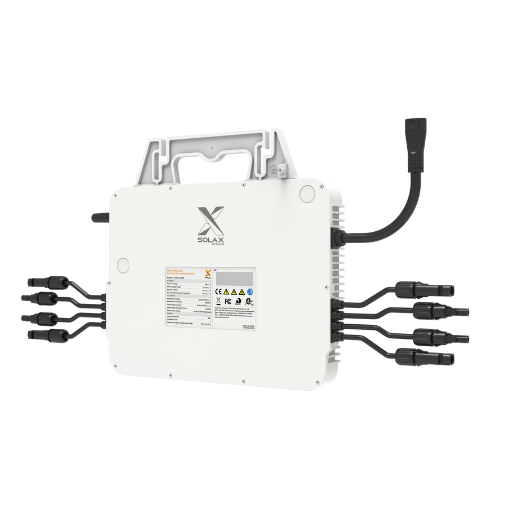

X1-Micro 4 in 1

1300 W / 1500 W / 1600 W / 1800 W 2000 W / 2200 W / 2400 W

The SolaX X1-Micro 4 in 1 microinverter features a compact, lightweight design with four independent MPPT channels, making it ideal for high-density solar installations. Engineered to support both current and legacy high power PV modules, this model offers seamless installation, integrated industrial-grade WiFi, and reactive power control.

Watch Video
Data Download

Product Advantage

With a maximum output of 2400VA and up to 19.5A DC input current, the X1-Micro 4 in 1 microinverter delivers industry-leading energy conversion performance. Its advanced 4 MPPT channels ensure superior power optimization across multiple panel orientations.

High Efficiency

Max. 2400VA output power
Max. 19.5A DC input current
Four MPPT channels

Assured Safety

Rapid Shutdown function
Safety protection relay integrated
IP67 ingress protection

Intelligent Design

Reactive power control
Built-in industrial grade WiFi module
Easy to install and maintain

Flexible Adaptability

Easy and flexible expansion of system capacity
upport AC coupling solution
Support 1-phase microinverter integration into 3-phase power grid

Product Parameters

X1-Micro 1300
X1-Micro 1500
X1-Micro 1600
X1-Micro 1800
X1-Micro 2000
X1-Micro 2200
X1-Micro 2400

X1-Micro 1300
- DC INPUT

  Commonly used module power per input 300~ 505+ W
  MPPT voltage range 22 ~ 60 V
  Number of MPP. trackers/strings per MPPT 4 / 1
- AC OUTPUT

  Rated AC output power 1300 VA
- EFFICIENCY

  Peak efficiency 96.50%
  Nominal MPPT efficiency 99.90%
- GENERAL

  Ingress protection rating IP67
  Dimensions (W /H / D) 322x242x48.5 mm
  Weight 6.2 kg
  Cooling Concept Natural cooling
X1-Micro 1500
- DC INPUT

  Commonly used module power per input 320~540+ W
  MPPT voltage range 22 ~ 60 V
  Number of MPP. trackers/strings per MPPT 4 / 1
- AC OUTPUT

  Rated AC output power 1500 VA
- EFFICIENCY

  Peak efficiency 96.50%
  Nominal MPPT efficiency 99.90%
- GENERAL

  Ingress protection rating IP67
  Dimensions (W /H / D) 322x242x48.5 mm
  Weight 6.2 kg
  Cooling Concept Natural cooling
X1-Micro 1600
- DC INPUT

  Commonly used module power per input 360~600+W
  MPPT voltage range 22 ~ 60 V
  Number of MPP. trackers/strings per MPPT 4 / 1
- AC OUTPUT

  Rated AC output power 1600 VA
- EFFICIENCY

  Peak efficiency 96.50%
  Nominal MPPT efficiency 99.90%
- GENERAL

  Ingress protection rating IP67
  Dimensions (W /H / D) 322x242x48.5 mm
  Weight 6.2 kg
  Cooling Concept Natural cooling
X1-Micro 1800
- DC INPUT

  Commonly used module power per input 400~600+W
  MPPT voltage range 22 ~ 60 V
  Number of MPP. trackers/strings per MPPT 4 / 1
- AC OUTPUT

  Rated AC output power 1800 VA
- EFFICIENCY

  Peak efficiency 96.50%
  Nominal MPPT efficiency 99.90%
- GENERAL

  Ingress protection rating IP67
  Dimensions (W /H / D) 322x242x48.5 mm
  Weight 6.2 kg
  Cooling Concept Natural cooling
X1-Micro 2000
- DC INPUT

  Commonly used module power per input 400~670+ W
  MPPT voltage range 22 ~ 60 V
  Number of MPP. trackers/strings per MPPT 4 / 1
- AC OUTPUT

  Rated AC output power 2000 VA
- EFFICIENCY

  Peak efficiency 96.50%
  Nominal MPPT efficiency 99.90%
- GENERAL

  Ingress protection rating IP67
  Dimensions (W /H / D) 322x242x48.5 mm
  Weight 6.2 kg
  Cooling Concept Natural cooling
X1-Micro 2200
- DC INPUT

  Commonly used module power per input 450 ~700+W
  MPPT voltage range 22 ~ 60 V
  Number of MPP. trackers/strings per MPPT 4 / 1
- AC OUTPUT

  Rated AC output power 2200 VA
- EFFICIENCY

  Peak efficiency 96.50%
  Nominal MPPT efficiency 99.90%
- GENERAL

  Ingress protection rating IP67
  Dimensions (W /H / D) 322x242x48.5 mm
  Weight 6.2 kg
  Cooling Concept Natural cooling
X1-Micro 2400
- DC INPUT

  Commonly used module power per input 500~750+W
  MPPT voltage range 22 ~ 60 V
  Number of MPP. trackers/strings per MPPT 4 / 1
- AC OUTPUT

  Rated AC output power 2400 VA
- EFFICIENCY

  Peak efficiency 96.50%
  Nominal MPPT efficiency 99.90%
- GENERAL

  Ingress protection rating IP67
  Dimensions (W /H / D) 322x242x48.5 mm
  Weight 6.2 kg
  Cooling Concept Natural cooling
