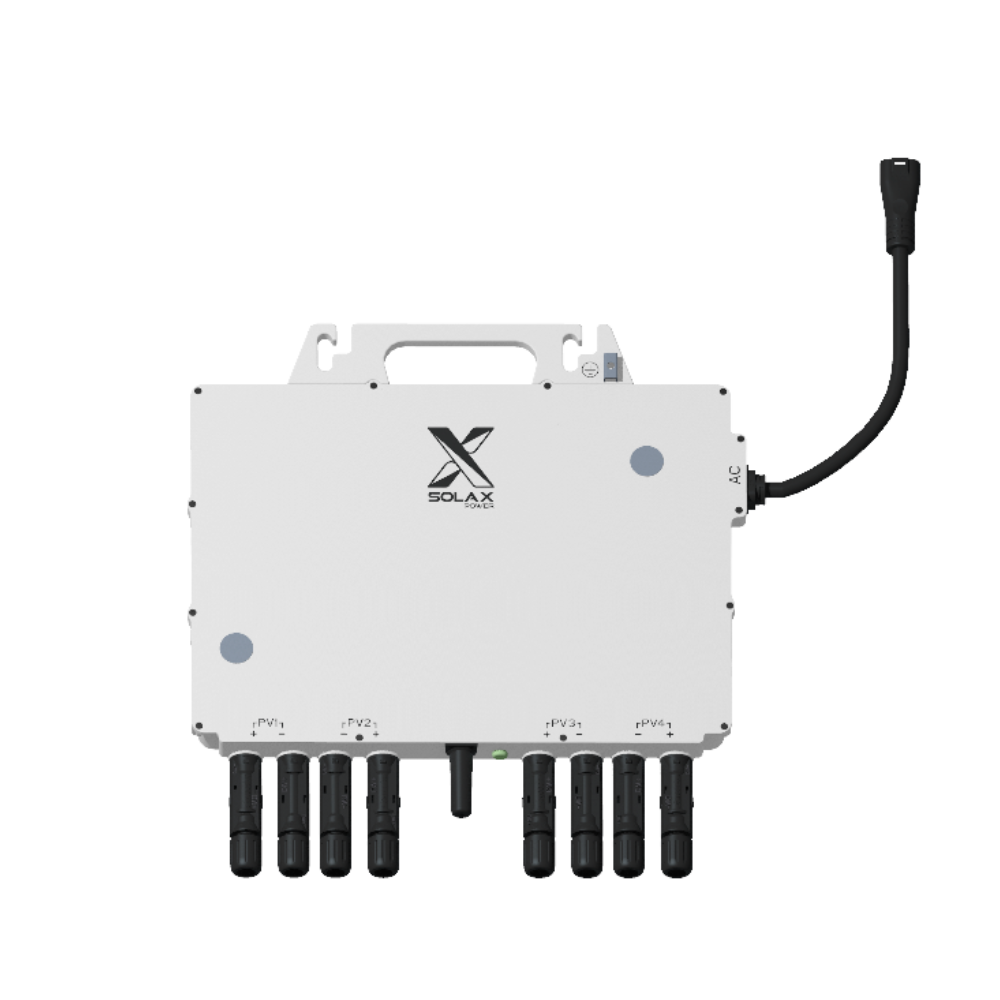

Microinverter
X1-Micro 4 in 1 G2
-
1875 W / 2000 W / 2250 W / 2400 W
This microinverter features a plug-and-play structure with built-in WiFi/PLC communication for seamless integration. Its four MPPT channels enable module-level control, while reactive power regulation and zero export functionality ensure compliance with diverse grid requirements.
Product Advantage
Delivering up to 2400 VA output power and 18 A DC input current, this inverter achieves peak efficiency of up to 97% across a wide operating temperature range from -40°C to 75°C. Ideal for maximizing energy yield while minimizing maintenance.
Assured Safety
Rapid shutdown function
Safety protection relay integrated
IP67 ingress protection
Flexible Adaptability
Plug and play
Supporting AC coupling solution
Supporting 1-phase microinverter integration into 3-phase power grids
High Efficiency
Max. 2400 VA output power
Max. 18 A DC input current
Four MPPT channels
Max. efficiency up to 97%
Intelligent Design
Reactive power regulation (0.8 leading…0.8 lagging)
Built-in WiFi / PLC communication
Support zero export function
Module level monitoring and control
Remote firmware upgrades, parameter configuration, and fault analysis
Product Parameters
-
X1-Micro 1875 G2-
PV INPUT
Commonly used module power per input 360 ~ 600+ W MPPT voltage range 22 ~ 60 V Number of MPP. trackers/strings per MPPT 4 / 1 -
AC OUTPUT
Rated AC output power 1875 VA -
EFFICIENCY
Max. efficiency 97.00% MPPT efficiency 99.90% -
GENERAL
Ingress protection rating IP67 Dimensions (W /H / D) 317 × 225 × 41 mm Weight 5.2 kg Cooling Concept Natural cooling
-
-
X1-Micro 2000 G2
-
PV INPUT
Commonly used module power per input 400 ~ 670+ W MPPT voltage range 22 ~ 60 V Number of MPP. trackers/strings per MPPT 4 / 1 -
AC OUTPUT
Rated AC output power 2000 VA -
EFFICIENCY
Max. efficiency 97.00% MPPT efficiency 99.90% -
GENERAL
Ingress protection rating IP67 Dimensions (W /H / D) 317 × 225 × 41 mm Weight 5.2 kg Cooling Concept Natural cooling
-
-
X1-Micro 2250 G2
-
PV INPUT
Commonly used module power per input 450 ~ 700+ W MPPT voltage range 22 ~ 60 V Number of MPP. trackers/strings per MPPT 4 / 1 -
AC OUTPUT
Rated AC output power 2250 VA -
EFFICIENCY
Max. efficiency 97.00% MPPT efficiency 99.90% -
GENERAL
Ingress protection rating IP67 Dimensions (W /H / D) 317 × 225 × 41 mm Weight 5.2 kg Cooling Concept Natural cooling
-
-
X1-Micro 2400 G2
-
PV INPUT
Commonly used module power per input 500 ~ 750+ W MPPT voltage range 22 ~ 60 V Number of MPP. trackers/strings per MPPT 4 / 1 -
AC OUTPUT
Rated AC output power 2400 VA -
EFFICIENCY
Max. efficiency 97.00% MPPT efficiency 99.90% -
GENERAL
Ingress protection rating IP67 Dimensions (W /H / D) 317 × 225 × 41 mm Weight 5.2 kg Cooling Concept Natural cooling
-
Data Download
-
Datasheet
-
File nameLanguageFormatSizeLast updateddownload
