Microinverter

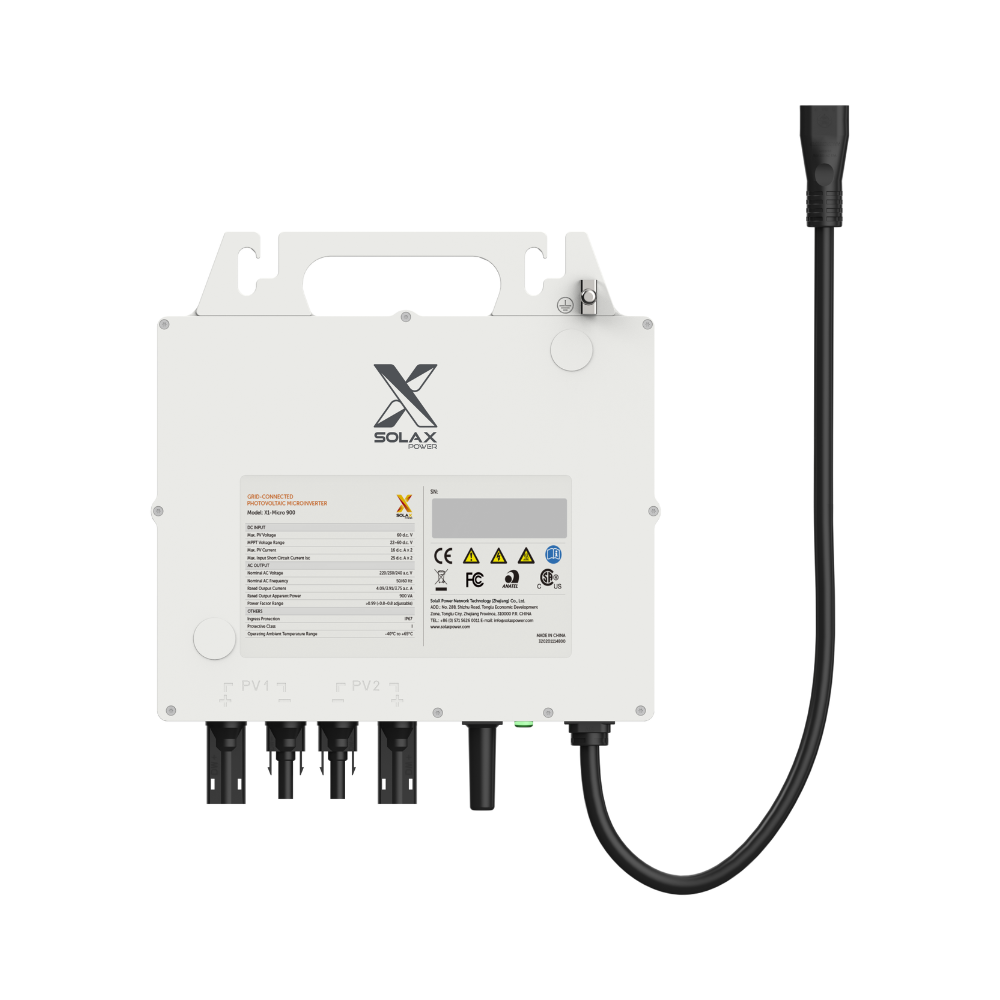

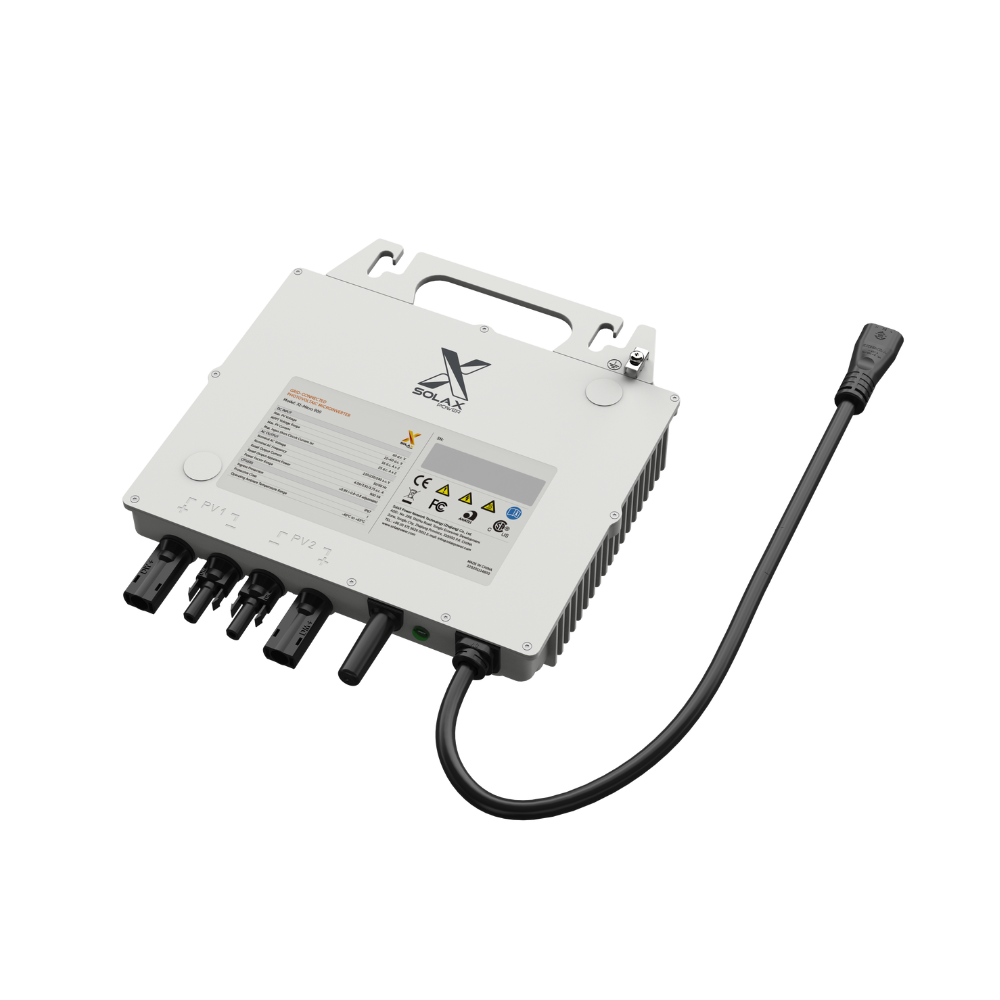

X1-Micro 2 in 1 G2

  • 800 W / 1000 W / 1200 W

This high-efficiency microinverter features a plug-and-play design with built-in WiFi/PLC communication and support for AC coupling. Designed for maximum compatibility, it allows 1-phase microinverter integration into a 3-phase power grid.

Product Advantage

Delivering up to 1200 VA output and 18 A DC input, the system offers dual MPPT tracking and up to 97% efficiency. Built-in safety features—including rapid shutdown, protection relay, and IP67-rated enclosure—provide robust protection in diverse environments.

Contact Us

High Efficiency

  • Max. 1200 VA output power

  • Max. 18 A DC input current

  • Two MPPT channels

  • Max. efficiency up to 97%

Intelligent Design

  • Reactive power regulation (0.8 leading..0.8 lagging)

  • Built-in WiFi communication

  • Support zero export function

  • Module level monitoring and control

  • Remote firmware upgrades, parameter configuration, and fault analysis

Assured Safety

  • Rapid shutdown function

  • Safety protection relay integrated

  • IP67 ingress protection

Flexible Adaptability

  • Plug and play

  • Supporting AC coupling solution

  • Supporting 1-phase microinverter integration into 3-phase power grid

Product Parameters

  • X1-Micro 1200 G2
  • X1-Micro 1000 G2
  • X1-Micro 800 G2
  • X1-Micro 1200 G2
    • PV INPUT
      Commonly used module power per input400~670+ W
      MPPT voltage range22-60 V
      Number of MPP. trackers/strings per MPPT2 / 1


    • AC OUTPUT
      Rated AC output power1200 VA


    • EFFICIENCY
      Max. efficiency97.00%
      MPPT efficiency99.90%


    • GENERAL
      Ingress protection ratingIP67
      Dimensions (W /H / D)234x191 x41 mm
      Weight3.3 kg
      Cooling ConceptNatural cooling


  • X1-Micro 1000 G2
    • PV INPUT
      Commonly used module power per input400~670+W
      MPPT voltage range22-60 V
      Number of MPP. trackers/strings per MPPT2 / 1


    • AC OUTPUT
      Rated AC output power1000 VA


    • EFFICIENCY
      Max. efficiency97.00%
      MPPT efficiency99.90%


    • GENERAL
      Ingress protection ratingIP67
      Dimensions (W /H / D)234x191 x41 mm
      Weight3.3 kg
      Cooling ConceptNatural cooling


  • X1-Micro 800 G2
    • PV INPUT
      Commonly used module power per input320~540+W
      MPPT voltage range22-60 V
      Number of MPP. trackers/strings per MPPT2 / 1


    • AC OUTPUT
      Rated AC output power800 VA


    • EFFICIENCY
      Max. efficiency97.00%
      MPPT efficiency99.90%


    • GENERAL
      Ingress protection ratingIP67
      Dimensions (W /H / D)234x191 x41 mm
      Weight3.3 kg
      Cooling ConceptNatural cooling
