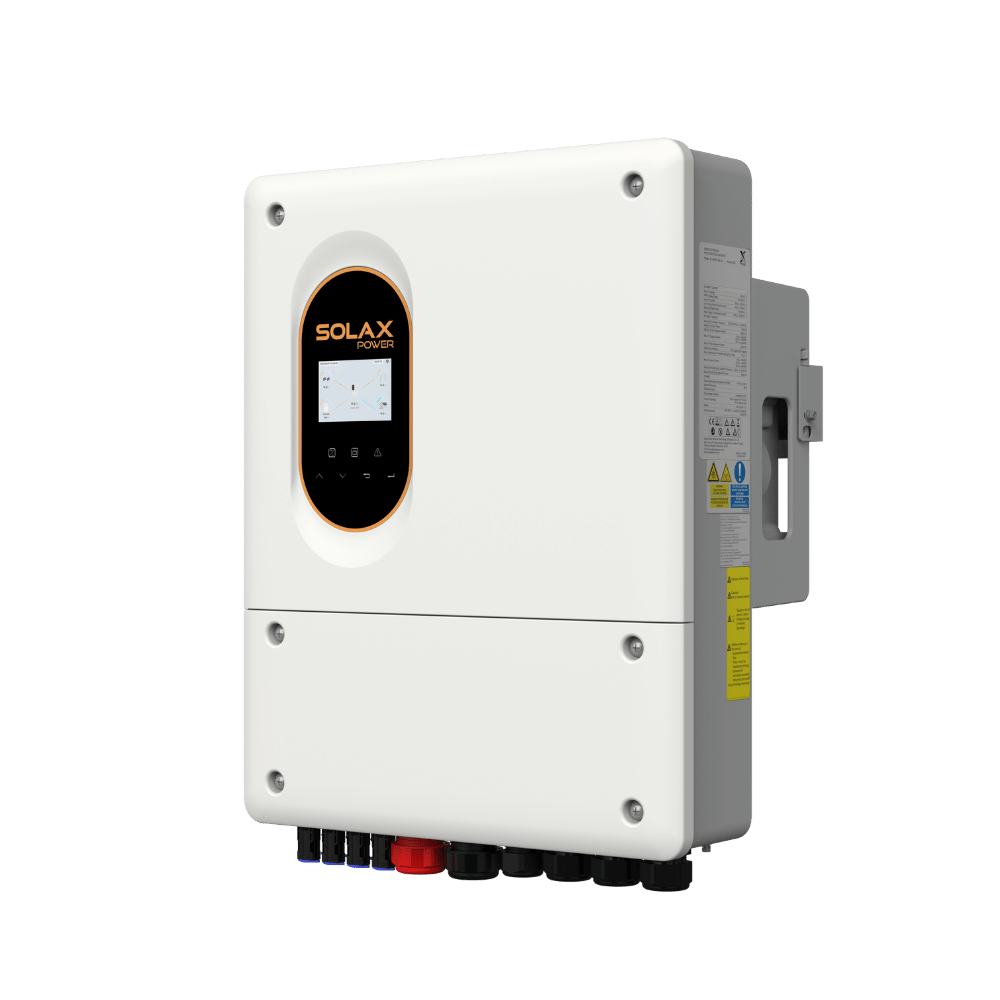

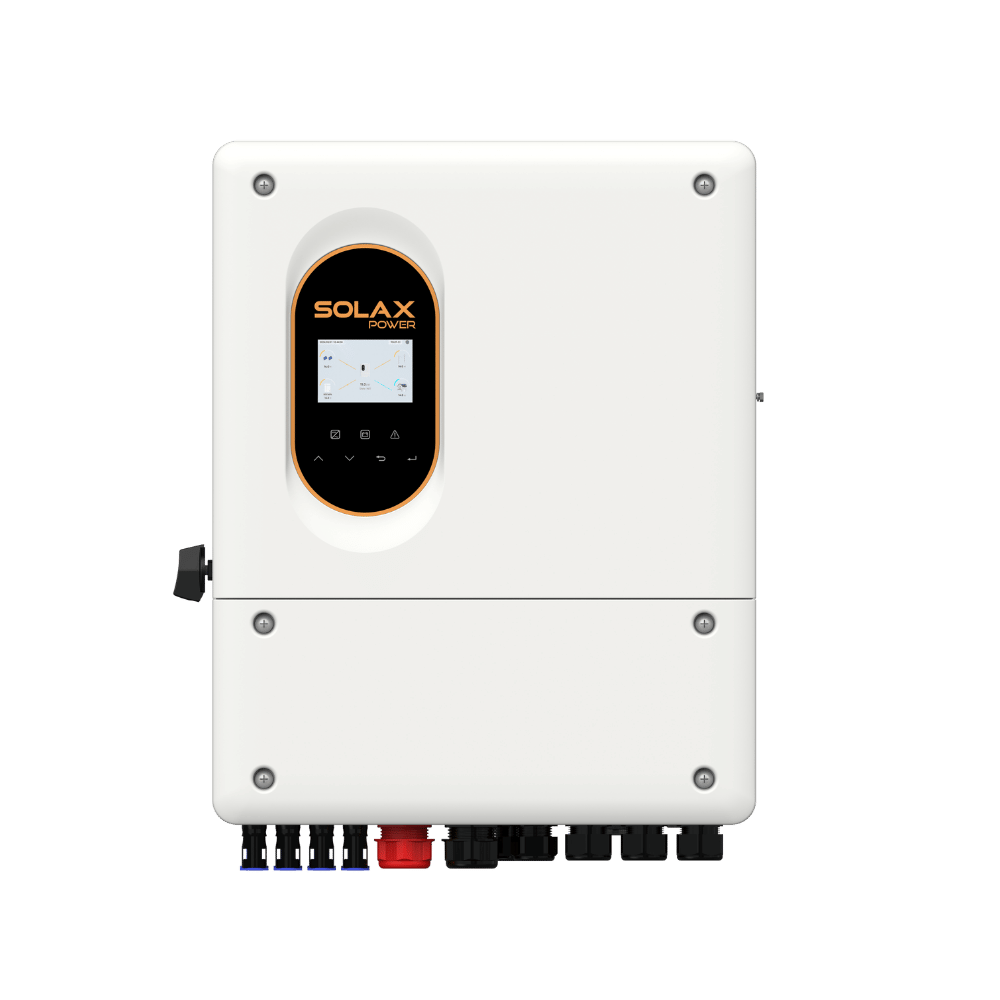

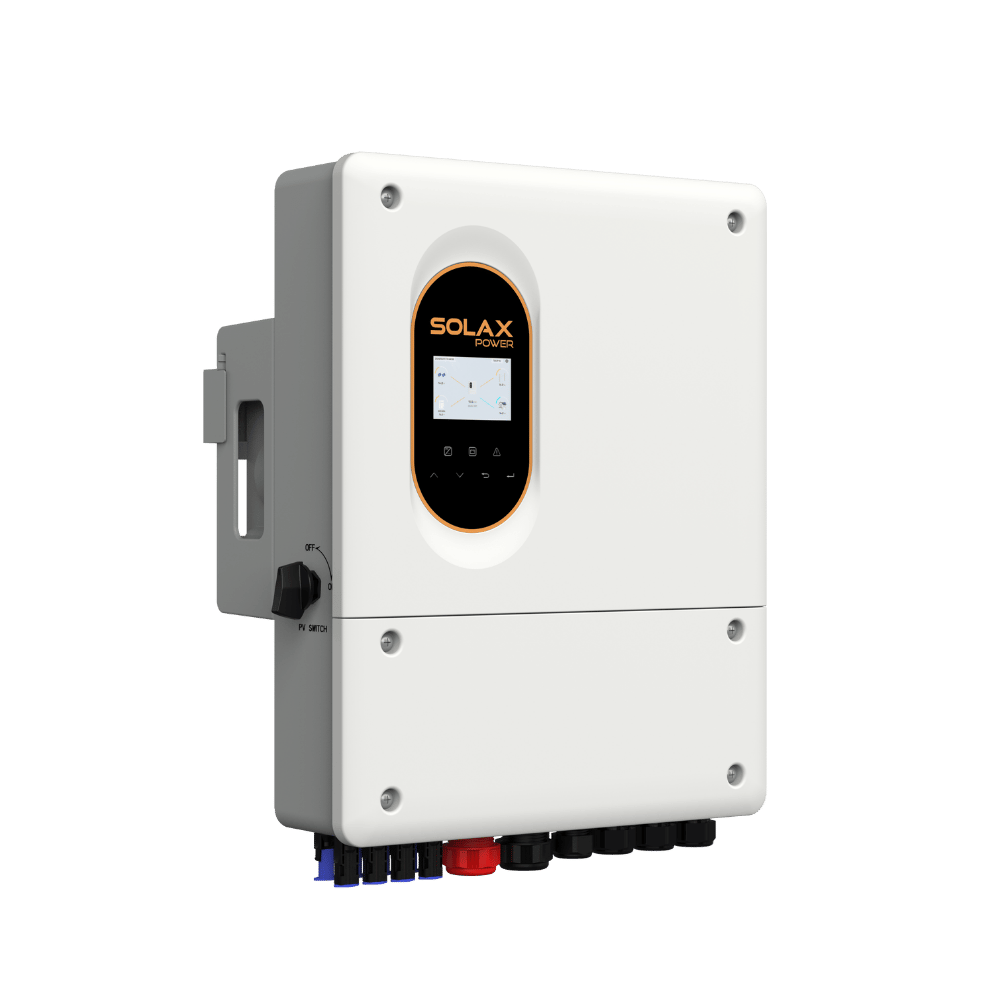

Hybrid Inverter
X1-RENO-LV
-
8kW
X1-RENO-LV supports up to five units in parallel for both on-grid and off-grid scenarios. Whether you're scaling your solar system or integrating with third-party batteries, this hybrid inverter offers a truly adaptable and future-ready energy solution.
Product Advantage
It supports high PV oversizing and delivers stable power even in low-light conditions thanks to its low start-up voltage. With fast UPS-level switching and enhanced EPS output, it ensures uninterrupted power and maximum energy yield in modern home.
Smart Management
Smart loads management
Cloud monitoring and operations & maintenance
Global MPP scan for optimal energy harvest* (Feature to be upgraded in the future)
Flexible Adaptability
Max. 5 pcs parallel for on-grid and off-grid
Compatible with multiple third-party batteries
Micro-grid and generator function for versatile operations* (Feature to be upgraded in the future)
Assured Reliability
Battery terminal temperature detection
IP66 ingress protection
Type II SPD on AC&DC side
AFCI protection (optional)* (Feature to be upgraded in the future)
High Performance
200% oversizing and 200% PV input power
Max. 36A PV input per MPPT
Low start-up voltage for higher energy harvest
Up to 200% EPS output for 10s
Single unit UPS-level switchover time < 4 ms
Product Parameters
-
8kW-
PV INPUT
Max. recommended PV array power 16 kWp Operating voltage range 60 ~ 480 V No. of MPP. trackers / strings per MPPT 2 / (2 / 2) Max. input current per MPPT 36 A / 36 A -
AC INPUT & OUTPUT (ON-GRID)
Rated output power 8 kW Rated AC voltage 220 / 230 / 240 V
-
EPS(OFF-GRID) OUTPUT(WITH BATTERY)
Peak EPS output power 16 kVA 2 times of rated power, 10s Switchover time <4 ms -
GENERAL
Ingress protection IP66 Dimensions (W /H / D) 420 × 528.4 × 209mm Net Weight 26.3kg
-
