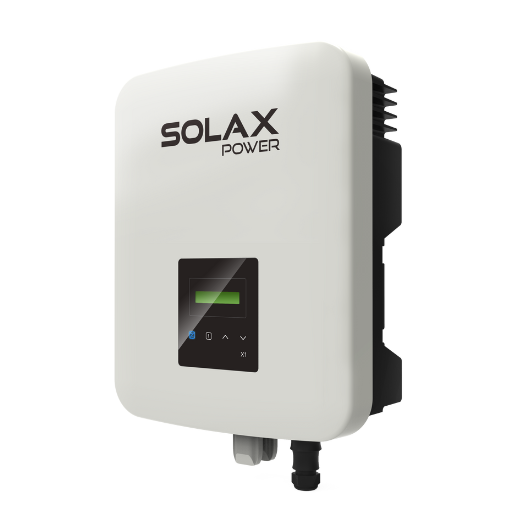

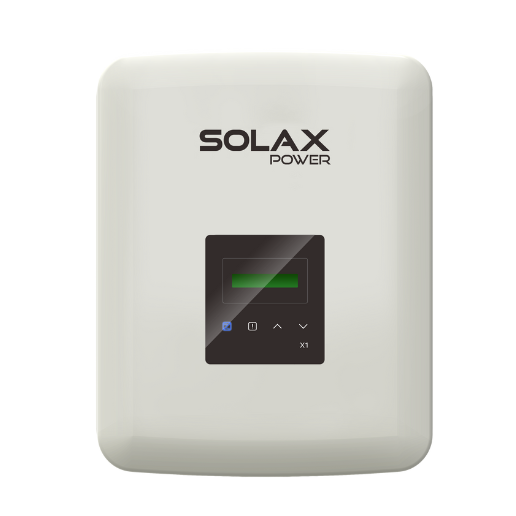

Single Phase Inverter

X1-BOOST G3

3kW / 3.3kW / 3.6kW / 4.2kW / 4.6kW / 5kW / 5.5kW / 6kW

Designed for home solar systems, the SolaX X1-BOOST G3 is easy to install and has a built-in export control that both simplifies installation and ensures compliance with local grid requirements.

Data Download

Product Advantage

The X1-BOOST G3 supports 150% PV oversizing, 14A input per string, and a maximum PV input voltage of 600V. Designed for harsh environments, it operates across -25°C to +60°C and includes safety features like over-temperature protection.

Superior Performance

150% oversizing and 110% overloading
DC input 14A per string

User Friendly

24H monitoring and maintenance (Optional)
Easy to install and set up

Safety Reliability

AC/DC built-in Type III SPD (Optional)
Over-temperature protection
Export control function integrated

Product Parameters

X1-3.0-T-D(L) / X1-3.0-T-N(L)
X1-3.3-T-D(L) / X1-3.3-T-N(L)
X1-3.6-T-D(L) / X1-3.6-T-N(L)
X1-4.2-T-D(L) / X1-4.2-T-N(L)
X1-4.6-T-D(L) / X1-4.6-T-N(L)
X1-5.0-T-D(L) / X1-5.0-T-N(L)
X1-5.5K-T-D(L) / X1-5.5K-T-N(L)
X1-6.0K-T-D(L) / X1-6.0K-T-N(L)

X1-3.0-T-D(L) / X1-3.0-T-N(L)
- DC INPUT

  Max. PV array input power [Wp] 4500
  MPP tracker voltage range [V] 70 ~ 580
  No. of MPP trackers / Strings per MPP tracker 2/1
- AC OUTPUT

  Rated AC output power [W] 3000
  Nominal AC voltage/ AC voltage range [V]
  220/230/240; 180~280
- GENERAL

  Ingress protection IP66
  Dimensions (W /H / D)[mm]
  341.5 × 430 × 143
  Net Weight[kg] 13.5
X1-3.3-T-D(L) / X1-3.3-T-N(L)
- DC INPUT

  Max. PV array input power [Wp] 4950
  MPP tracker voltage range [V] 70 ~ 580
  No. of MPP trackers / Strings per MPP tracker 2/1
- AC OUTPUT

  Rated AC output power [W] 3300
  Nominal AC voltage/ AC voltage range [V]
  220/230/240; 180~280
- GENERAL

  Ingress protection IP66
  Dimensions (W /H / D)[mm]
  341.5 × 430 × 143
  Net Weight[kg] 13.5
X1-3.6-T-D(L) / X1-3.6-T-N(L)
- DC INPUT

  Max. PV array input power [Wp] 5400
  MPP tracker voltage range [V] 70 ~ 580
  No. of MPP trackers / Strings per MPP tracker 2/1
- AC OUTPUT

  Rated AC output power [W] 3680
  Nominal AC voltage/ AC voltage range [V]
  220/230/240; 180~280
- GENERAL

  Ingress protection IP66
  Dimensions (W /H / D)[mm]
  341.5 × 430 × 143
  Net Weight[kg] 13.5
X1-4.2-T-D(L) / X1-4.2-T-N(L)
- DC INPUT

  Max. PV array input power [Wp] 6300
  MPP tracker voltage range [V] 70 ~ 580
  No. of MPP trackers / Strings per MPP tracker 2/1
- AC OUTPUT

  Rated AC output power [W] 4200
  Nominal AC voltage/ AC voltage range [V]
  220/230/240; 180~280
- GENERAL

  Ingress protection IP66
  Dimensions (W /H / D)[mm]
  341.5 × 430 × 143
  Net Weight[kg] 15
X1-4.6-T-D(L) / X1-4.6-T-N(L)
- DC INPUT

  Max. PV array input power [Wp] 6900
  MPP tracker voltage range [V] 70 ~ 580
  No. of MPP trackers / Strings per MPP tracker 2/1
- AC OUTPUT

  Rated AC output power [W] 4600
  Nominal AC voltage/ AC voltage range [V]
  220/230/240; 180~280
- GENERAL

  Ingress protection IP66
  Dimensions (W /H / D)[mm]
  341.5 × 430 × 143
  Net Weight[kg] 15
X1-5.0-T-D(L) / X1-5.0-T-N(L)
- DC INPUT

  Max. PV array input power [Wp] 7500
  MPP tracker voltage range [V] 70 ~ 580
  No. of MPP trackers / Strings per MPP tracker 2/1
- AC OUTPUT

  Rated AC output power [W] 5000
  Nominal AC voltage/ AC voltage range [V]
  220/230/240; 180~280
- GENERAL

  Ingress protection IP66
  Dimensions (W /H / D)[mm]
  341.5 × 430 × 143
  Net Weight[kg] 15
X1-5.5K-T-D(L) / X1-5.5K-T-N(L)
- DC INPUT

  Max. PV array input power [Wp] 8250
  MPP tracker voltage range [V] 70 ~ 580
  No. of MPP trackers / Strings per MPP tracker 2/1
- AC OUTPUT

  Rated AC output power [W] 5500
  Nominal AC voltage/ AC voltage range [V]
  220/230/240; 180~280
- GENERAL

  Ingress protection IP66
  Dimensions (W /H / D)[mm]
  341.5 × 430 × 143
  Net Weight[kg] 15
X1-6.0K-T-D(L) / X1-6.0K-T-N(L)
- DC INPUT

  Max. PV array input power [Wp] 9000
  MPP tracker voltage range [V] 70 ~ 580
  No. of MPP trackers / Strings per MPP tracker 2/1
- AC OUTPUT

  Rated AC output power [W] 6000
  Nominal AC voltage/ AC voltage range [V]
  220/230/240; 180~280
- GENERAL

  Ingress protection IP66
  Dimensions (W /H / D)[mm]
  341.5 × 430 × 143
  Net Weight[kg] 15
