C & I Batteries

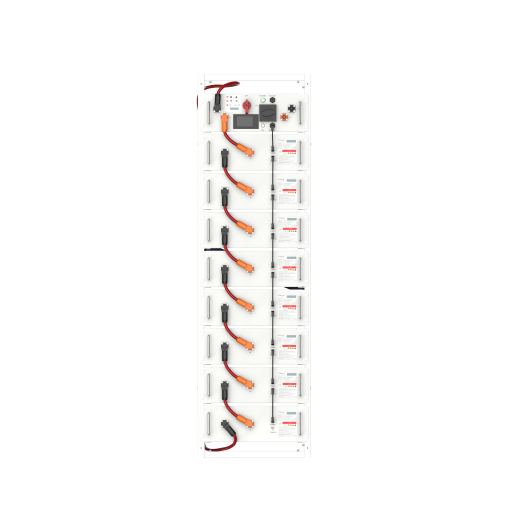

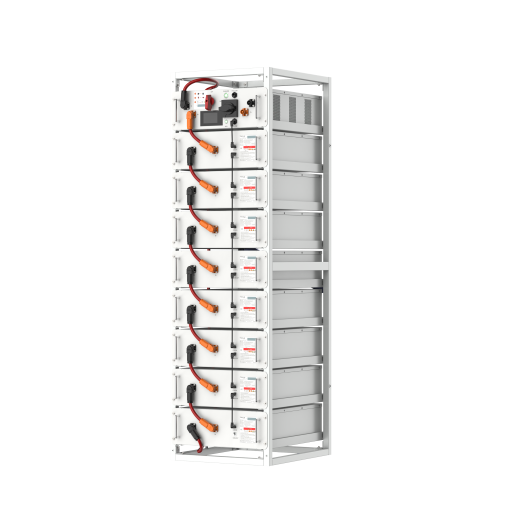

TSYS-HR76
-
7.68 kWh | LFP 150Ah
Product Advantage
The TSYS-HR76 is built for flexibility and reliable operation, offering an operating temperature range of 0°C to 55°C for charging and -20°C to 55°C for discharging. Its scalable design allows for 5 to 14 modules per set, delivering a nominal voltage range from 256.0 V to 716.8 V. With rated power spanning from 23.0 kW to 64.5 kW, it ensures adaptable performance across diverse commercial and industrial energy storage applications.
Efficiency
1C continuous operation >30 minutes
Embedded installation design for rapid deployment
Modular architecture for streamlined maintenance
Intelligence
Automated charge/discharge management
Multi-level protection: overcharge, over-discharge, thermal extremes
Reliability
High-safety LFP battery
Extended cycle life for long-term performance
Flexible Configuration
Scalable battery cluster (5–14 modules per set)
Remote firmware upgrade support
Full compatibility with SolaX inverters
Product Parameters
-
TSYS-HR76-
BATTERY MODULE
Battery type LFP Nominal energy 7.68 kWh Rated capacity 150 Ah Nominal voltage 51.2 V Dimensions (W x H x D) 450 × 180 × 580 mm Weight 60 kg -
GENERAL
Operating temperature range 0 ~ 55°C (charge)
-20 ~ 55°C (discharge)
Installation type Rack mounting Safety IEC 62619, IEC 60730, IEC 63056, IEC 61000
-
Data Download
-
Datasheet
-
File nameLanguageFormatSizeLast updateddownload
