T-BAT H 10.0
T-BAT H 15.0
T-BAT H 20.0
NEMA 4X protection class for reliable operation
Safe LiFePO4 battery type
Compact design for small spaces
Easy installation with modular stacking
Long life cycle
95% battery roundtrip efficiency
Real-time tracking and monitoring
Remote diagnosis and control

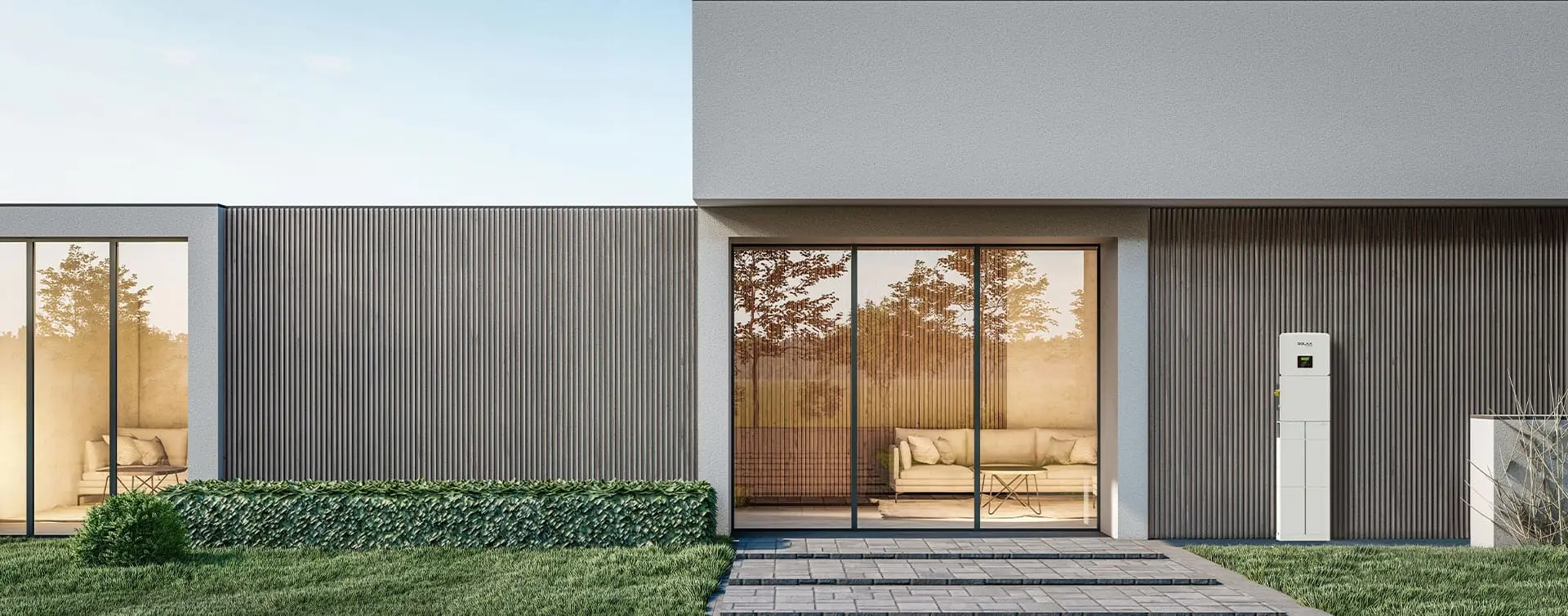

The T-BAT-SYS-HV-5.0 is an advanced and highly reliable energy storage system, featuring cutting-edge technology for effortless control. With an impressive battery roundtrip efficiency of 95% and a cycle life surpassing 6000 cycles, it delivers top-notch performance. With secondary protection and NEMA 4X protection class, it ensures both safety and dependability. The system can be conveniently mounted on the floor or wall, making it a perfect fit for any space. Experience the power of our slim and modular design, delivering optimal energy solutions with ease.
| Component | TBMS-MC60060(BMS)+2*TP-HS50(Battery) |
| Usable capacity | 9kWh |
| Nominal voltage | 102.4V |
| Max. charge/discharge current | 54A |
| Max. operating altitude | 9843ft /3000m |
| Dimensions (W*H*D) | TBMS-MC60060(BMS): 33.5*5.2*5.8in / 850*133*148mm |
| 2*TP-HS50(Battery): 33.5*23.6*5.8in / 850*600*148mm | |
| Base: 33.5*2.2*5.8in / 850*55*148mm | |
| Net weight | TBMS-MC60060(BMS): 22lb / 10kg |
| 2*TP-HS50(Battery): 238lb / 108kg |
| Component | TBMS-MC60060(BMS)+3*TP-HS50(Battery) |
| Usable capacity | 13.5kWh |
| Nominal voltage | 153.6V |
| Max. charge/discharge current | 54A |
| Max. operating altitude | 9843ft /3000m |
| Dimensions (W*H*D) | TBMS-MC60060(BMS): 33.5*5.2*5.8in / 850*133*148mm |
| 3*TP-HS50(Battery): 33.5*35.4*5.8in / 850*900*148mm | |
| Base: 33.5*2.2*5.8in / 850*55*148mm | |
| Net weight | TBMS-MC60060(BMS): 22lb / 10kg |
| 3*TP-HS50(Battery): 357lb / 162kg |
| Component | TBMS-MC60060(BMS)+4*TP-HS50(Battery) |
| Usable capacity | 18kWh |
| Nominal voltage | 204.8V |
| Max. charge/discharge current | 54A |
| Max. operating altitude | 9843ft /3000m |
| Dimensions (W*H*D) | TBMS-MC60060(BMS): 33.5*5.2*5.8in / 850*133*148mm |
| 4*TP-HS50(Battery): 33.5*47.2*5.8in / 850*1200*148mm | |
| Base: 33.5*2.2*5.8in / 850*55*148mm | |
| Net weight | TBMS-MC60060(BMS): 22lb / 10kg |
| 4*TP-HS50(Battery): 476lb / 216kg |
